AccuSine+ current transformer - 5000/5 - Rectangular Split Core - 168.3x279.4mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PowerLogic™ AccuSine PFV+ |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.8 kg |
Shipping & availability
When can PCSPCTFCL50005R411 be shipped?
PCSPCTFCL50005R411 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PCSPCTFCL50005R411 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PCSPCTFCL50005R411 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PCSPCTFCL50005R411, subject to availability and destination.

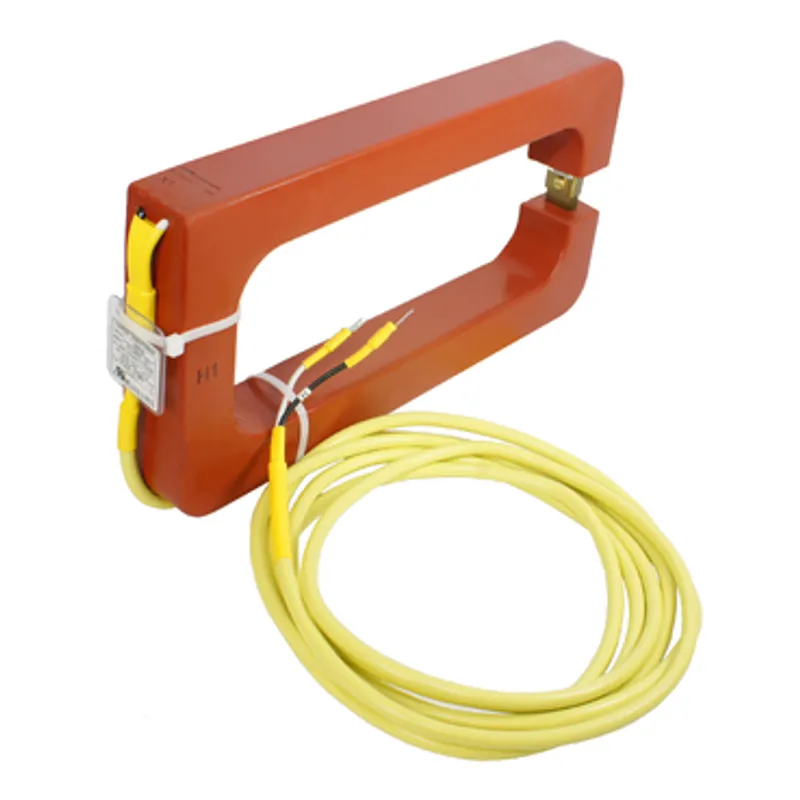

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 5000A and a secondary rating of 5A. The opening size of this coil is 101.6mm by 279.4mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Specifications
Specifications
| Range | AccuSine |
| Product or component type | Current transformer |
| Accessory / separate part category | Measurement accessory |
| Range compatibility | AccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller |
| Current transformer type | Split core |
| Shape | Rectangular |
| Secondary current | 5 A |
| Current transformer ratio | 5000/5 |
| Electrical connection | Flying lead: 3.65 m720 V |
| Input impedance | 1.8 Ohm |
| [In] rated current | 5000 A |
| thermal factor | 1.25 at 30 °C, 1 at 55 °C |
| Network frequency | 50...400 Hz |
| Measurement accuracy | 1 % |
| Accuracy class | Class 1 |
| [Ue] rated operational voltage | < 720 V AC 50...400 Hz |
| [Uimp] rated impulse withstand voltage | 10 kV (50 µs) |
| Width | Outside: 165.1 mm, Inner: 101.6 mm |
| Height | Outside: 339.7 mm, Inner: 279.4 mm |
| Depth | Outside : 38.1 mm |
| Net weight | 2.8 kg |
| Standards | IEC 60044-1 |
| Product certifications | CE, cURus |
| Ambient air temperature for operation | -45…55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.2 cm |
| Package 1 Width | 45.8 cm |
| Package 1 Length | 45.8 cm |
| Package 1 Weight | 2.858 kg |
| Warranty (in months) | 18 |
