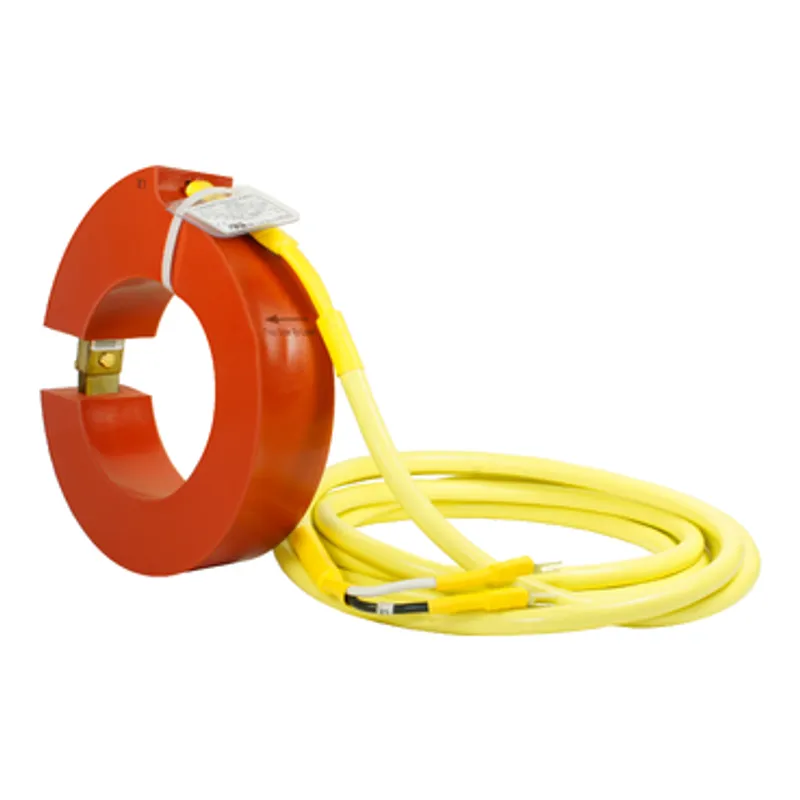

AccuSine+ current transformer - 2500/5 - Round Split Core - diam: 279.4mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PowerLogic™ AccuSine PFV+ |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.4 kg |
Shipping & availability
When can PCSPCTFCL2500511 be shipped?
PCSPCTFCL2500511 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PCSPCTFCL2500511 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PCSPCTFCL2500511 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PCSPCTFCL2500511, subject to availability and destination.
This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 2500A and a secondary rating of 5A. The inner diameter of this coil is 279.4mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Specifications
Specifications
| Range | AccuSine |
| Product or component type | Current transformer |
| Accessory / separate part category | Measurement accessory |
| Range compatibility | AccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller |
| Current transformer type | Split core |
| Shape | Round |
| Secondary current | 5 A |
| Current transformer ratio | 2500/5 |
| Electrical connection | Flying lead: 3.65 m720 V |
| Input impedance | 1.4 Ohm |
| [In] rated current | 2500 A |
| thermal factor | 1.25 at 30 °C, 1 at 55 °C |
| Network frequency | 50...400 Hz |
| Measurement accuracy | 1 % |
| Accuracy class | Class 1 |
| [Ue] rated operational voltage | < 720 V AC 50...400 Hz |
| [Uimp] rated impulse withstand voltage | 10 kV (50 µs) |
| Depth | Outside : 38.1 mm |
| Diameter | 279.4 mm inner:, 342.9 mm outer: |
| Net weight | 3.4 kg |
| Standards | IEC 60044-1 |
| Product certifications | cURus, CE |
| Ambient air temperature for operation | -45…55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.200 cm |
| Package 1 Width | 45.800 cm |
| Package 1 Length | 45.800 cm |
| Package 1 Weight | 3.402 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 17.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.440 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 9 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 36.791 kg |
| Warranty (in months) | 18 |
