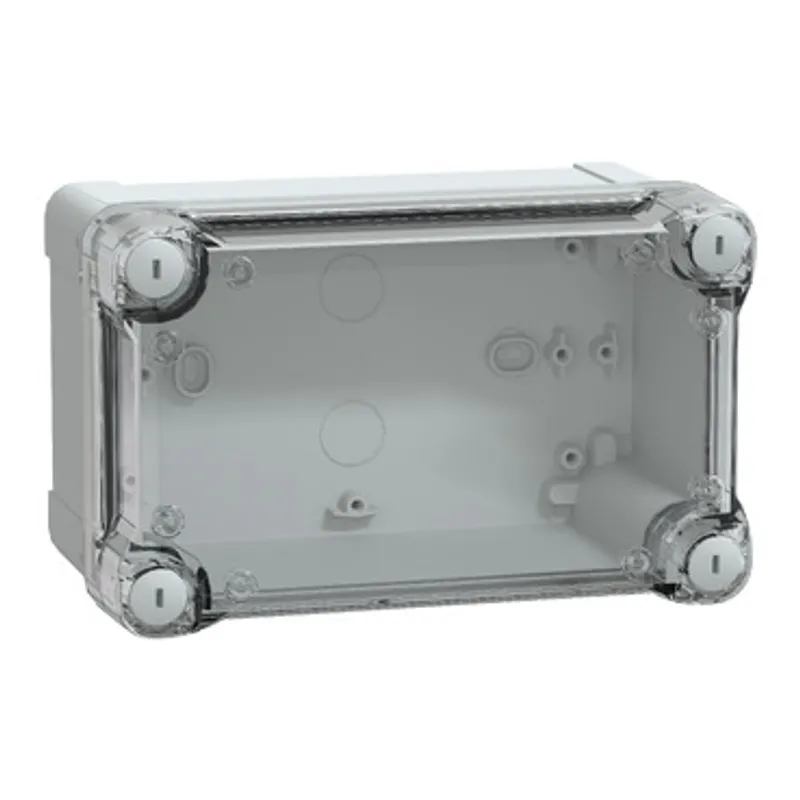

ABS industrial box, PanelSeT TBS, 121x105x192mm, int. 105x100x175mm, high transparent cover, IP66, IK07, RAL 7035
MPN: NSYTBS191210HT · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Enclosures |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.45 kg |
Shipping & availability
When can NSYTBS191210HT be shipped?
NSYTBS191210HT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTBS191210HT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTBS191210HT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBS191210HT, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Device application | Multi-purpose |
| Category | Industrial box |

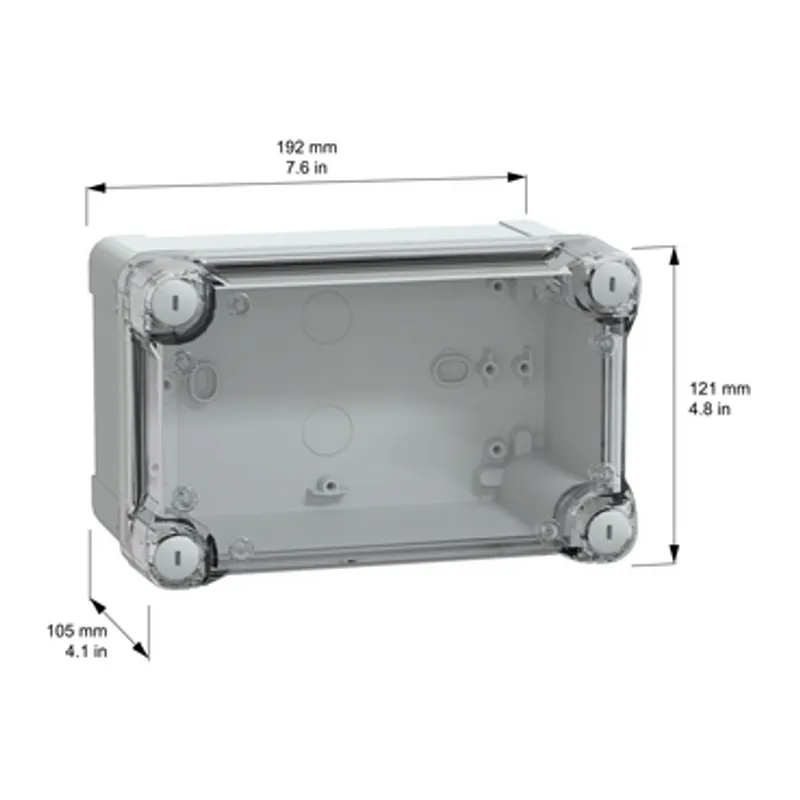

| Height | 192 mm |
| Width | 121 mm |
| Depth | 105 mm |
| Internal height | 175 mm |
| Internal width | 105 mm |
| Internal depth | 100 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 2 |
| Body type | One piece moulded |
| Type of front cover | High transparent cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035), Transparent |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 0.45 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.500 cm |
| Package 1 Width | 12.100 cm |
| Package 1 Length | 19.200 cm |
| Package 1 Weight | 440.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 22 |
| Package 2 Height | 42.500 cm |
| Package 2 Width | 40.500 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.680 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 176 |
| Package 3 Height | 95.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 89.000 kg |
| Warranty | 18 months |
