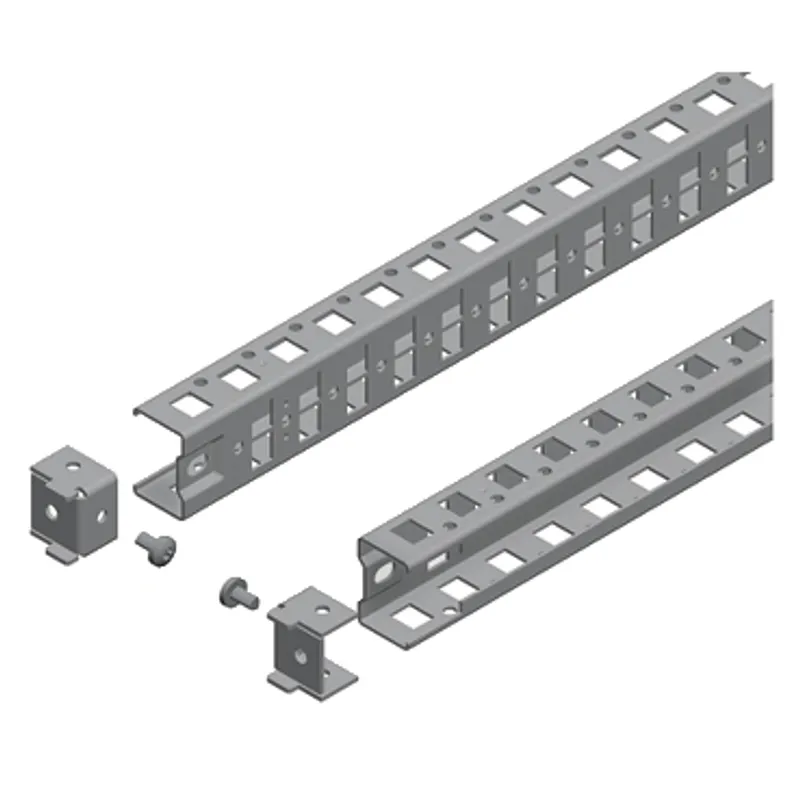

Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W500mm, 1 row, set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 940 kg |
Shipping & availability
When can NSYSUCR4050 be shipped?
NSYSUCR4050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSUCR4050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSUCR4050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSUCR4050, subject to availability and destination.
Universal cross rail made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures with height 500mm Can be fixed on structure of enclosure and between cross rails On SM enclosures fixing by means of adaptation profiles The nominal height is 500mm and useful height is 407mm The width is 40mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 500 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | On structure of enclosure, Between cross rails |
| Mounting support | Adaptation profile, on SM enclosures |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 1 |
| Maximum load | 60 kg |
| Height | Nominal: 500 mm, Useful: 407 mm |
| Width | 40 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 41.000 cm |
| Package 1 Weight | 940.000 g |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 504 |
| Package 2 Height | 73.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 486.760 kg |
| Coverage | Core product |
| Warranty | 18 months |
