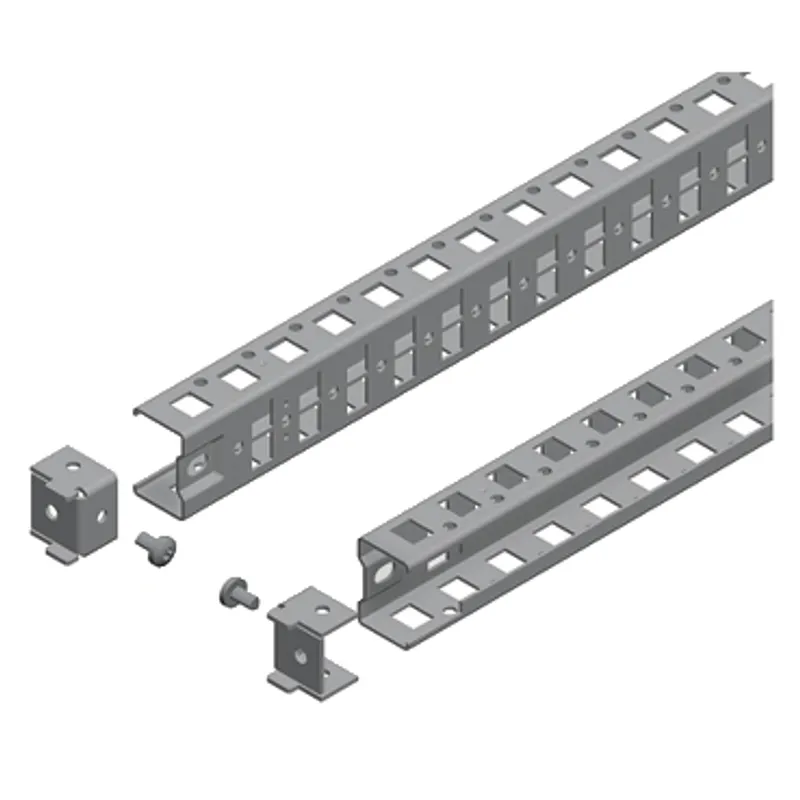

Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W2000mm, 1 row, set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.59 kg |
Shipping & availability
When can NSYSUCR40200 be shipped?
NSYSUCR40200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSUCR40200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSUCR40200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSUCR40200, subject to availability and destination.
Universal cross rail made from zinc coated 1,5mm thick steel for use with Linergy LGY, Linergy LGYE, Linergy BS, Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures with height 2000mm Can be fixed between cross rails and on structure of enclosure On SM enclosures fixing by means of adaptation profiles The nominal height is 2000mm and useful height is 1907mm The width is 40mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 2000 mm |
| Range compatibility | Linergy Linergy LGY, Linergy Linergy LGYE, Linergy Linergy BS, PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | Between cross rails, On structure of enclosure |
| Mounting support | Adaptation profile, on SM enclosures |
| Installation direction | Vertical |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 1 |
| Height | Nominal: 2000 mm, Useful: 1907 mm |
| Width | 40 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 191.000 cm |
| Package 1 Weight | 3.588 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 154 |
| Package 2 Height | 78.000 cm |
| Package 2 Width | 121.000 cm |
| Package 2 Length | 202.000 cm |
| Package 2 Weight | 615.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
