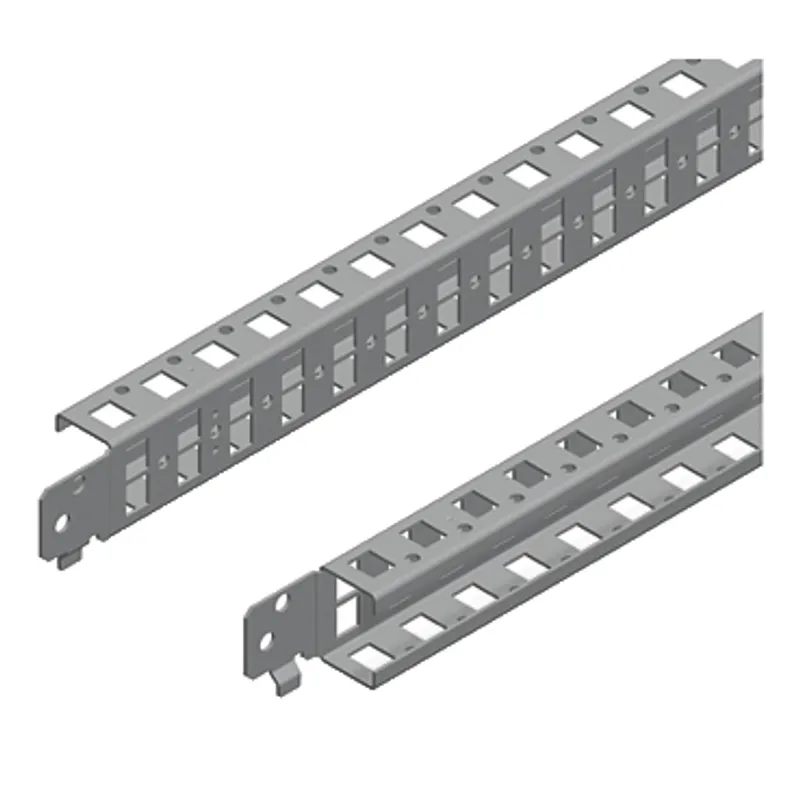

Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1000mm, 1 row, set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.67 kg |
Shipping & availability
When can NSYSQCR40100 be shipped?
NSYSQCR40100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSQCR40100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSQCR40100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSQCR40100, subject to availability and destination.
Quick cross rails made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM and Spacial SFX enclosures Can be fixed between cross rails and on structure of enclosure On SM enclosures fixing by means of adaptation profiles The nominal height is 1000mm and useful height is 910mm The width is 40mm Laterally adjustable with a pitch of 25mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Quick cross rails |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX |
| Mounting location | Between cross rails, On structure of enclosure |
| Mounting support | Adaptation profile, on SM enclosures |
| Device composition | Fixing elements, 2 cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws, Clipped - on structure location |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 1 |
| Maximum load | 30 kg |
| Height | Nominal: 1000 mm, Useful: 910 mm |
| Width | 40 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 96.000 cm |
| Package 1 Weight | 1.672 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 204 |
| Package 2 Height | 70.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 354.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
