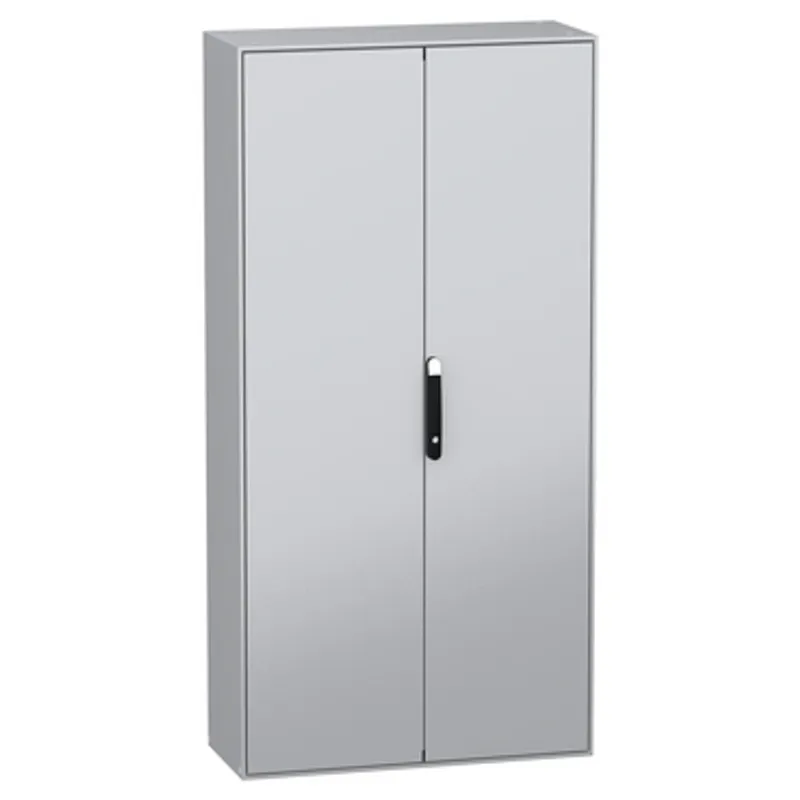

PanelSeT SM compact enclosure with mounting plate - 2000x1000x400 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 144 kg |
Shipping & availability
When can NSYSM2010402DP be shipped?
NSYSM2010402DP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM2010402DP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM2010402DP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM2010402DP, subject to availability and destination.

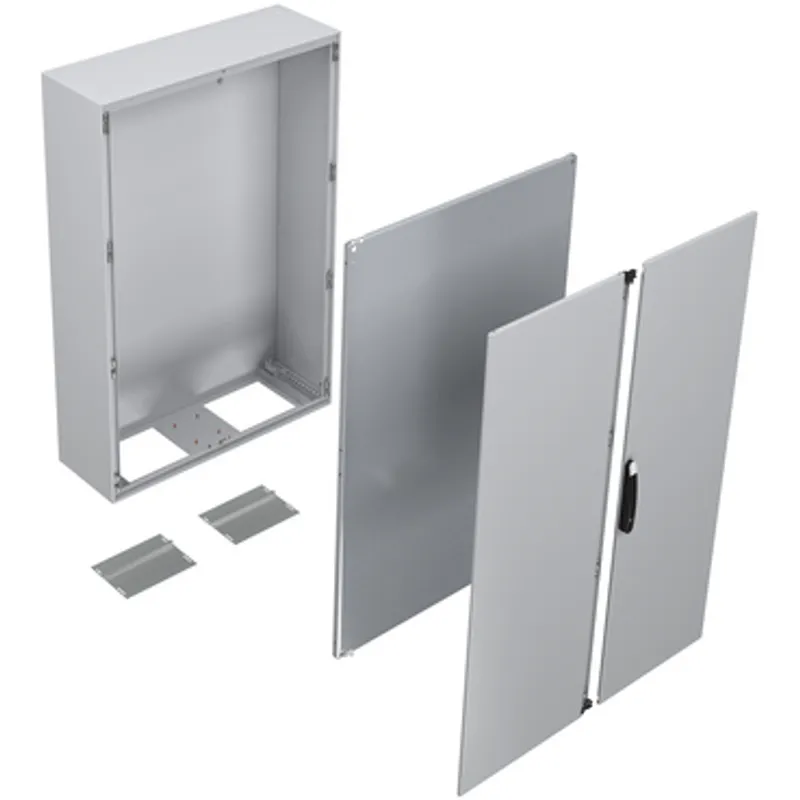

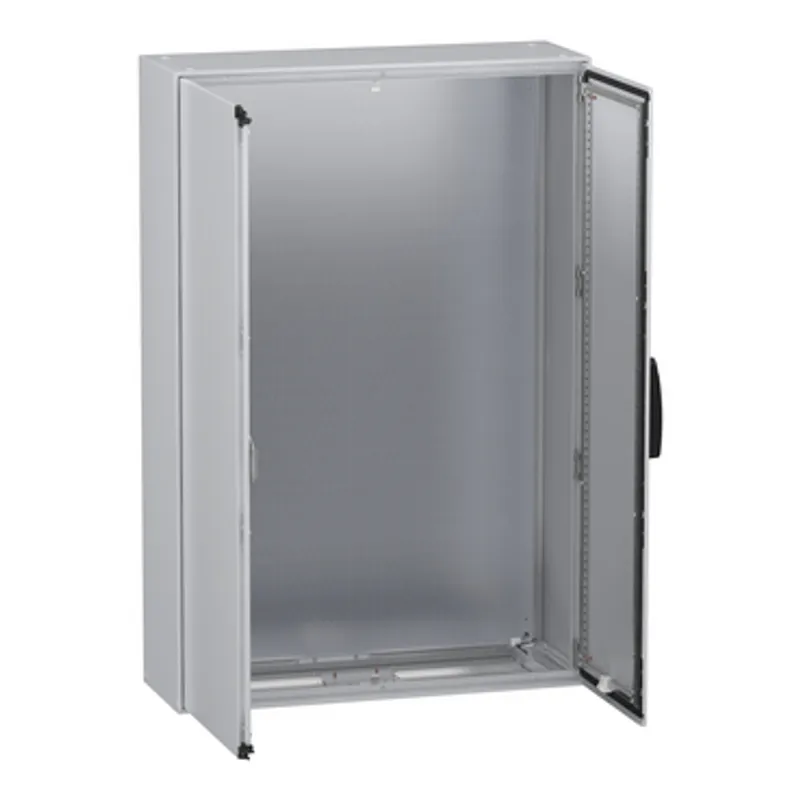

Spacial SM is a multi-purpose, floor-standing steel enclosure with a nominal height, width and depth of 2000mm, 1000mm and 400mm respectively The enclosure is designed for use in harsh environments, it can withstand high impact due to its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, two plain doors, one cable gland plate, four mounting plate brackets, one mounting plate, a blocking system on left door and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert The doors, mounting plate and mounting plate brackets are removable for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket, 1 mounting plate |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

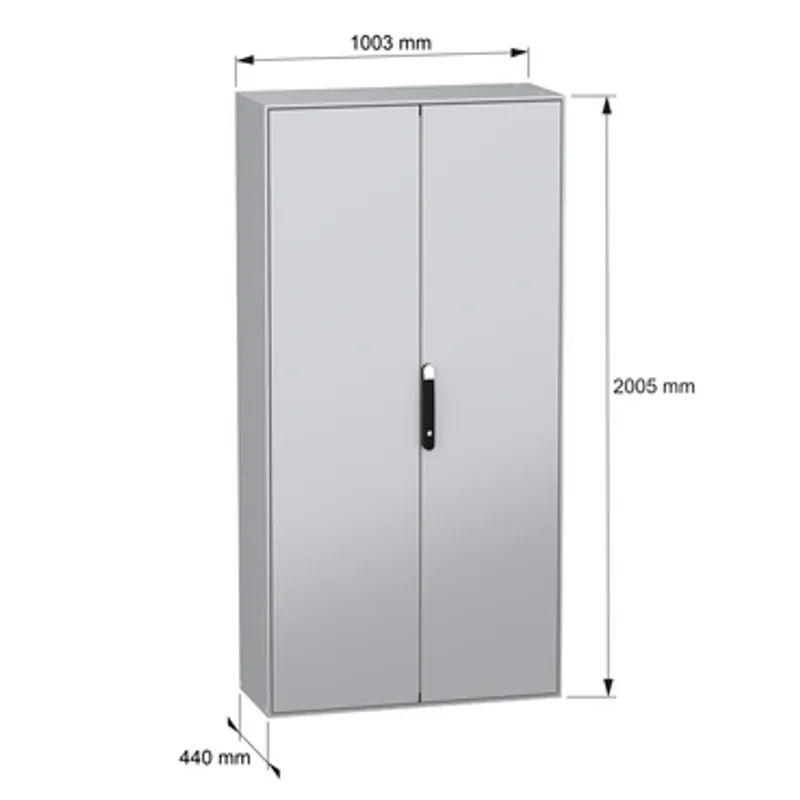

| Enclosure nominal height | 2000 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 2 door(s) |
| Door opening side | Left (120 °), Right (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 144 kg |
| Standards | IEC 62208 |
| Product certifications | UL, BV, DNV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 213.000 cm |
| Package 1 Width | 105.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 146.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 213.000 cm |
| Package 2 Width | 105.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 292.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
