PanelSeT SM compact enclosure with mounting plate - 1800x800x400 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 107 kg |
Shipping & availability
When can NSYSM18840P be shipped?
NSYSM18840P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM18840P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM18840P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM18840P, subject to availability and destination.

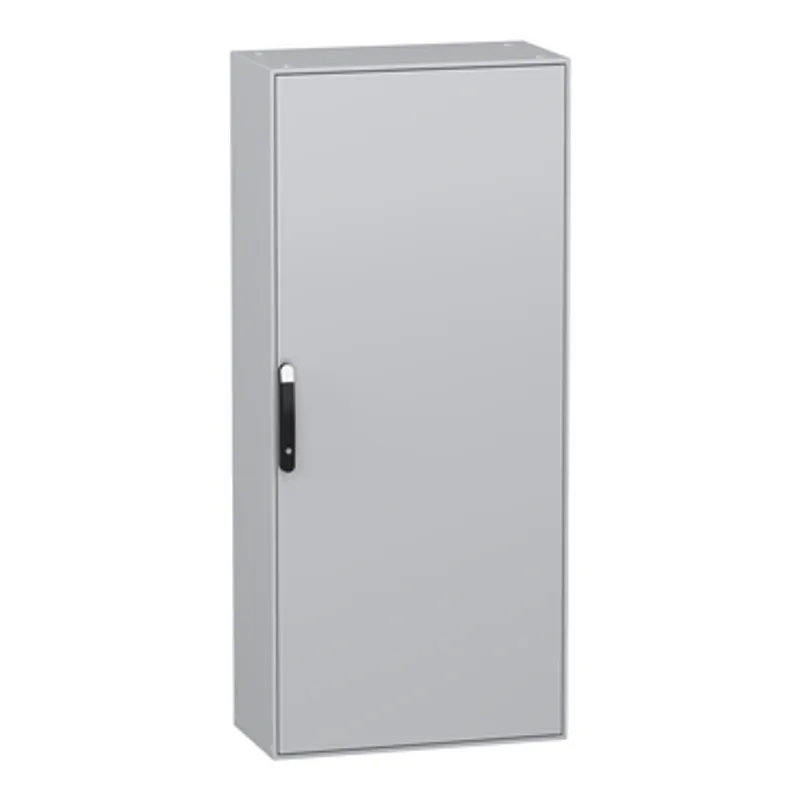

Spacial SM is a multi-purpose steel compact floor-standing enclosure designed for use in harsh environments It is certified by DNV, UL and BV, and it has a high impact resistance with an IK10 rating (IEC62262) as well as a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 1800mm, 800mm and 400mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, a cable gland plate, a plain door, four mounting plate brackets, a mounting plate and a locking system with handle on the door The door can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

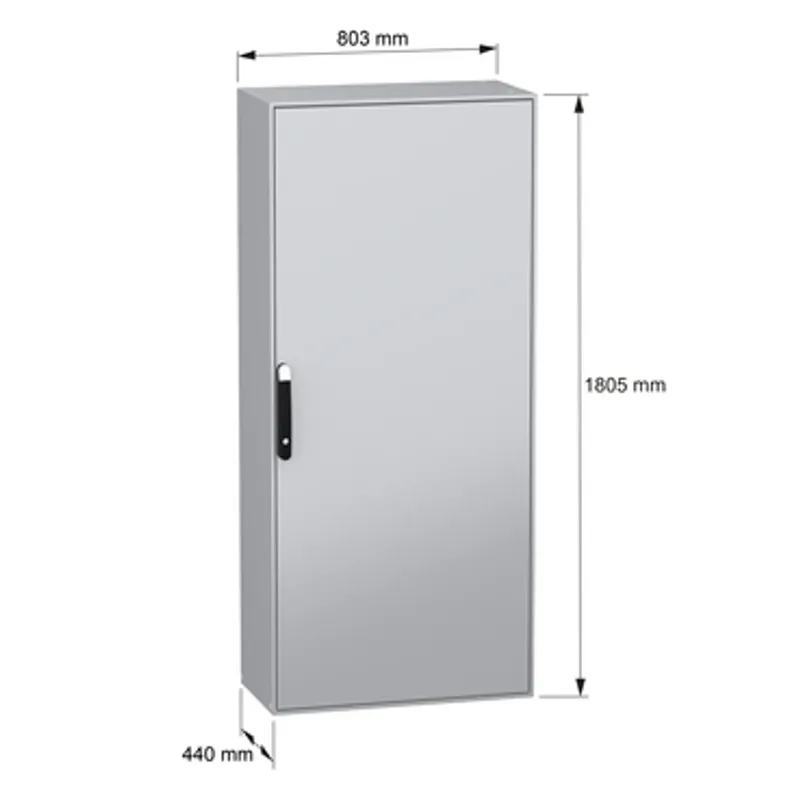

| Enclosure nominal height | 1800 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 107 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, UL, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 193.000 cm |
| Package 1 Width | 85.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 109.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 193.000 cm |
| Package 2 Width | 85.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 218.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
