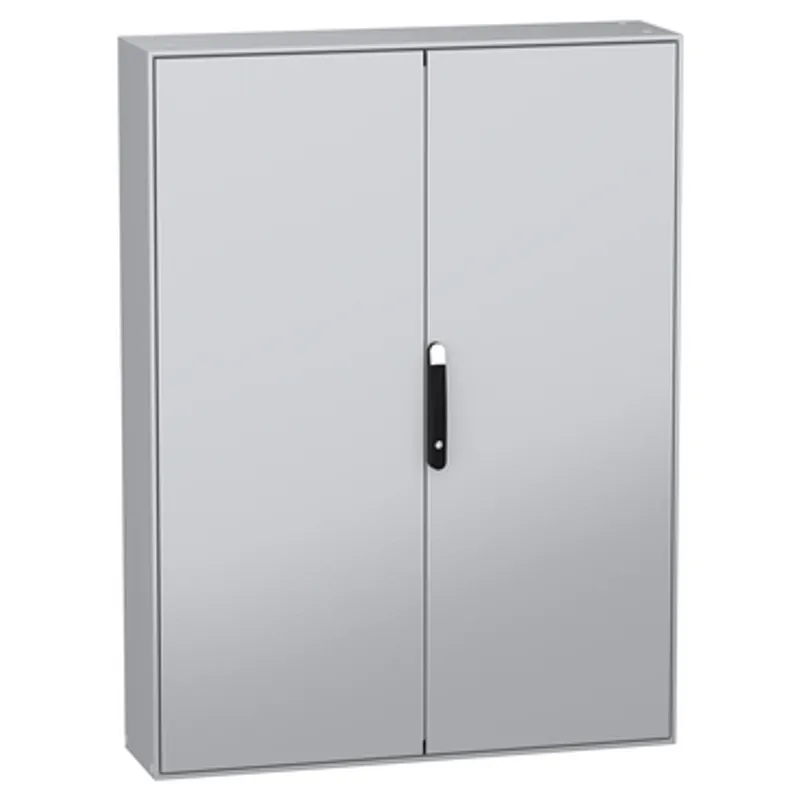

PanelSeT SM compact enclosure with mounting plate - 1600x1200x400 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 138.5 kg |
Shipping & availability
When can NSYSM1612402DP be shipped?
NSYSM1612402DP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM1612402DP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM1612402DP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM1612402DP, subject to availability and destination.

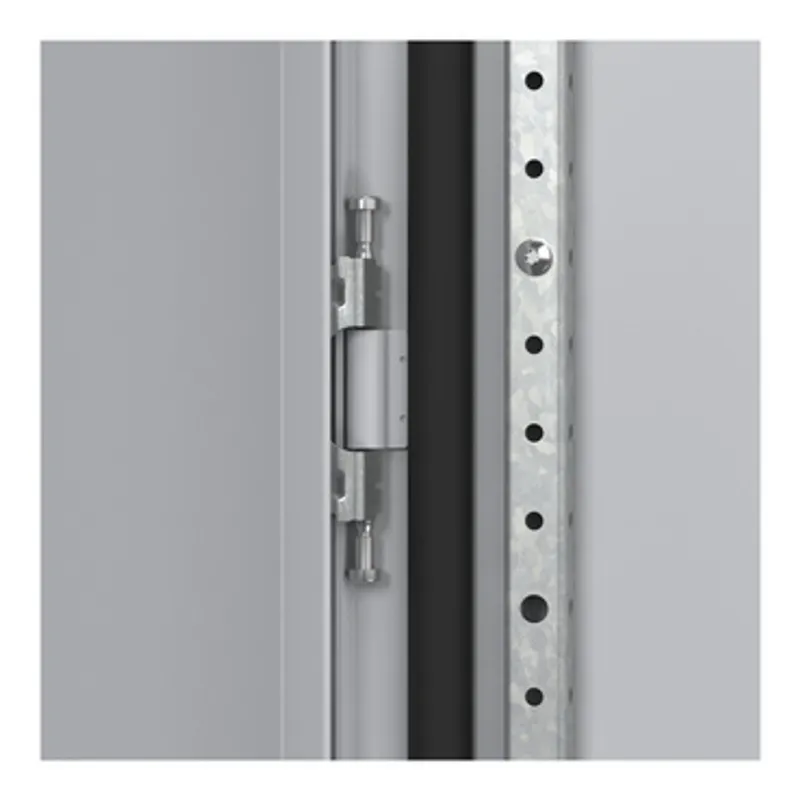

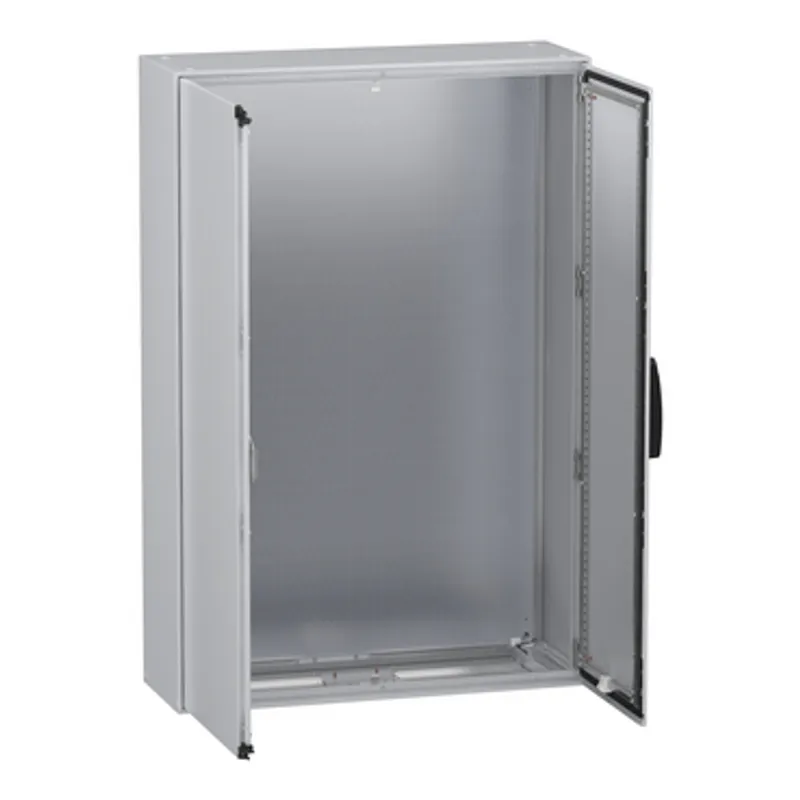

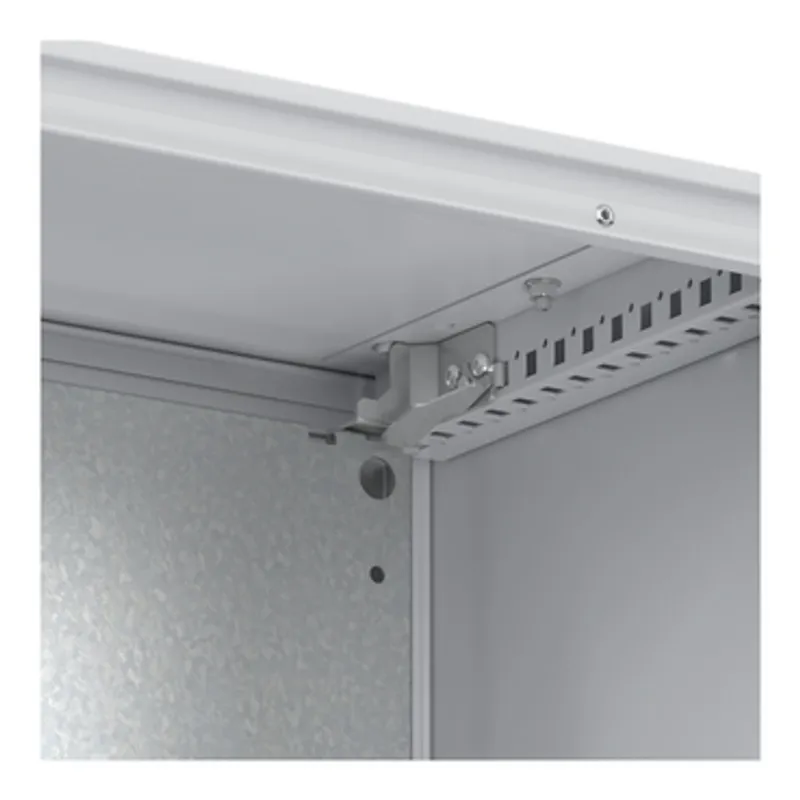

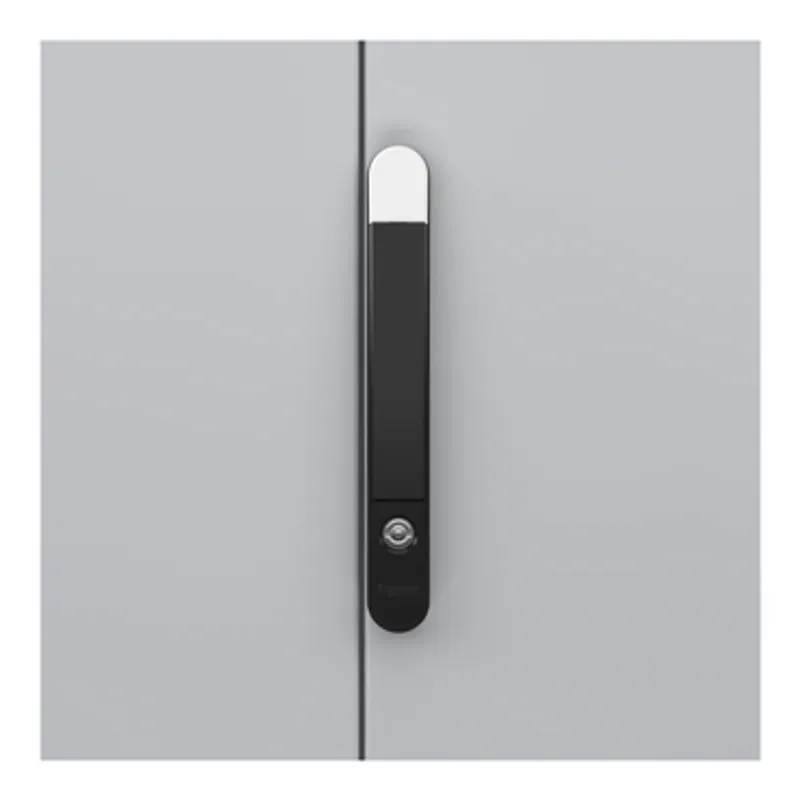

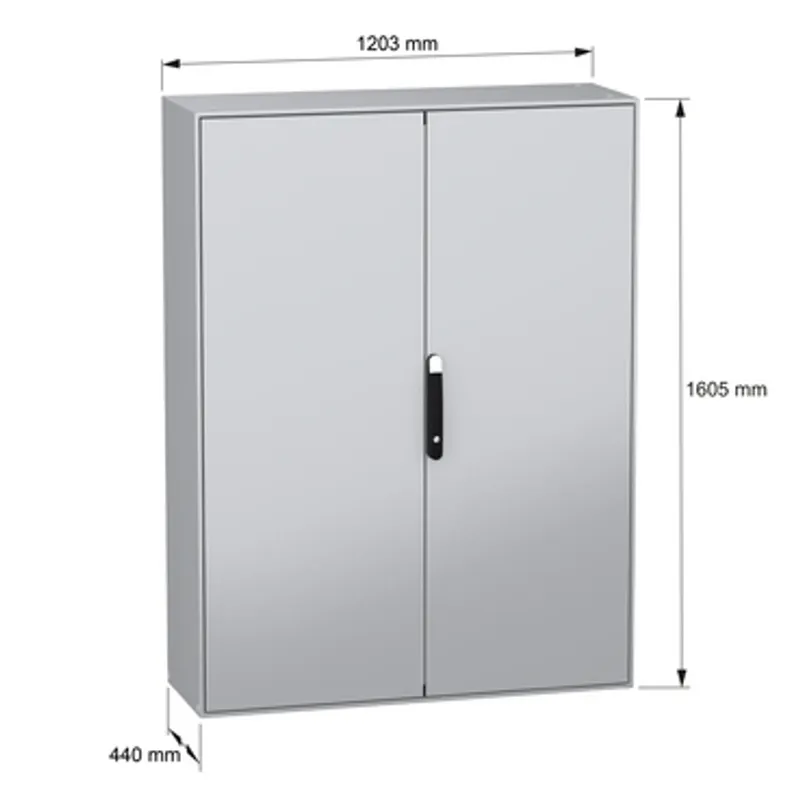

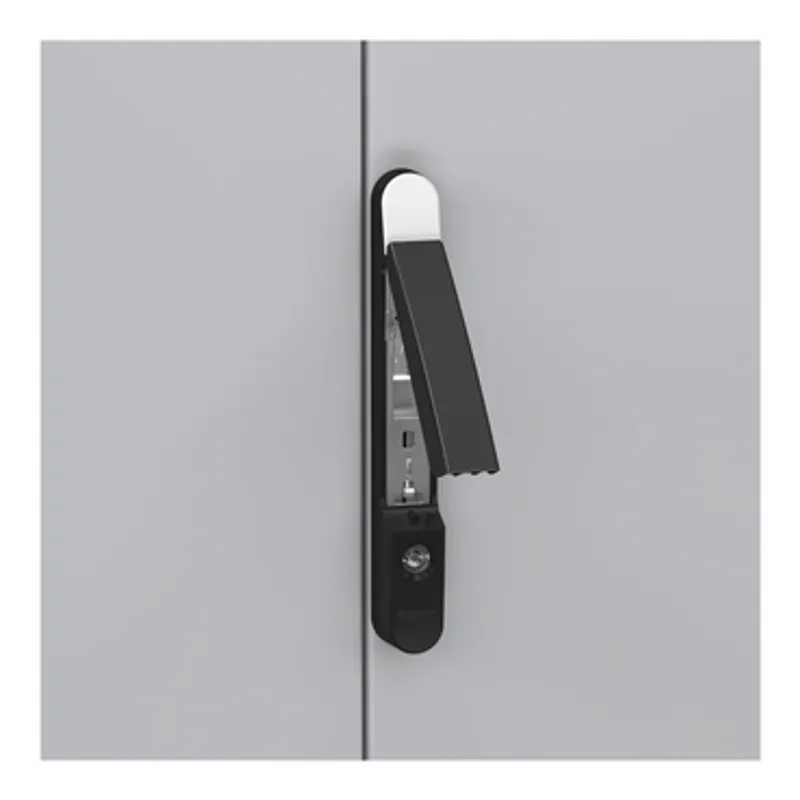

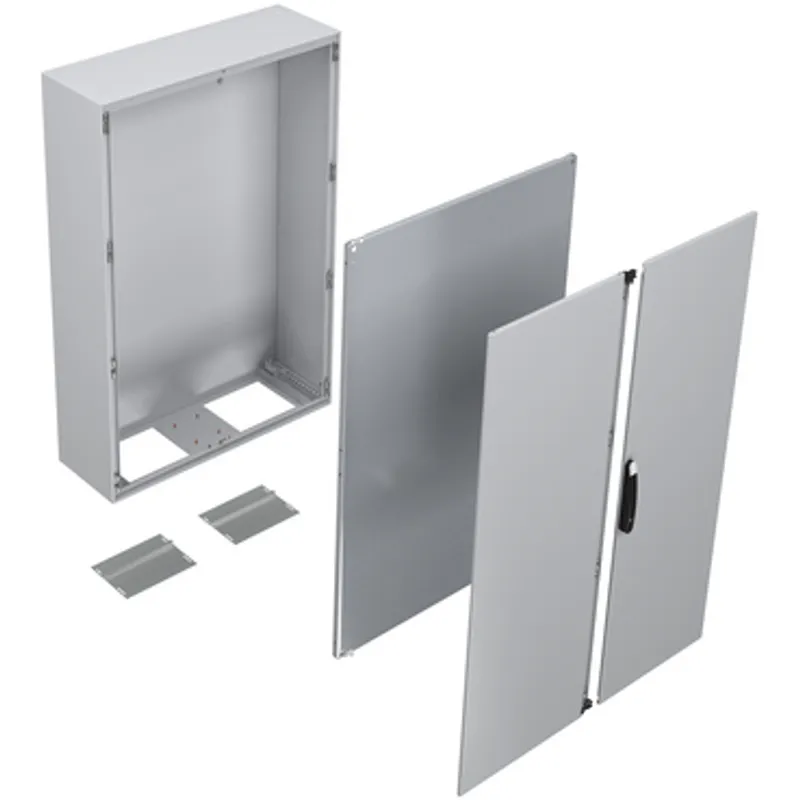

Spacial SM is a multi-purpose floor-standing steel enclosure designed for use in harsh environments It has a nominal height, width and depth of 1600mm, 1200mm and 400mm respectively The enclosure is made from galvanised steel, sheet steel and zamak, with an epoxy-polyester powder surface finish The enclosure is grey in color (RAL7035) and the handle is black (RAL9005) The enclosure consists of a body, two cable gland plates, two plain doors, four mounting plate brackets, a blocking system on left door, a locking system with handle on the door, and a mounting plate The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
