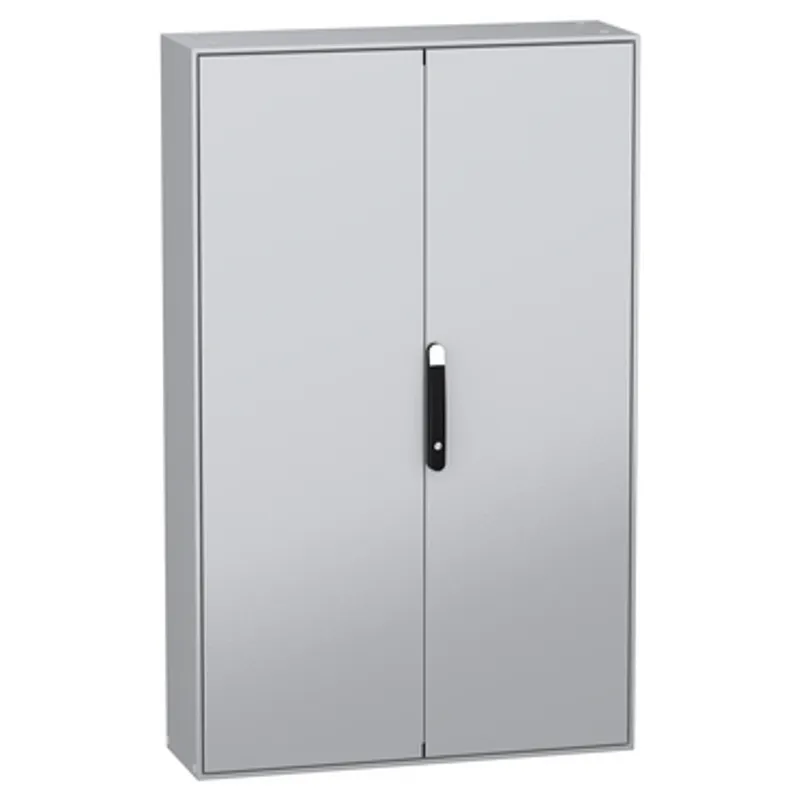

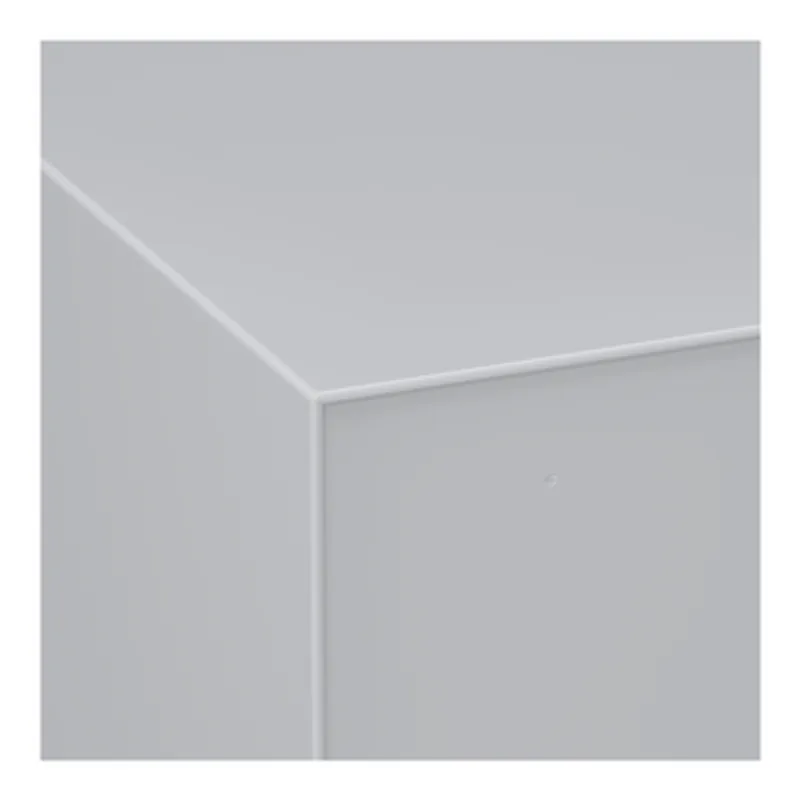

PanelSeT SM compact enclosure with mounting plate - 1600x1000x400 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 120.5 kg |
Shipping & availability
When can NSYSM1610402DP be shipped?
NSYSM1610402DP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM1610402DP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM1610402DP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM1610402DP, subject to availability and destination.

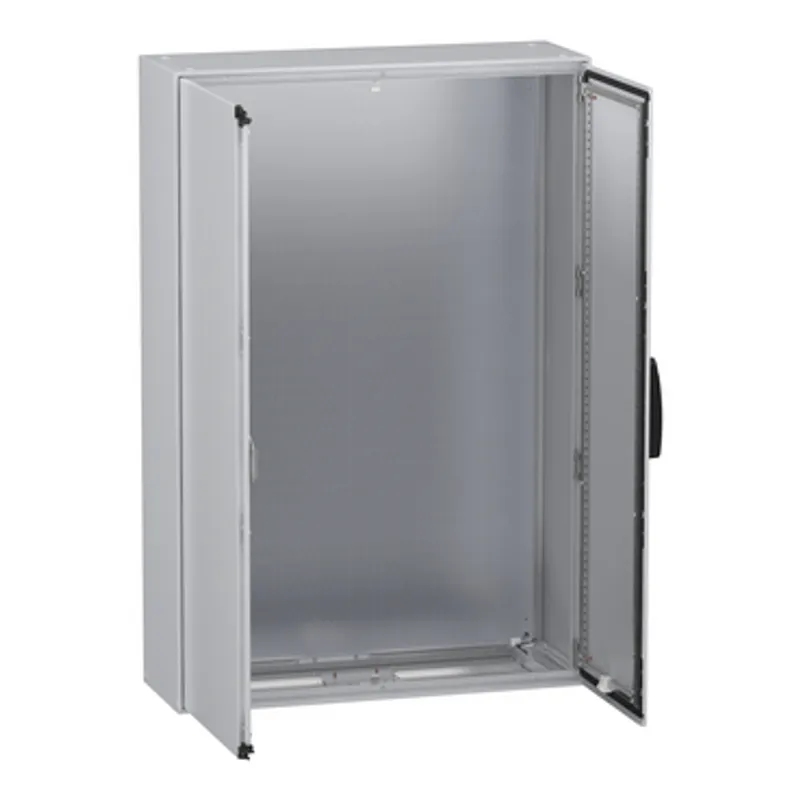

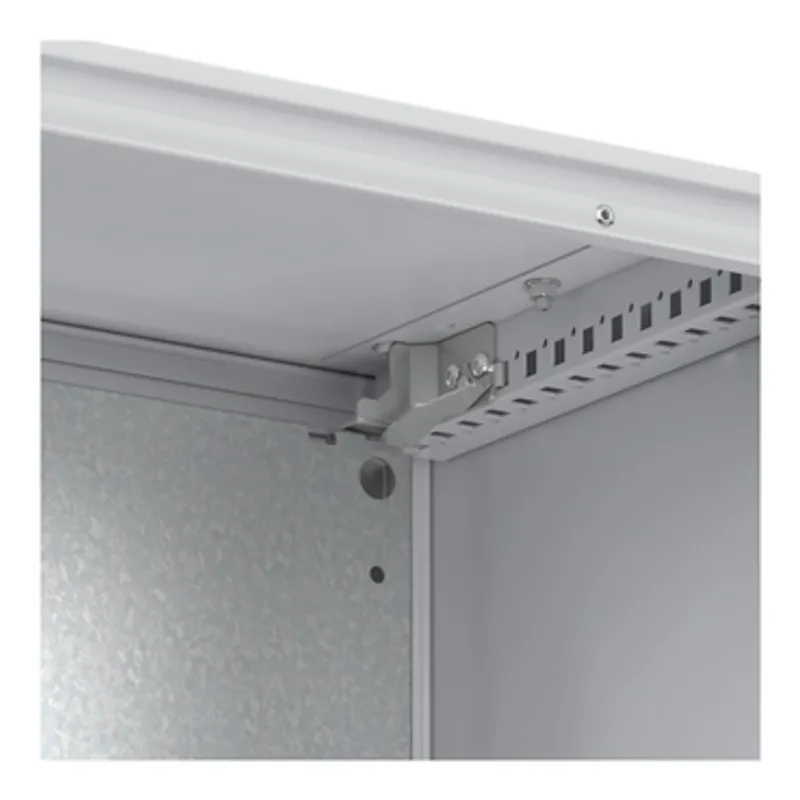

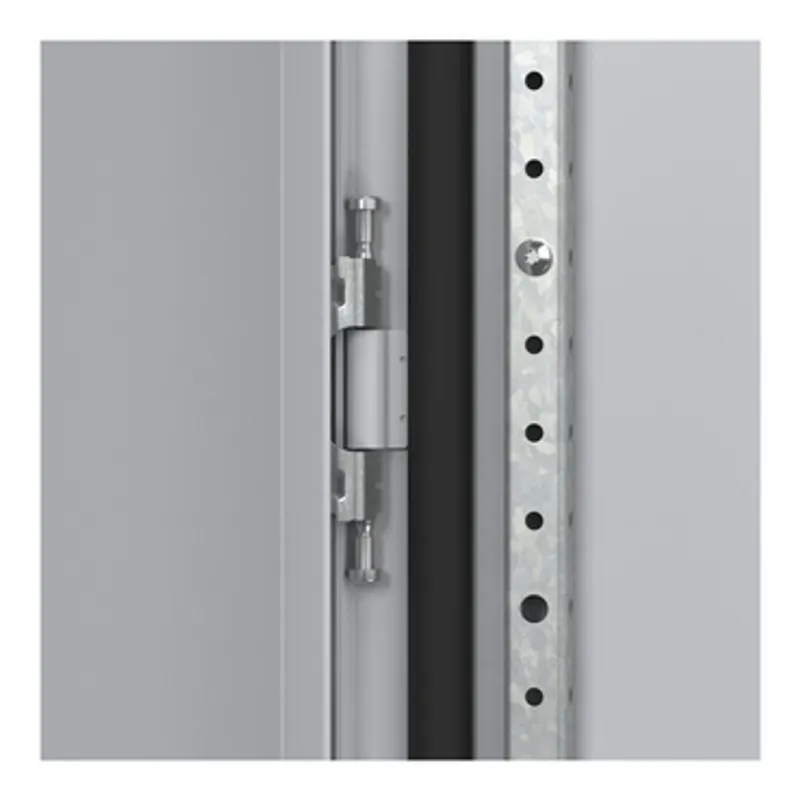

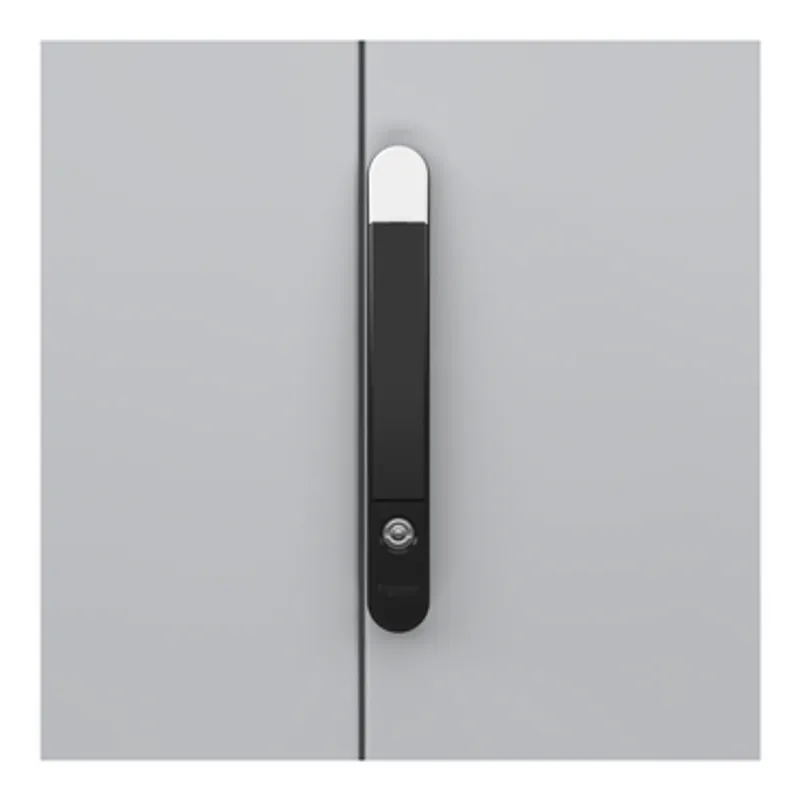

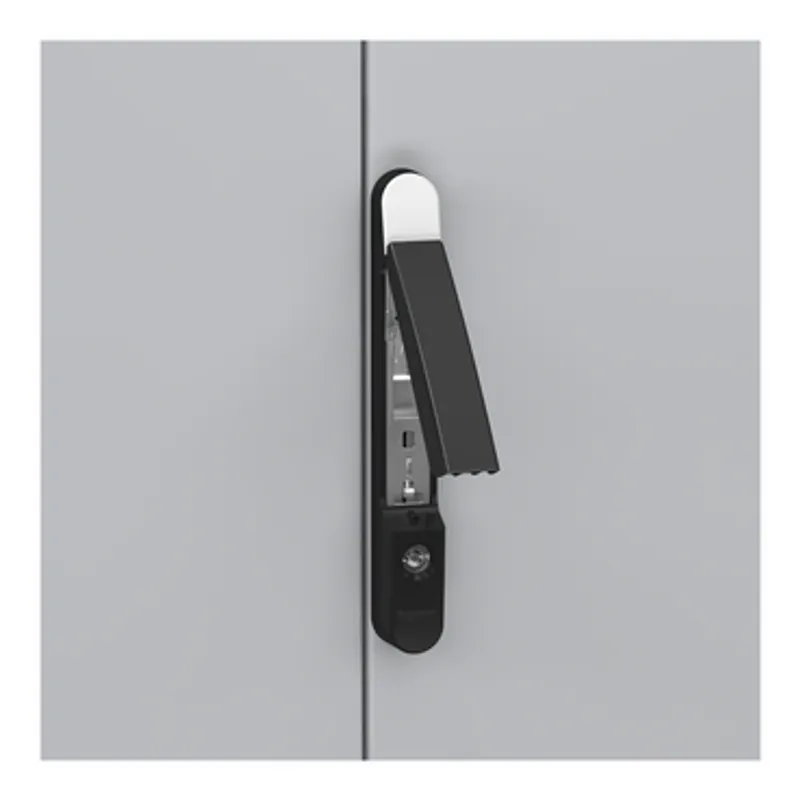

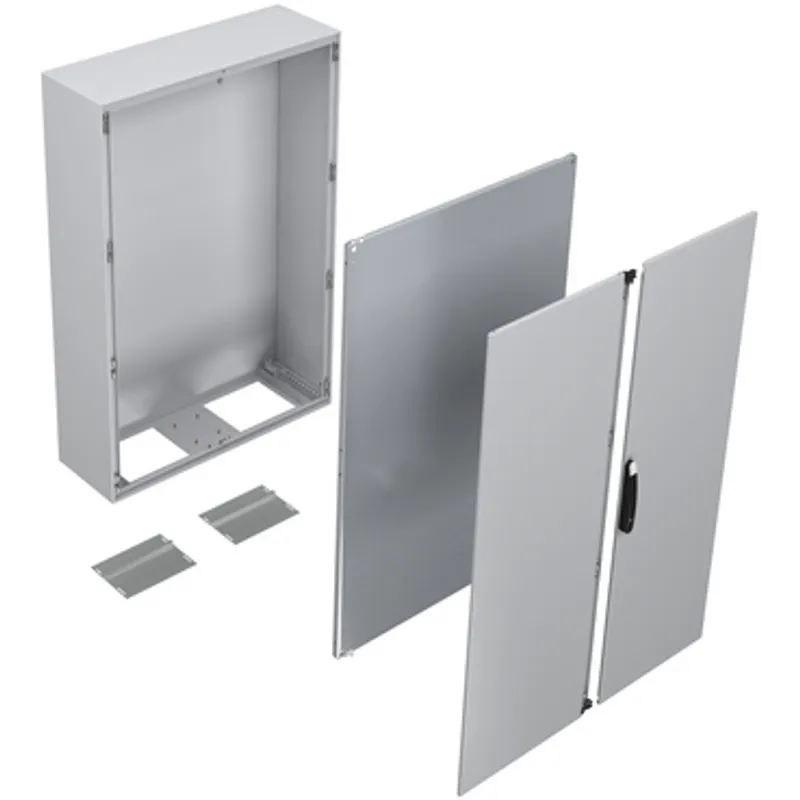

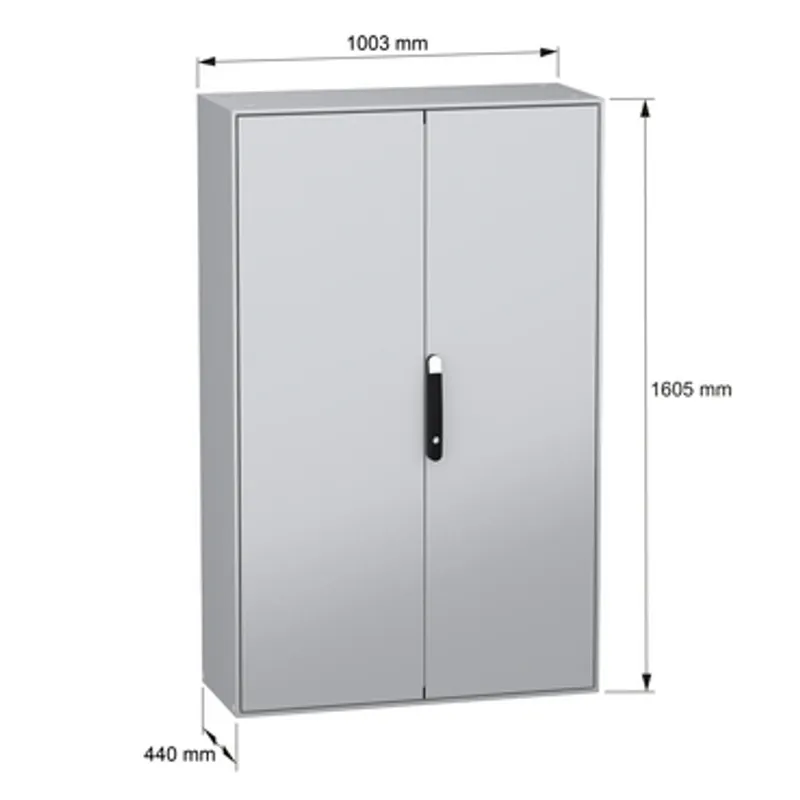

Spacial SM is a multi-purpose floor-standing steel enclosure with a nominal height, width and depth of 1600mm, 1000mm and 400mm respectively It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, one cable gland plate, two plain doors, four mounting plate brackets, a blocking system on left door, a locking system with handle on the door, and a mounting plate The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert The doors, the mounting plate brackets and the mounting plate can be removed for maintenance purposes
