Available on request

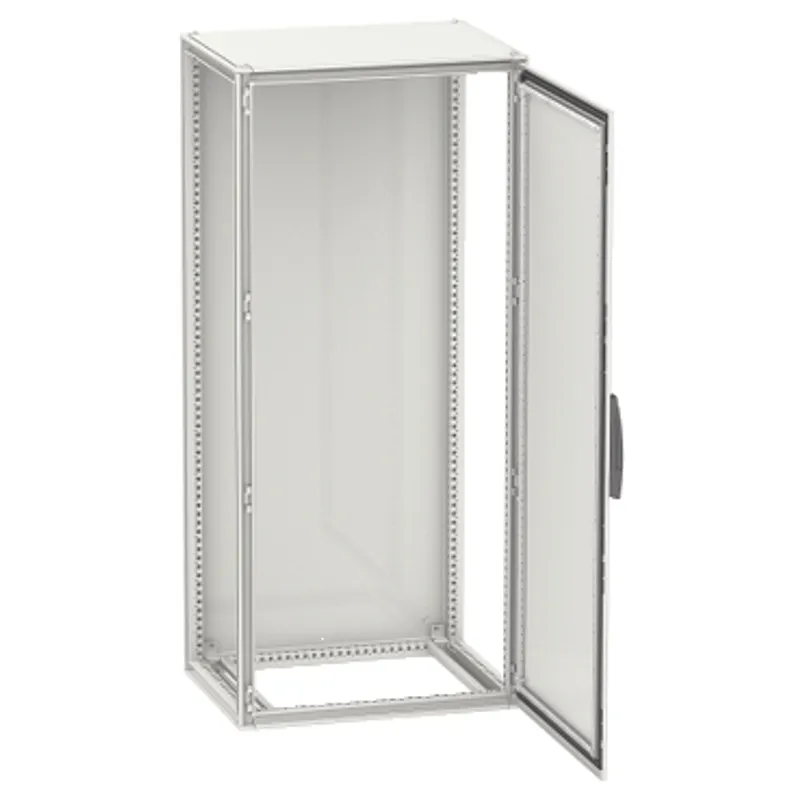

Spacial SFHF - electromagnetic protected enclosure - H=2000 x W=600 x D=400 mm
MPN: NSYSFHF20640 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SF |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NSYSFHF20640 be shipped?
NSYSFHF20640 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFHF20640 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFHF20640 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFHF20640, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Extended range | PanelSeT SFHF |
| Product or component type | Suitable enclosure |
| enclosure type | Electromagnetic protected |
| Enclosure nominal height | 2000 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 2 sliding rails, 4 mounting plate bracket, 1 structure, 1 door, 1 locking system with handle: door, 1 rear panel, 1 roof, 4 adaptor upright |
| Structure type | Panels and doors built into the structure, Vertical uprights joined with top and bottom frames, Perforated structure with a pitch of 25 mm, Formed from a single section |
| Door opening side | Reversible (120 °) |
| Door type | Plain front |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Lock type | 4 points lock, handle with 5 mm double bar insert front door |
| Number of doors | Front: 1 door(s) |
| Accessibility for operation | Rear, Front, Sides of enclosure |
| Removable parts | Door by screws hinge, Rear panel by screws, Roof by screws, Mounting plate bracket by screws, Sliding rail by screws |
| Material | Frame: galvanised steel, Uprights: galvanised steel, Hinge: zamak, Handle: polyamide 6 with 30 % fibre glass, Panels: aluzinc, Door: aluzinc |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Standards | IEC 62208, EMC/EN/IEC 61547 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Coverage | Core product |
| Warranty | 18 months |
