PanelSeT S3DM H400xW300xD150.IP66 IK10 RAL7035. top and bottom.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 5.18 kg |
Shipping & availability
When can NSYS3DM4315T be shipped?
NSYS3DM4315T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DM4315T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DM4315T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DM4315T, subject to availability and destination.

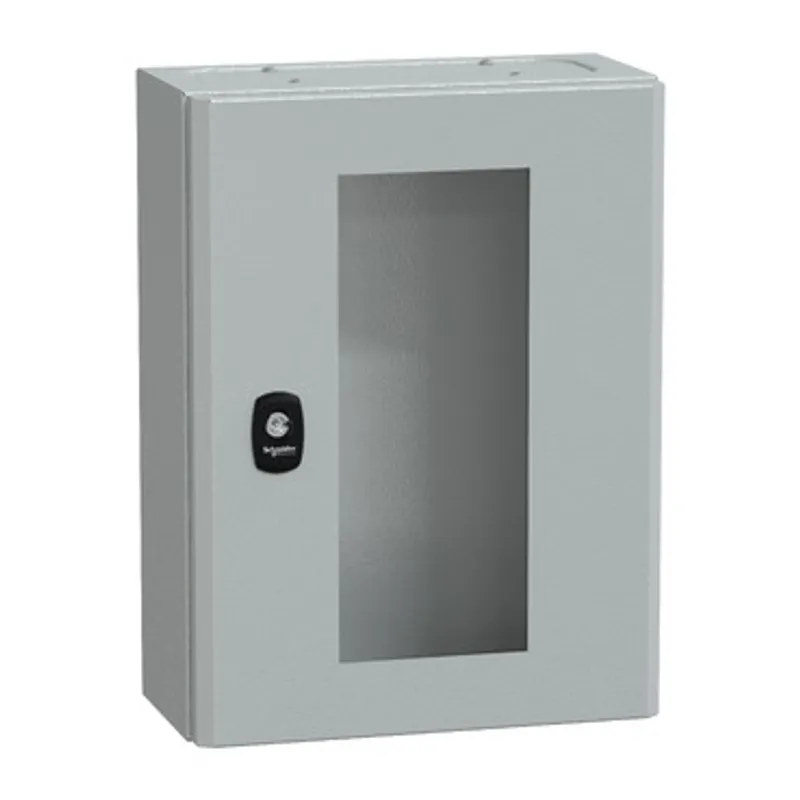

This S3DM is a modular distribution enclosure designed for wall-mounting The body is made of coated steel and the door is made of steel with security glass The enclosure has nominal dimensions of 400mm height, 300mm width, and 150mm depth The doors are reversible up to 120° and are secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish The enclosure comes with two cable gland plates (top and bottom), one body, one door, one 3mm double locking system, and one document holder The enclosure is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It conforms to UL, LR, GL, BV, cUL, and DNV standards Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DM |
| Application | Modular distribution application |
| Category | Compact enclosure |

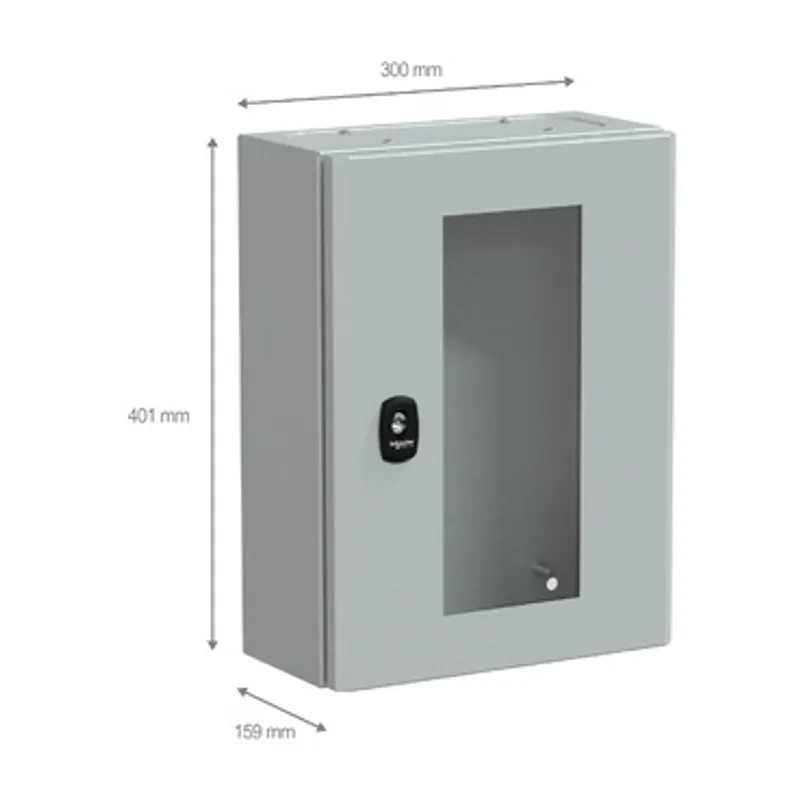

| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Product destination | For installation of modular chassis DLM |
| Device composition | 2 cable gland plate: top and bottom, 1 body, 1 door, 1 lock |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |

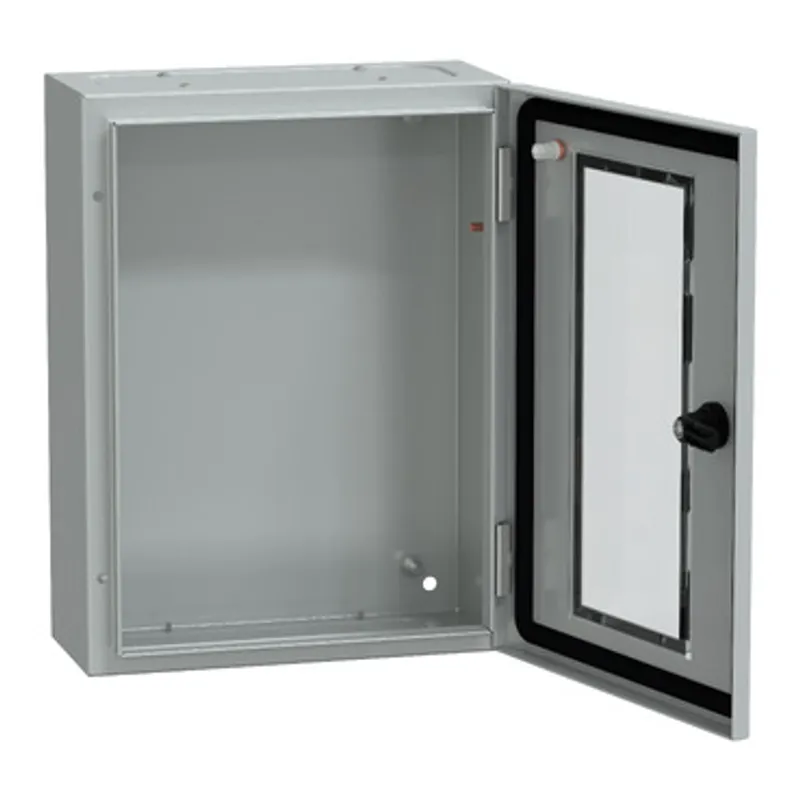

| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | UL, GL, BV, cUL, DNV |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.500 cm |
| Package 1 Width | 31.000 cm |
| Package 1 Length | 41.500 cm |
| Package 1 Weight | 5.182 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 197.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 262.000 kg |
| Warranty | 18 months |
