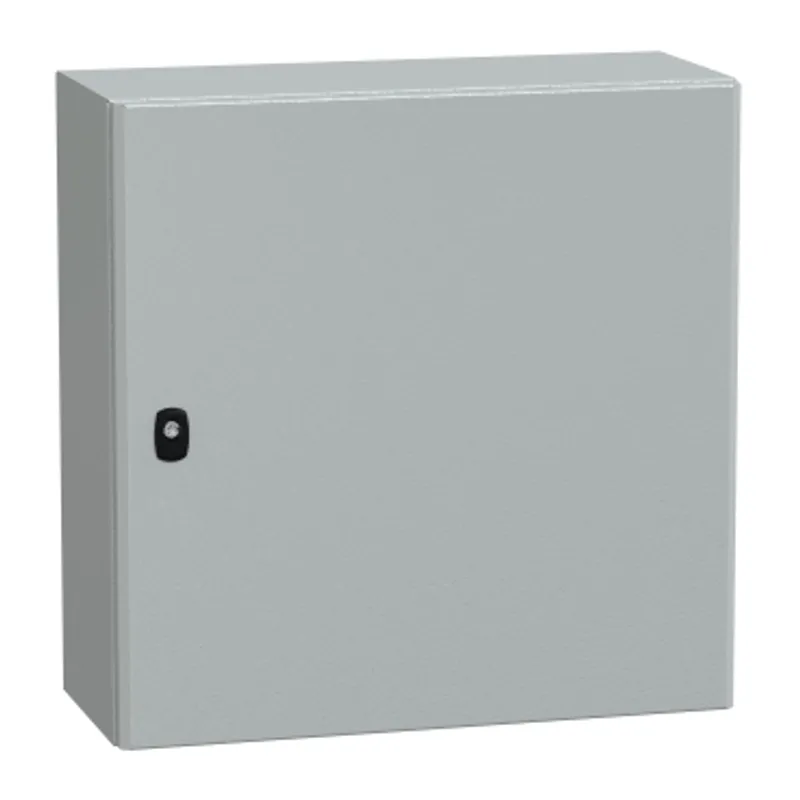

PanelSeT S3DEX (ATEX certified) H600xW600xD250 .IP66 IK10 RAL7035.
MPN: NSYS3DEX6625 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 15.5 kg |
Shipping & availability
When can NSYS3DEX6625 be shipped?
NSYS3DEX6625 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DEX6625 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DEX6625 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DEX6625, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DEX |
| Application | ATEX certified application |
| Category | Compact enclosure |
| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Product destination | For potentially explosive atmosphere |
| Device composition | 1 door, 1 lock, body with clamped blind nut |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC |
| Net weight | 15.5 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 (enclosures with single door) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 61.000 cm |
| Package 1 Length | 61.500 cm |
| Package 1 Weight | 15.500 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 199.500 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 292.000 kg |
| Warranty | 18 months |
