PanelSeT S3D ATEX. H300xW300xD200 .IP66 IK10 RAL7035.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.6 kg |
Shipping & availability
When can NSYS3DEX3320 be shipped?
NSYS3DEX3320 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DEX3320 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DEX3320 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DEX3320, subject to availability and destination.

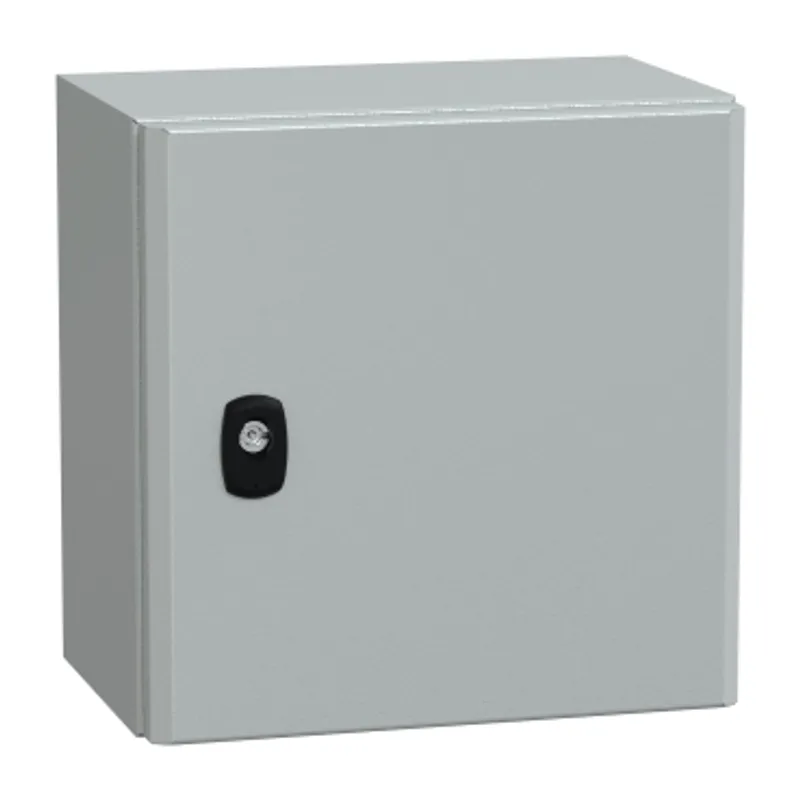

The Spacial S3DEX is a wall-mounting ATEX certified enclosure with a steel body, designed to provide superior protection against dust, water, and impact in potentially explosive atmospheres It has a nominal height, width, and depth of 300mm, 300mm, and 200mm, respectively The enclosure is grey in colour (RAL 7035) with an epoxy-polyester powder surface finish It has a plain door with a double-bar lock and hinges, allowing it to be opened up to 120° and the opening side is reversible The door can be removed for maintenance purposes It is certified by EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 and is compliant with NEMA 4X/13, IK10 (IEC 62262), and IP66 (IEC 60529) The net weight of the enclosure is 4,6kg It features a single piece body and gutter-shaped front rail double sheet thickness
