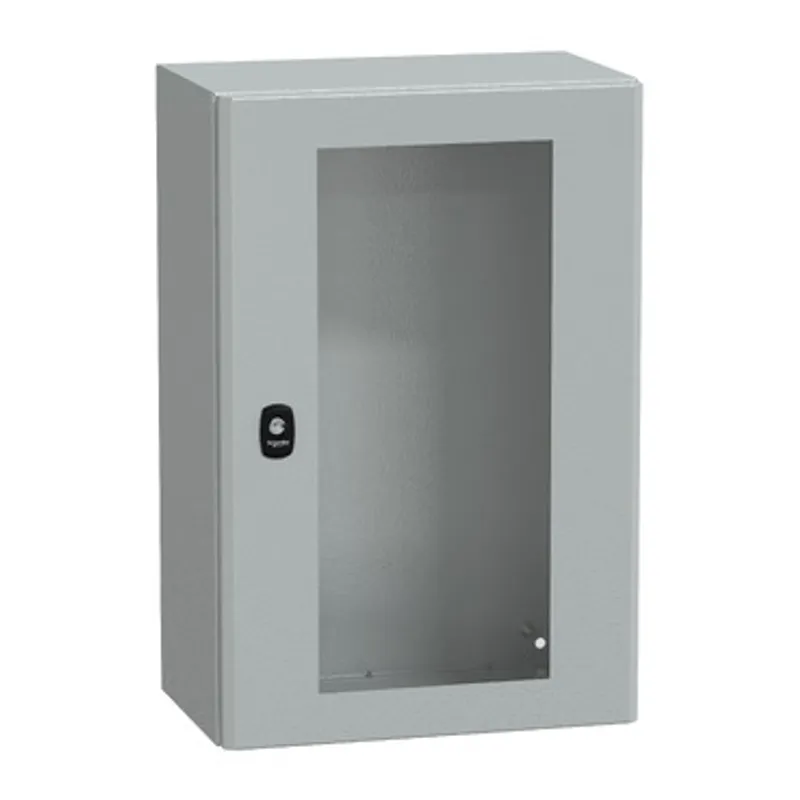

Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 600x400x250mm, IP66, IK08
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT S3D |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 11.5 kg |
Shipping & availability
When can NSYS3D6425T be shipped?
NSYS3D6425T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3D6425T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3D6425T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D6425T, subject to availability and destination.
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It can withstand high impact due to its IK08 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 600mm, 400mm and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one glazed door and one lock The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

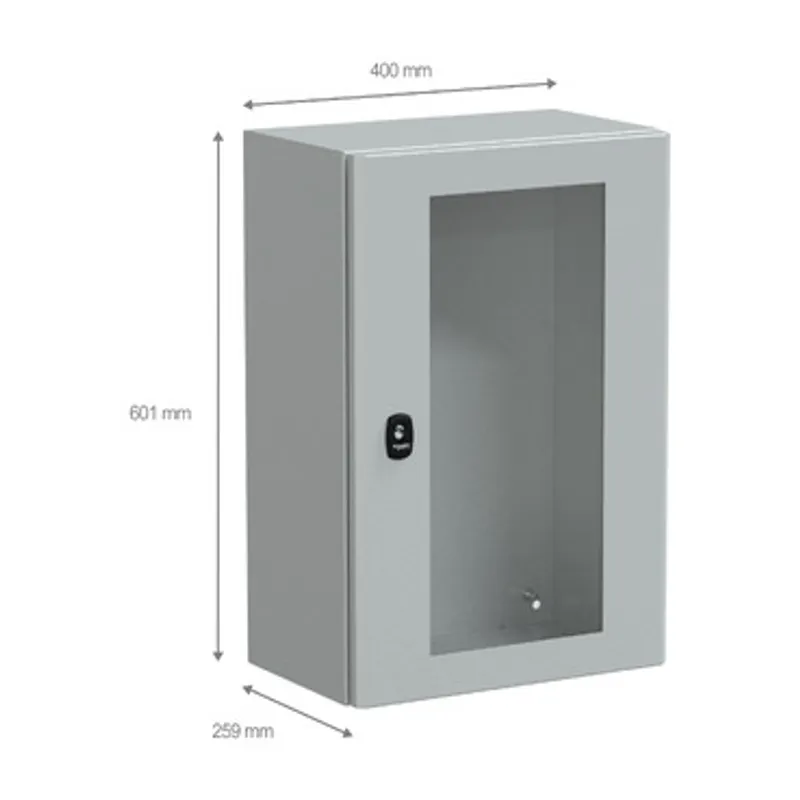

| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL, GL, DNV, BV |
| Net weight | 11.5 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 41.000 cm |
| Package 1 Length | 62.000 cm |
| Package 1 Weight | 11.800 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 200.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 332.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
