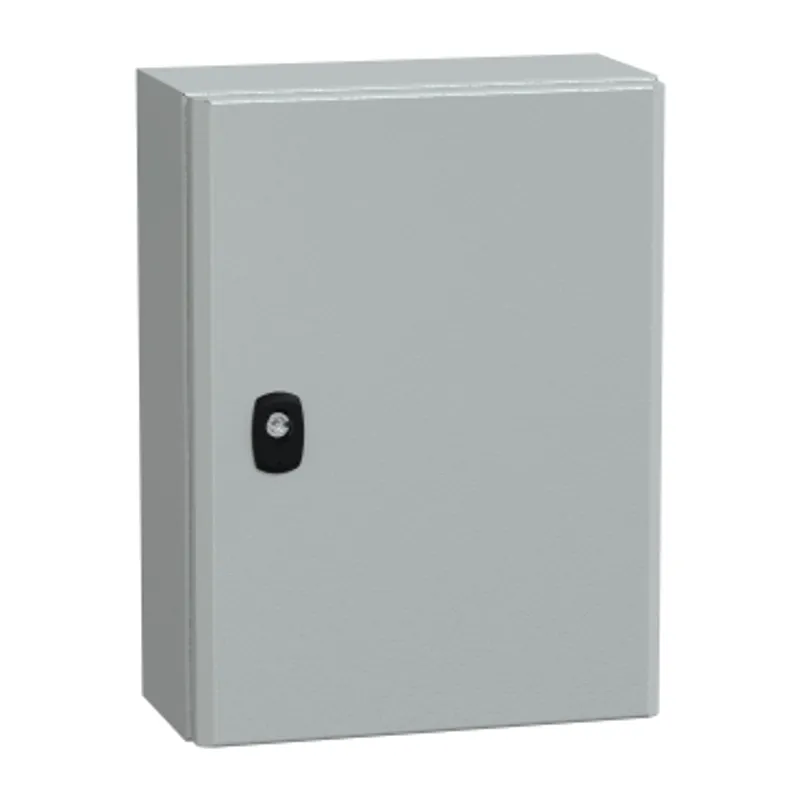

Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 400x300x150mm, IP66, IK10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT S3D |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.9 kg |
Shipping & availability
When can NSYS3D4315 be shipped?
NSYS3D4315 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3D4315 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3D4315 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D4315, subject to availability and destination.

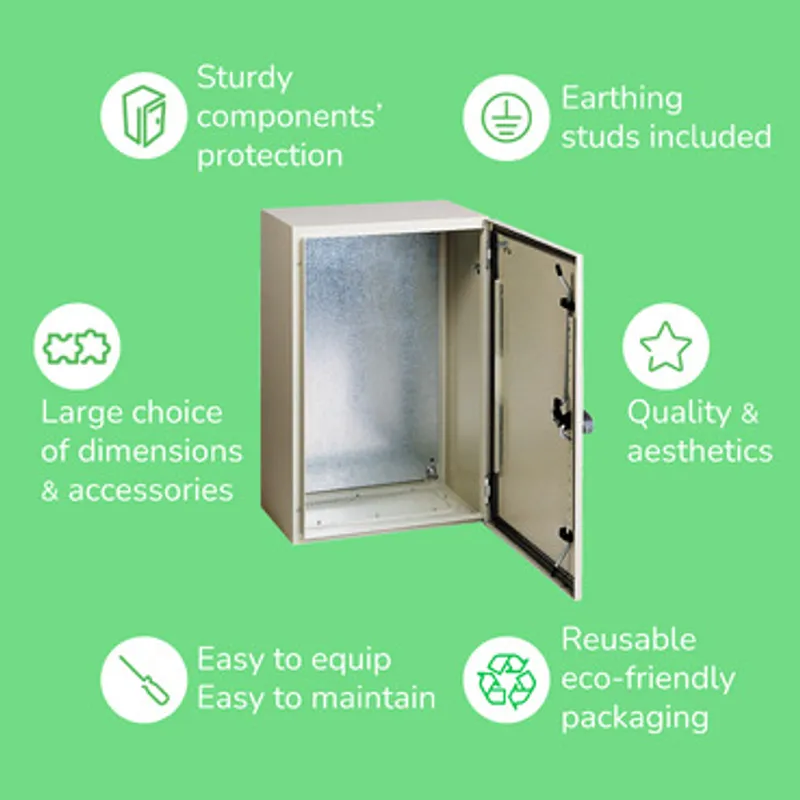

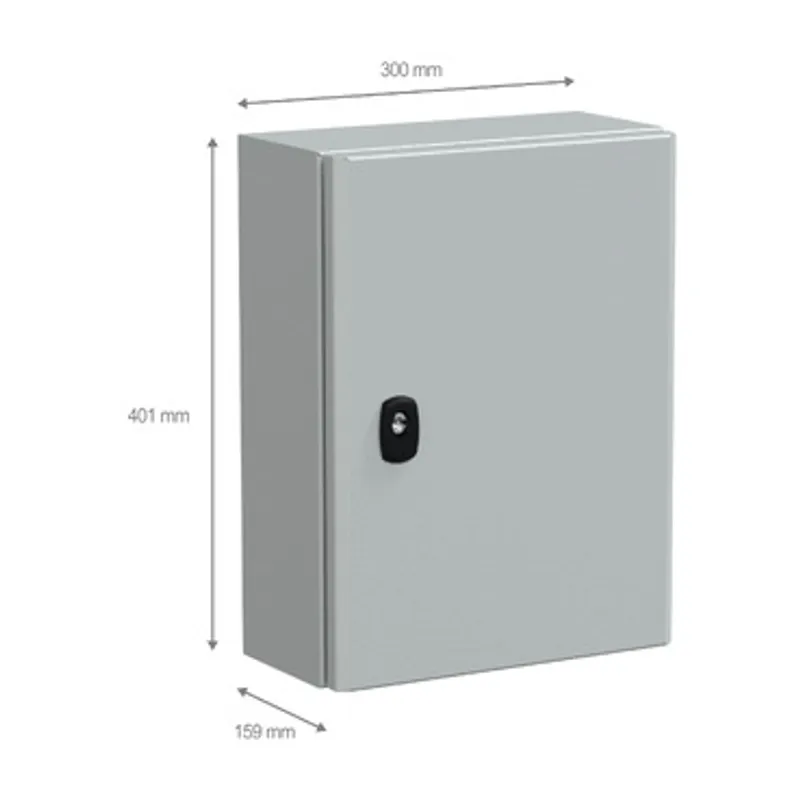

Spacial S3D is a monobloc wall-mounting enclosure for multi-purpose applications It is designed to withstand harsh environments, with a NEMA 4X/13 rating and an IK10 rating (IEC62262) for high impact resistance The enclosure is also IP66 rated (IEC60529), making it dust-tight and water-tight This enclosure has a nominal height, width and depth of 400mm, 300mm and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a door, a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes
