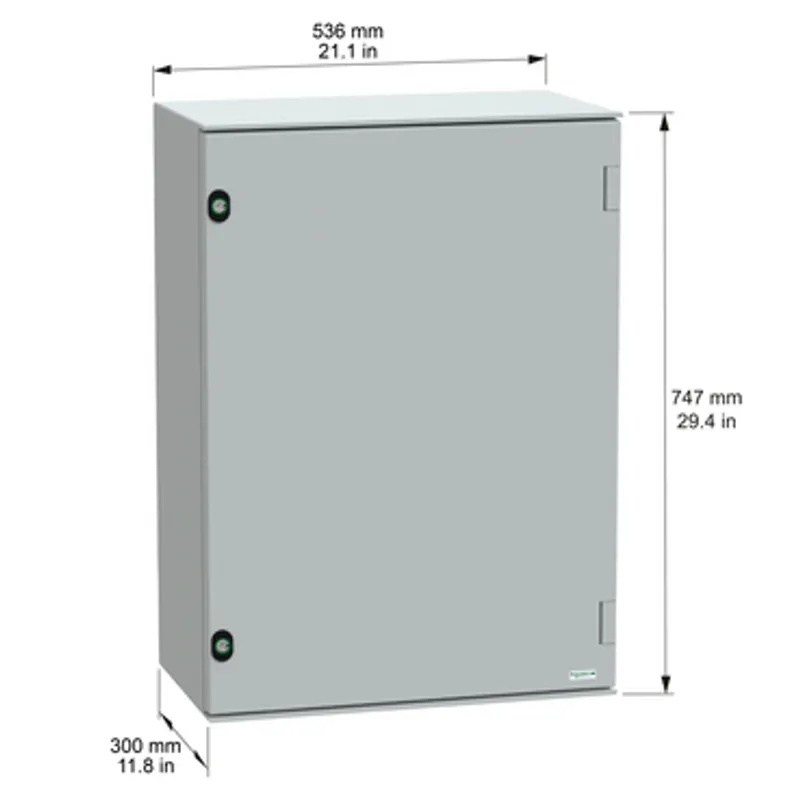

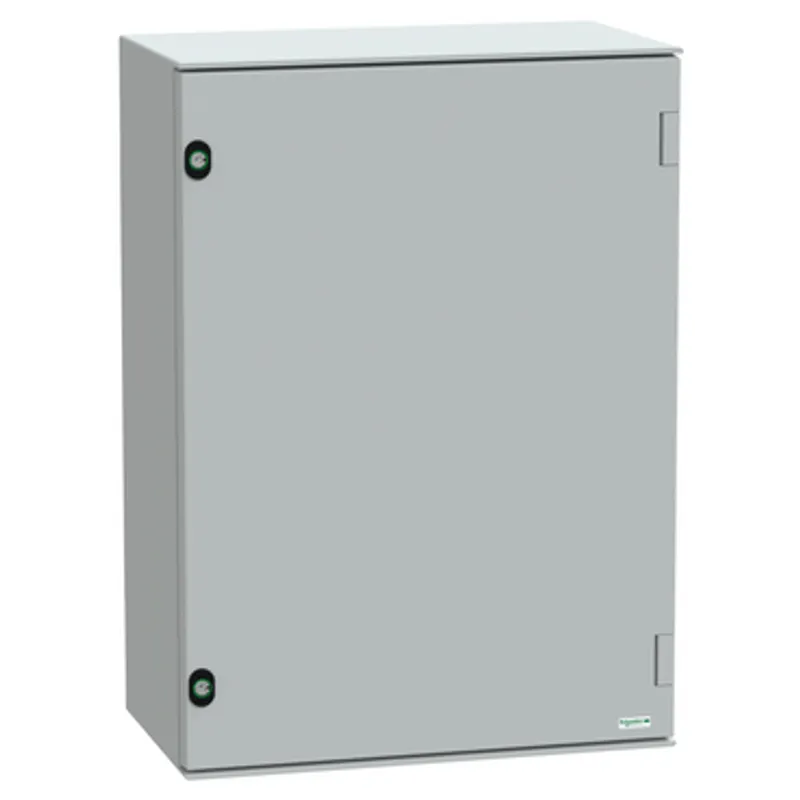

Wall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 747x536x300mm, IP66, IK10, RAL 7035
MPN: NSYPLM75BG · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 16.37 kg |
Shipping & availability
When can NSYPLM75BG be shipped?
NSYPLM75BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLM75BG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLM75BG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM75BG, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |
| Nominal height | 747 mm |
| Nominal width | 536 mm |
| Nominal depth | 300 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 door, 1 mounting plate, 2 lock |
| Door type | Plain |
| Lock type | 3 mm double-bar lock |
| Number of locks | 2 |
| Mounting plate description | Plain bakelite |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Mounting plate by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | NEMA classification 13, IEC 62208, NEMA classification 4X |
| Product certifications | UL |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 32.500 cm |
| Package 1 Width | 56.000 cm |
| Package 1 Length | 81.500 cm |
| Package 1 Weight | 16.370 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 178.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 207.000 kg |
| Warranty | 18 months |
