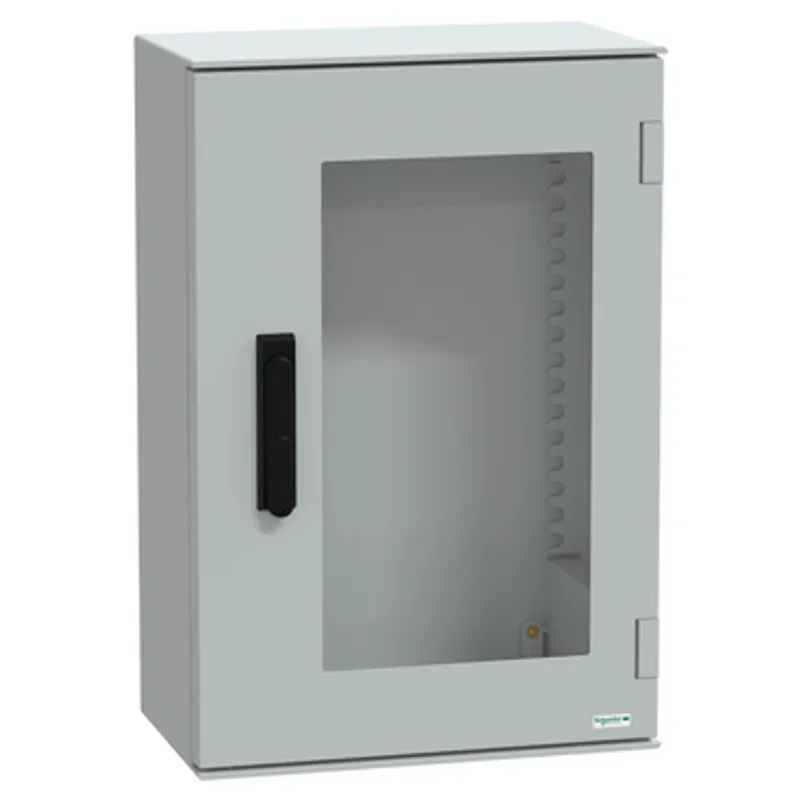

Wall mounted polyester enclosure, PanelSeT PLM, glazed door, with handle, 647x436x250mm, IP66, IK08, RAL 7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 11.69 kg |
Shipping & availability
When can NSYPLM64TVG be shipped?
NSYPLM64TVG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLM64TVG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLM64TVG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM64TVG, subject to availability and destination.
Thalassa PLM wall-mounting polyester enclosure monobloc w/glazed door. 647 x 436 x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13,4X) 960°C fire resistance.
Specifications
Specifications
| Range | PanelSeT |
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |

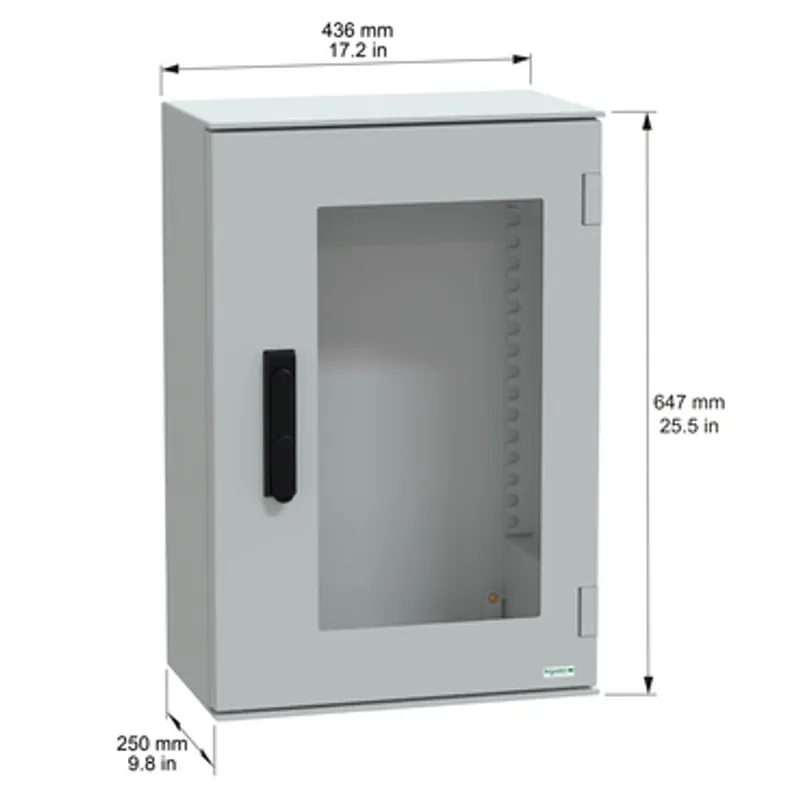

| Nominal height | 647 mm |
| Nominal width | 436 mm |
| Nominal depth | 250 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 door, 1 handle lock |
| Door type | Transparent |
| Lock type | 3 points lock, handle with 1242E key lock |
| Number of locks | 1 |
| Mounting plate description | Without mounting plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body: polyester reinforced with fibreglass, Door: tempered glass |
| Colour | Grey (RAL 7035) |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.500 cm |
| Package 1 Width | 47.000 cm |
| Package 1 Length | 72.000 cm |
| Package 1 Weight | 11.690 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 21 |
| Package 2 Height | 205.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 259.000 kg |
| Warranty | 18 months |
