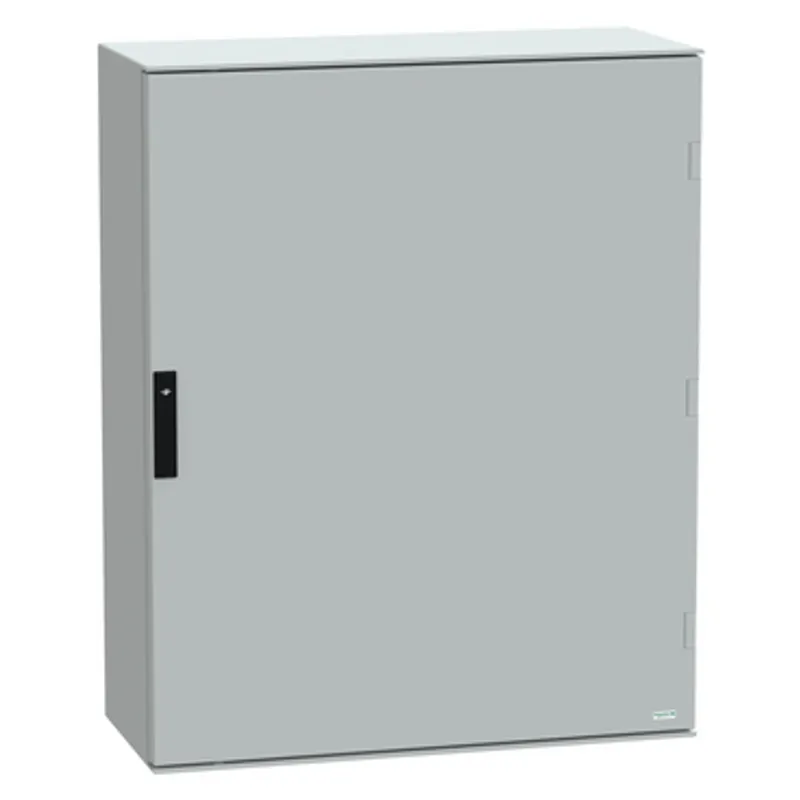

Wall mounted polyester enclosure, PanelSeT PLM, plain door, 1056x852x350mm, IP66, IK10, RAL 7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 31 kg |
Shipping & availability
When can NSYPLM108G be shipped?
NSYPLM108G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLM108G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLM108G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM108G, subject to availability and destination.

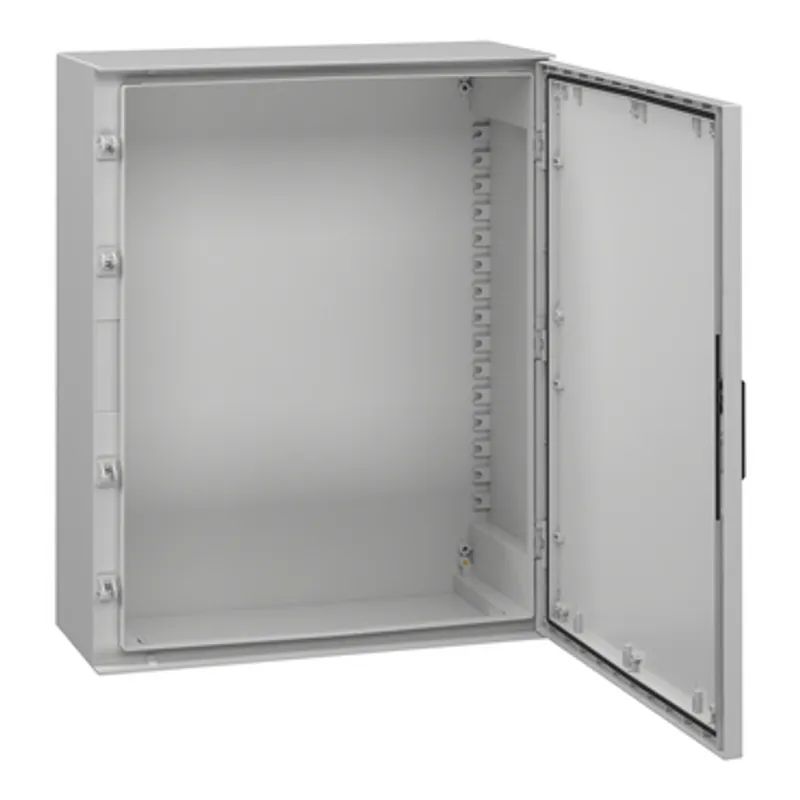

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 1056 mm, 852 mm, and 350 mm, respectively It is made of polyester reinforced with fibreglass for durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and one lock The door is plain and can be opened from the front using a 4 points lock, handle with 5 mm double bar insert The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)
Specifications
Specifications
| Range | PanelSeT |
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |

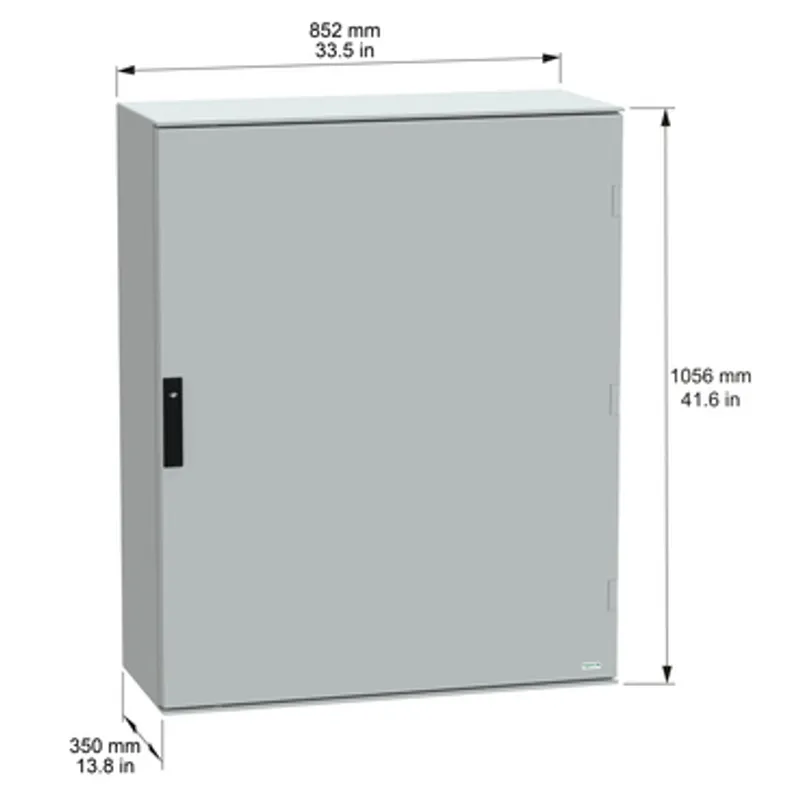

| Nominal height | 1056 mm |
| Nominal width | 852 mm |
| Nominal depth | 350 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 door, 1 lock |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Number of locks | 1 |
| Mounting plate description | Without mounting plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | NEMA classification 13, IEC 62208, NEMA classification 4X |
| Product certifications | UL |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 38.000 cm |
| Package 1 Width | 87.500 cm |
| Package 1 Length | 113.000 cm |
| Package 1 Weight | 31.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 165.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 136.000 kg |
| Warranty | 18 months |
