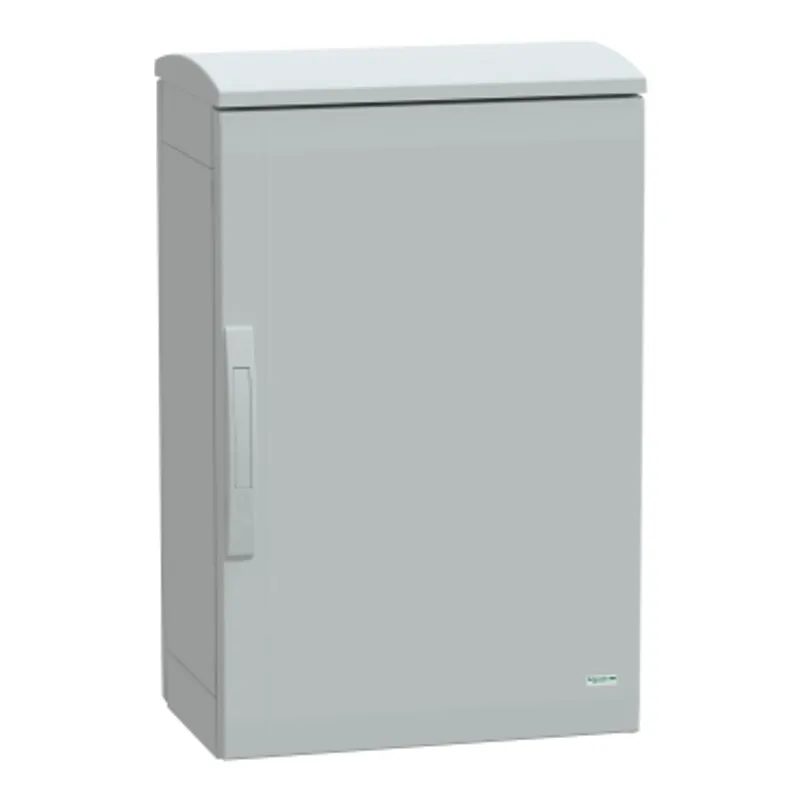

Floor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 750x500x320mm, IP44, IK10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 18.8 kg |
Shipping & availability
When can NSYPLAT753G be shipped?
NSYPLAT753G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLAT753G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLAT753G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAT753G, subject to availability and destination.

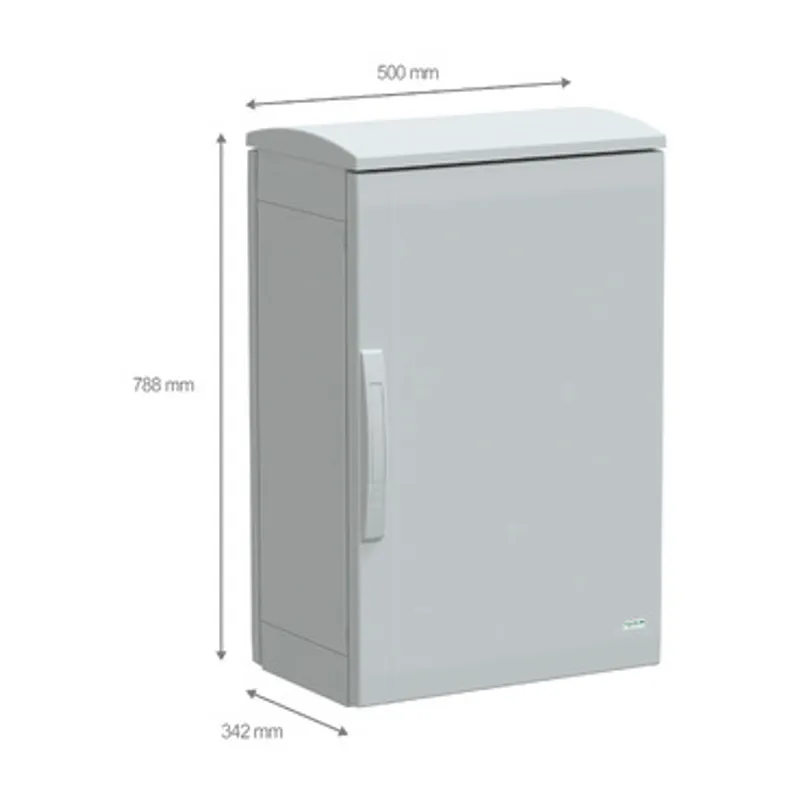

This PLAT version of the PLA is a floor-standing enclosure that is suitable for various applications It has a nominal height of 750mm, a width of 500mm, and a depth of 320mm The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, both outdoor and industrial It is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy The door can be opened up to 120° from either the right or left side, and is equipped with a two-point handle lock and a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure The enclosure is designed to provide robust protection against various hazards, including fire, impact, dust, and water
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAT |
| Nominal height | 750 mm |
| Nominal width | 500 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy |
| Body type | Open top and sealed bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points handle lock, 5 mm double-bar |
| Accessibility for operation | Top, Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element, Canopy by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP44 conforming to IEC 60529 (with ventilated canopy) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 38.000 cm |
| Package 1 Width | 54.000 cm |
| Package 1 Length | 81.000 cm |
| Package 1 Weight | 18.800 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 165.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 201.000 kg |
| Warranty | 18 months |
