Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1500x750x320mm, IP65, IK10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 39.6 kg |
Shipping & availability
When can NSYPLA1573G be shipped?
NSYPLA1573G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLA1573G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLA1573G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA1573G, subject to availability and destination.

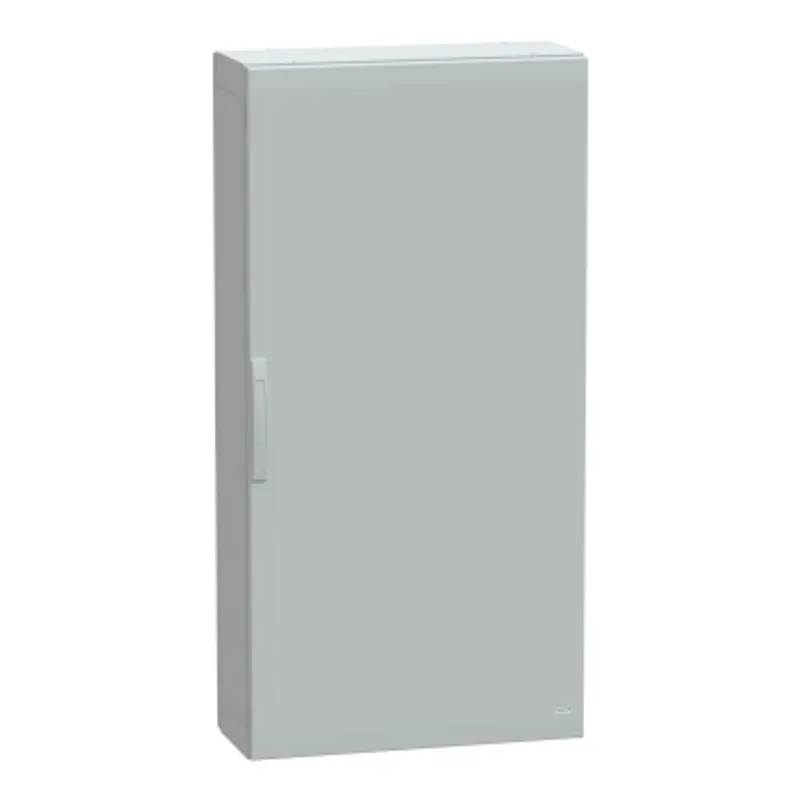

This PLA version of the Thalassa is a multi-purpose, floor-standing enclosure that is suitable for various applications It features a sealed top and bottom part, assembled with side parts, and has nominal dimensions of 1500mm in height, 750mm in width, and 320mm in depth The enclosure is made of polyester reinforced with fiberglass, providing strength and resistance to harsh environments, including outdoor and industrial settings The enclosure comes in grey (RAL 7035) and is comprised of two side parts, one plain front door, and one rear panel The front door can be opened up to 120° from either the right or left side, and is secured with a four-point lock and a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes The enclosure is certified by DNV Marine, Veritas, and UL/cUL listed, and offers robust protection against various hazards, including fire, impact, dust, and water
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |

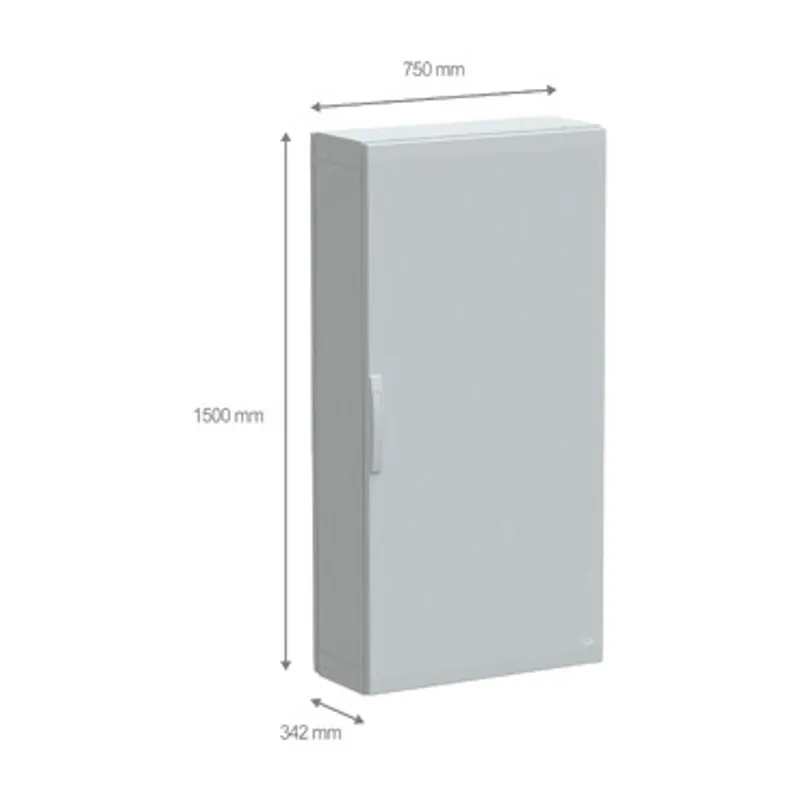

| Nominal height | 1500 mm |
| Nominal width | 750 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 12, NEMA 1, NEMA 2, NEMA 3S, NEMA 5, NEMA 3X, NEMA 3R, NEMA 3, NEMA 13 |
| Product certifications | DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.500 cm |
| Package 1 Width | 78.000 cm |
| Package 1 Length | 151.000 cm |
| Package 1 Weight | 39.600 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 164.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 132.000 kg |
| Warranty | 18 months |
