reversible internal door polyester 2 locks grid pattern forPLM64
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.95 kg |
Shipping & availability
When can NSYPAP64G be shipped?
NSYPAP64G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPAP64G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPAP64G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPAP64G, subject to availability and destination.

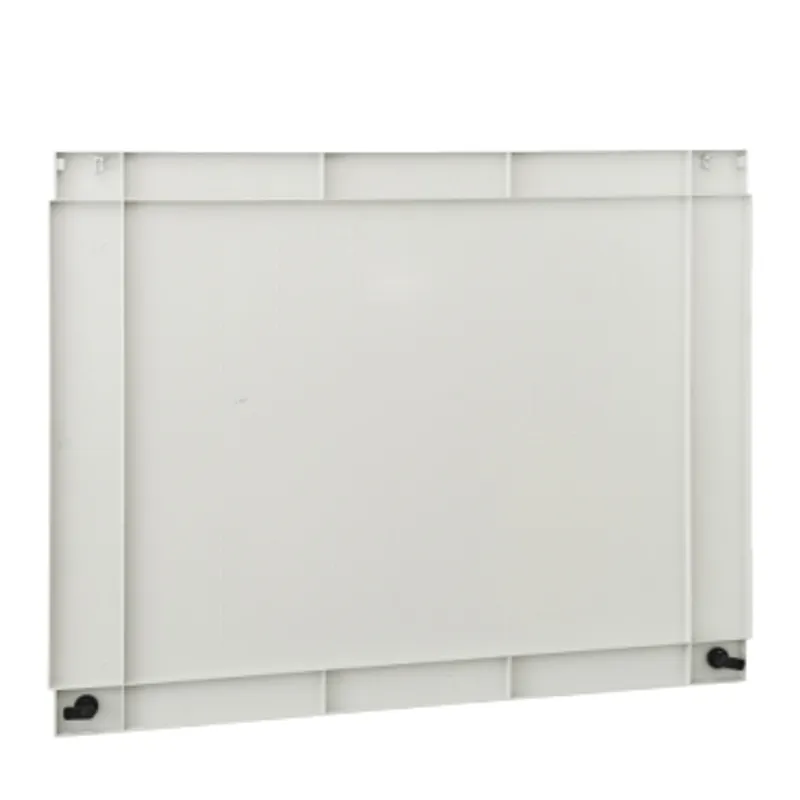

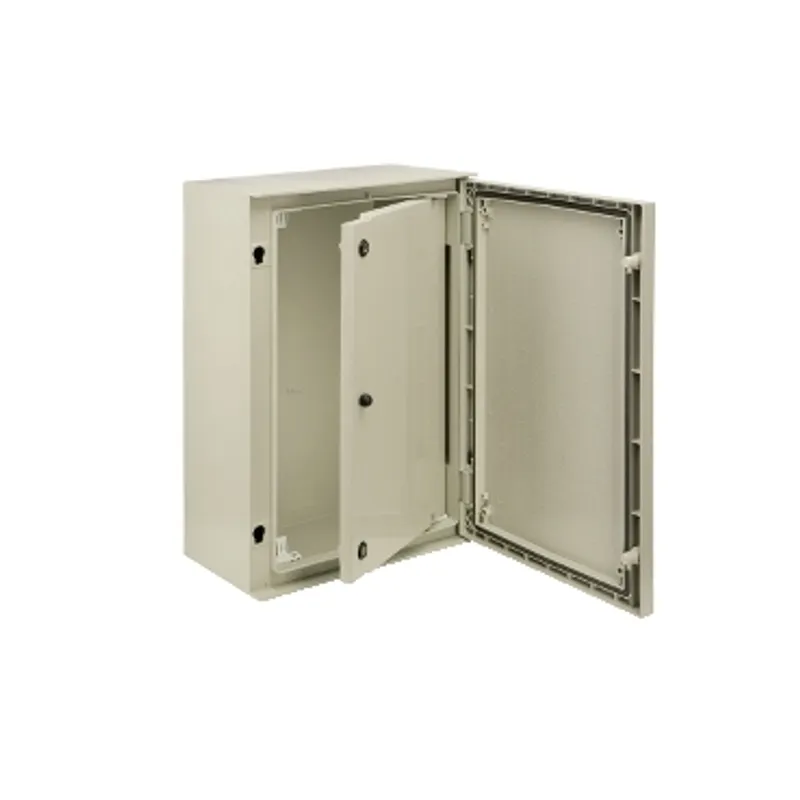

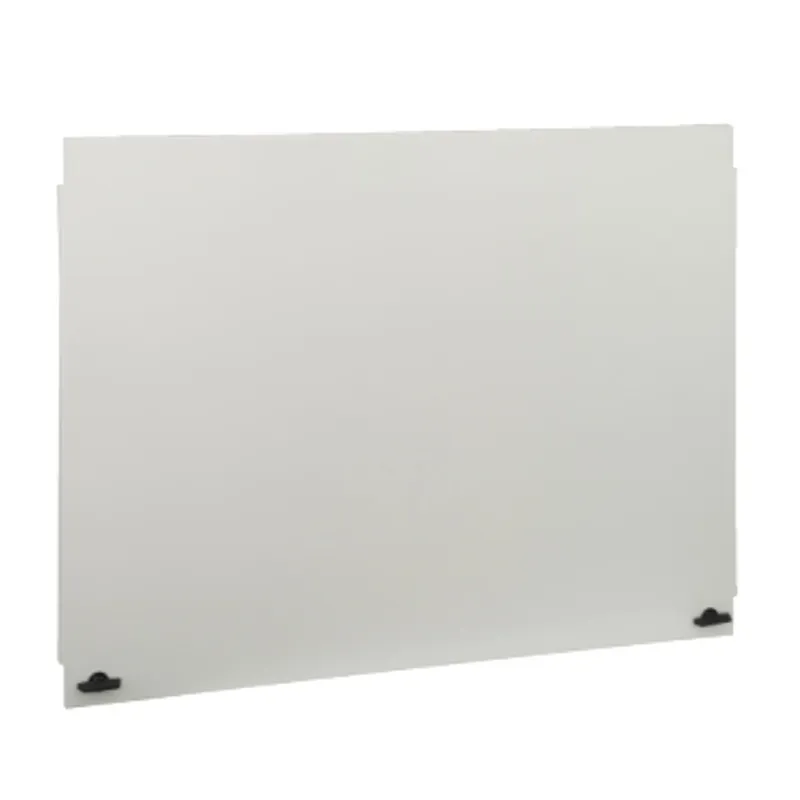

Internal plain door for Thalassa PLM The product is to be mounted on front side of the enclosure The grid pattern width is 305mm The grid pattern height is 515mm The available depth between enclosure door depth is 32mm and available depth between rear depth is 194mm The door is made of polyester charged with fibreglass (RAL 7035) and has a degree of IP protection IP20 Hinges left or right (110 ° opening angle) The door has 2 locks with 5mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front side |
| Range compatibility | PanelSeT PLM |
| Device composition | 1 door, 1 handle, 4 fixing brackets |
| Material | Polyester charged with fibreglass |
| Colour | Grey (RAL 7035) |
| Lock type | Lock 5 mm double bar |
| Number of locks | 2 |
| Door type | Internal plain |
| Door opening side | Reversible (110 °) |
| Height | Grid pattern: 515 mm |
| Width | Grid pattern: 305 mm |
| Depth | Available depth between enclosure door : 32 mm, Available depth between rear : 194 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 37.000 cm |
| Package 1 Length | 61.000 cm |
| Package 1 Weight | 1.952 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 92.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 138.000 kg |
| Warranty | 18 months |
