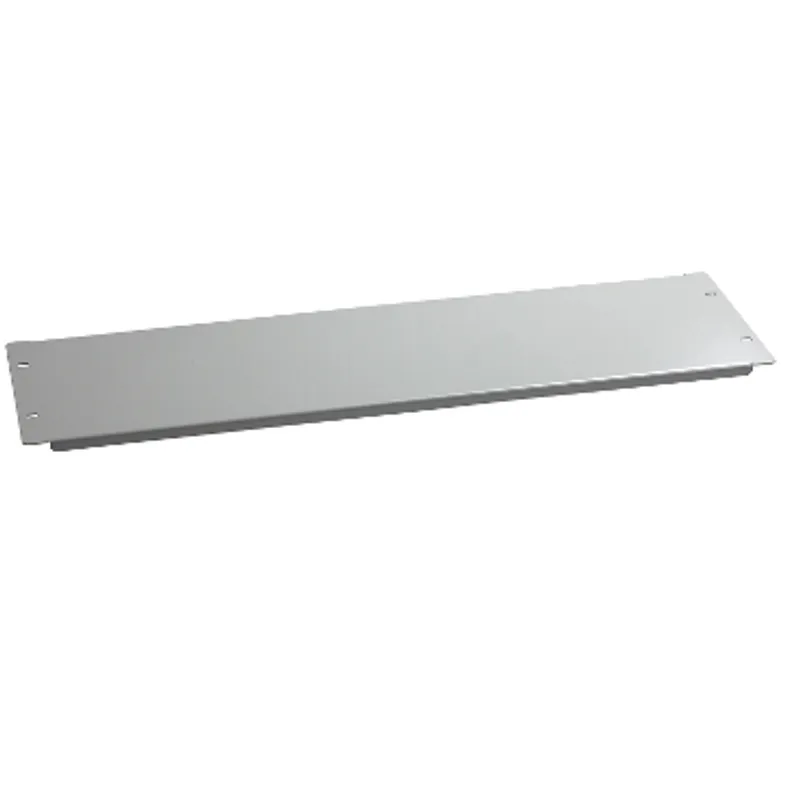

Screwed-on plain cover plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800mm steel, H150mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.98 kg |
Shipping & availability
When can NSYMPC158 be shipped?
NSYMPC158 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMPC158 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMPC158 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMPC158, subject to availability and destination.
Plain grey cover plate (RAL 7035) made from steel for Spacial SF and Spacial SM enclosures Mounted by screws on chassis coupling set The nominal width is 800mm, fixing centers width is 678mm and real width is 702mm The nominal height is 150mm and real height is 149,5mm The real depth is 12mm Suitable for enclosures of 800 width 150mm The kit is made up of fixing elements and 1 cover plate
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Cover plate |
| Anwendung | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Nominal dimensions of the housing | - H: 150 mm W: 800 mm |
| Mounting location | On chassis coupling set |
| Device composition | Fixing elements, 1 cover plate |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws |
| Type of front plate | Plain |
| Height | Nominal: 150 mm, Real: 149.5 mm |
| Width | Nominal: 800 mm, Fixing centers: 678 mm, Real: 702 mm |
| Depth | Real : 12 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 71.000 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 2.000 cm |
| Package 1 Weight | 1.984 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 172.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
