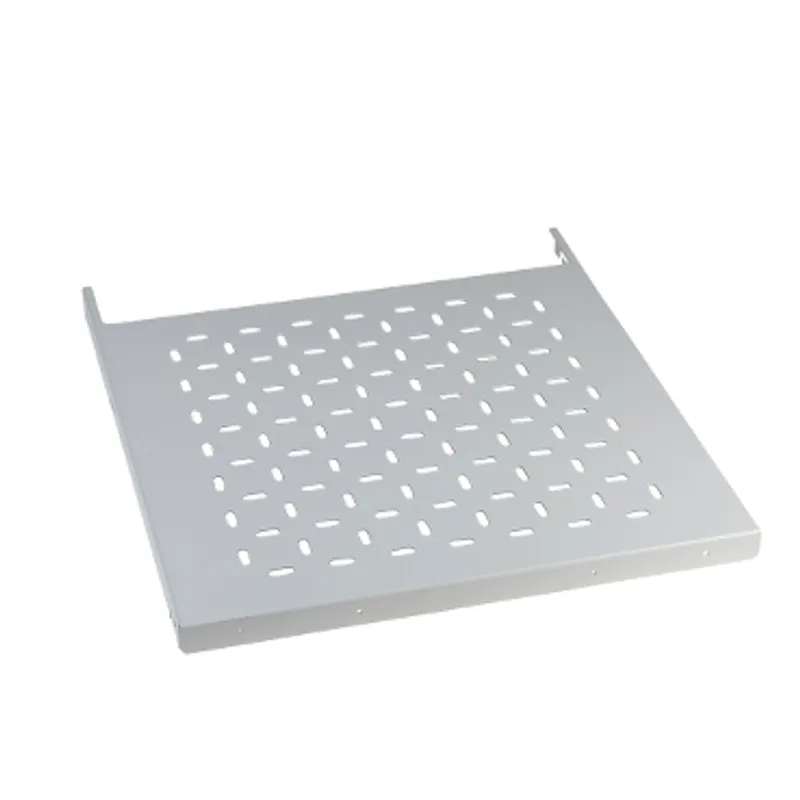

Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800 D600mm, steel
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.22 kg |
Shipping & availability
When can NSYFXT8060 be shipped?
NSYFXT8060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYFXT8060 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYFXT8060 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFXT8060, subject to availability and destination.
Fixed tray made from grey steel (RAL 7035) for Spacial SF and Spacial SM enclosures The product is to be fixed on direct to the structure and 40mm cross rails The kit is made up of 1 fixed tray and fixing elements
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Installation accessory |
| Product or component type | Fixed tray |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - W: 800 mm D: 600 mm |
| Mounting support | Direct to the structure, 40 mm cross rails |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | 1 fixed tray, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Adjustment | Adjustable in depth every 25 mm |
| Maximum load | 150 kg evenly distributed |
| Height | 30 mm |
| Width | 682 mm |
| Depth | 490 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 68.500 cm |
| Package 1 Width | 51.000 cm |
| Package 1 Length | 3.000 cm |
| Package 1 Weight | 4.224 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 91.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 224.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
