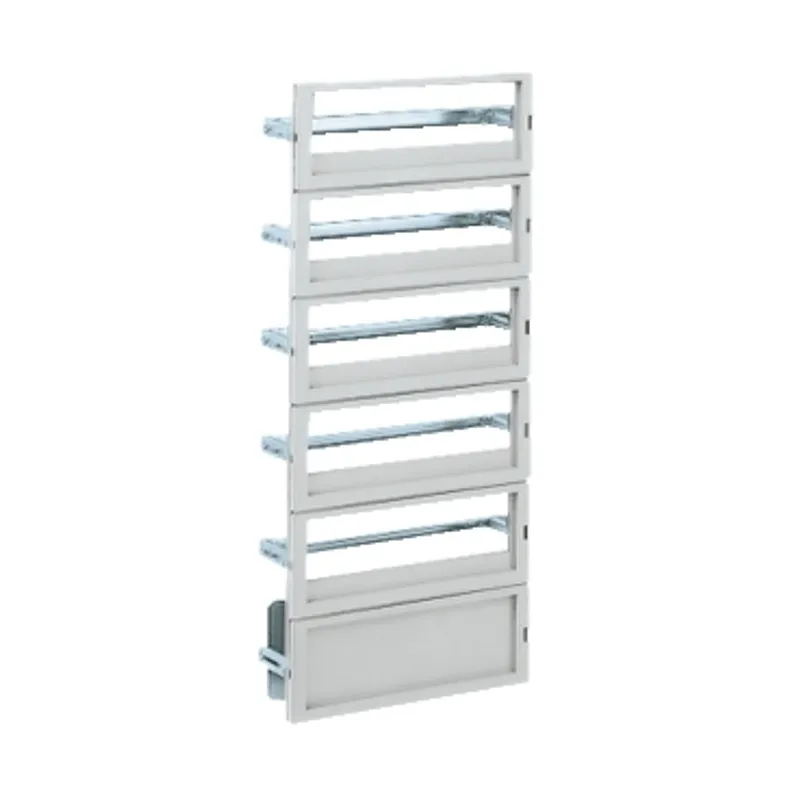

DLP modular dist chassis 165modules(18mm) insulating material for PLA H1000xW750

Name: DLP modular dist chassis 165modules(18mm) insulating material for PLA H1000xW750
Brand: Schneider Electric
SKU: NSYDLP165G

MPN: NSYDLP165G · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PanelSeT PLA
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	9.46 kg

Shipping & availability

When can NSYDLP165G be shipped?

NSYDLP165G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYDLP165G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYDLP165G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLP165G, subject to availability and destination.

Specifications

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Application	Modular distribution application, Multi-purpose
Product or component type	Chassis
Device short name	DLP
For enclosure nominal dimensions	-
Mounting location	Front of enclosure
Range compatibility	PanelSeT PLA, PanelSeT PHD
Device composition	1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 plain front panel, 5 front panels with 35 mm DIN rail
Additional information	IP2x not respected when chassis is mounted at 67 mm
Material	Front panel: self-extinguishing, Chassis structure and rails: galvanised steel
Colour	Front panel: grey (RAL 7035)
Fixing mode	By fixing element - on front with supports location
Adjustment	In height from 40 to 85 mm for DIN rail
Number of horizontal rows	5
Total number of 18 mm modules	165
Type of front plate	Plain and cut-out plates
Number of cut-out	5 cut-outs
Height	1000 mm
Width	750 mm
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.000 cm
Package 1 Width	68.000 cm
Package 1 Length	93.500 cm
Package 1 Weight	9.460 kg
Unit Type of Package 2	PAM
Number of Units in Package 2	8
Package 2 Height	130.000 cm
Package 2 Width	100.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	89.000 kg
Warranty	18 months
