Available on request

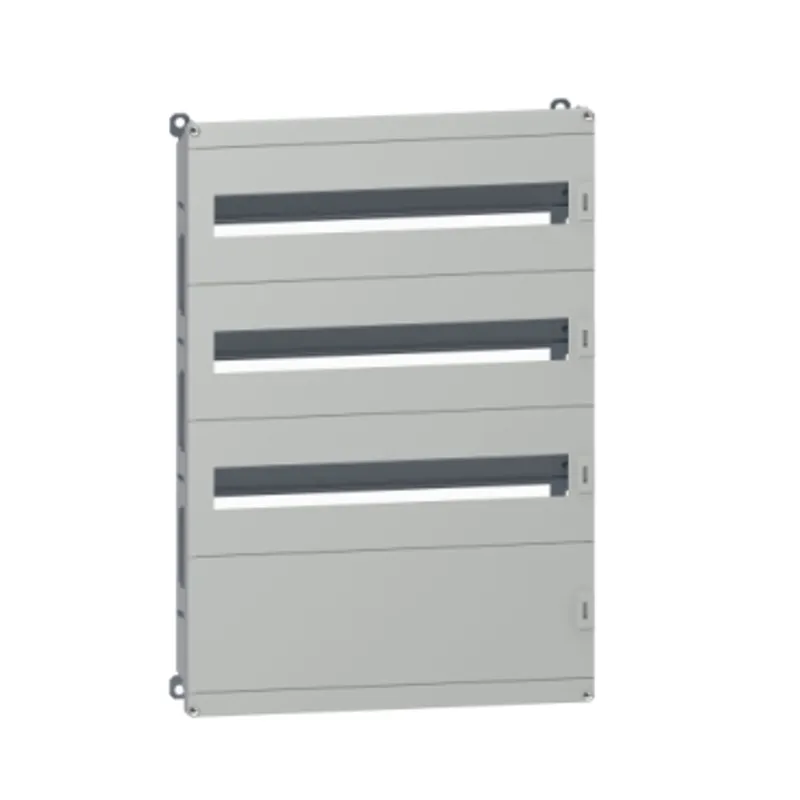

Modular chassis DLM type for PanelSeT WM enclosure, 66 modules, H700xW500mm.
MPN: NSYDLM66 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6.41 kg |
Shipping & availability
When can NSYDLM66 be shipped?
NSYDLM66 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLM66 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLM66 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLM66, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose, Modular distribution application |
| Product or component type | Chassis |
| Device short name | DLM |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure, Step slide |
| Range compatibility | PanelSeT S3D, PanelSeT CRN |
| Device composition | 1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panels with 35 mm DIN rail, 1 plain front panel with mounting plate |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Front panel: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Fixing mode | By fixing element - on front and back with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 3 |
| Total number of 18 mm modules | 66 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 3 cut-outs |
| Height | 653 mm |
| Width | 455 mm |
| Depth | 101.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 46.500 cm |
| Package 1 Length | 66.500 cm |
| Package 1 Weight | 6.410 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 130.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 205.000 kg |
| Warranty | 18 months |
