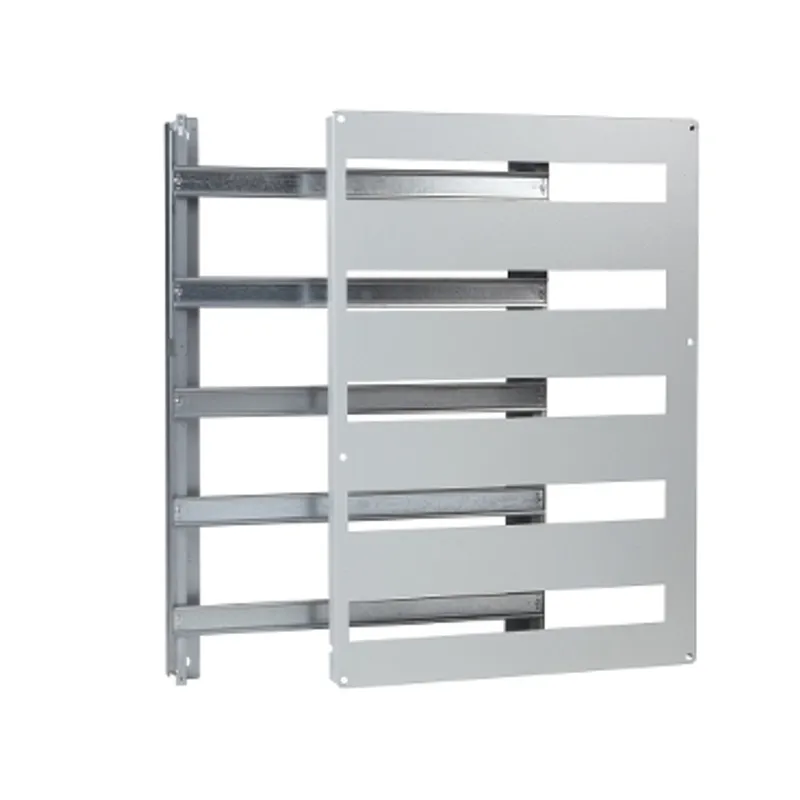

Modular chassis DLCR type for PanelSeT WM steel enclosure, 64 modules, H600xW400
MPN: NSYDLCR64 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.51 kg |
Shipping & availability
When can NSYDLCR64 be shipped?
NSYDLCR64 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLCR64 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLCR64 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLCR64, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application, Multi-purpose |
| Product or component type | Chassis |
| Device short name | DL |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT CRN |
| Device composition | 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 front panel, 4 35 mm DIN rail |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Front panel: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Fixing mode | By fixing element - on back with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 4 |
| Total number of 18 mm modules | 64 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 4 cut-outs |
| Height | 555 mm |
| Width | 355 mm |
| Depth | 110 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 38.000 cm |
| Package 1 Length | 61.000 cm |
| Package 1 Weight | 3.512 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 52.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 35.120 kg |
| Warranty | 18 months |
