Available on request

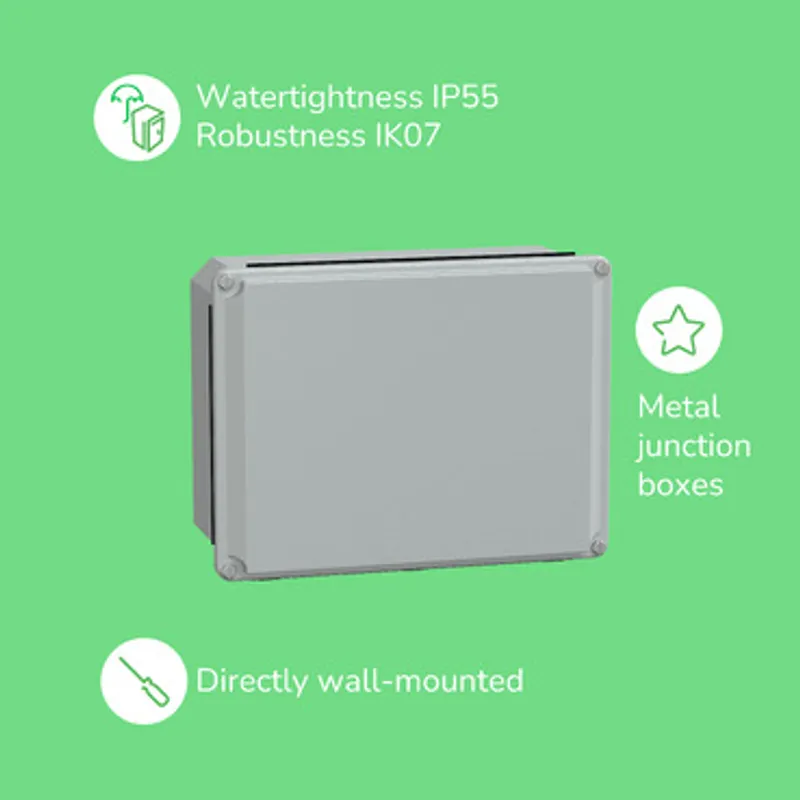

Metal industrial cut-out box - low plain cover - H155xW105xD61 - IP55 - grey
MPN: NSYDB1510M · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SDB |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.46 kg |
Shipping & availability
When can NSYDB1510M be shipped?
NSYDB1510M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDB1510M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDB1510M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDB1510M, subject to availability and destination.
Specifications
Specifications
| Range of product | PanelSeT SDB |
| Device application | Multi-purpose |
| Product or component type | Junction box |
| enclosure type | Empty enclosure |
| Type of front cover | Low plain cover |
| Colour | Light grey (RAL 7035) |
| Enclosure nominal height | 155 mm |
| Enclosure nominal width | 105 mm |
| Enclosure nominal depth | 61 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 1 cover screw |
| Cable entry number | 4 diameter: 20.5 mm (M20), 4 diameter: 25.5 mm (M25), 1 diameter: 32.5 mm (M32) |
| Cover fixing | Screw |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Net weight | 0.458 kg |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 402.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 14.000 cm |
| Package 2 Width | 33.500 cm |
| Package 2 Length | 34.000 cm |
| Package 2 Weight | 4.020 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 630 |
| Package 3 Height | 159.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 280.000 kg |
| Warranty (in months) | 18 |
