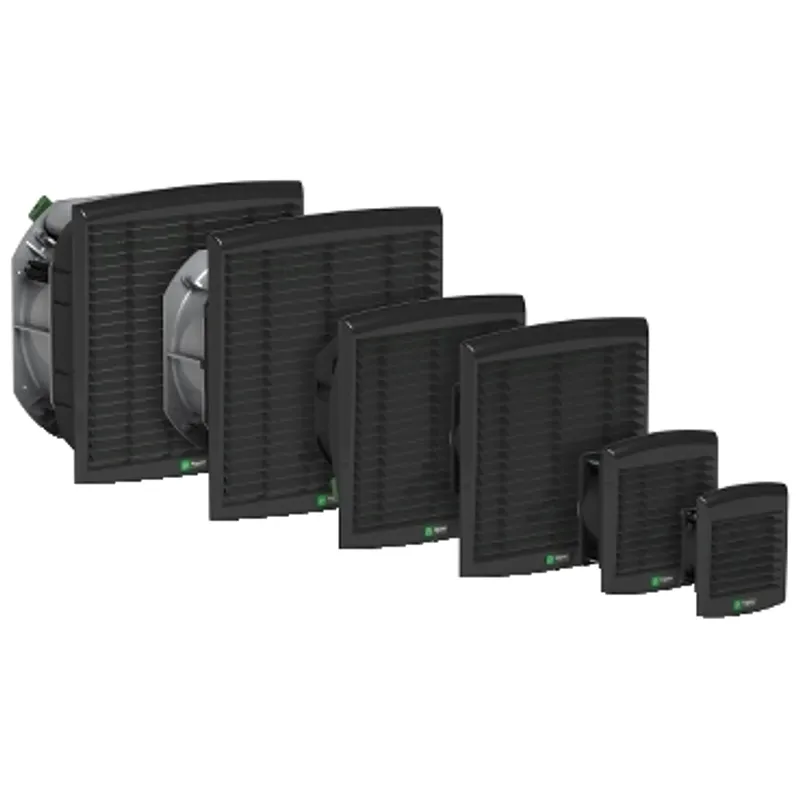

ClimaSys CV - CSVS SmartFan 85m3/h 230V IP54

Name: ClimaSys CV - CSVS SmartFan 85m3/h 230V IP54
Brand: Schneider Electric
SKU: NSYCVF85M230DG

MPN: NSYCVF85M230DG · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ClimaSys CV
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.86 kg

Shipping & availability

When can NSYCVF85M230DG be shipped?

NSYCVF85M230DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCVF85M230DG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCVF85M230DG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF85M230DG, subject to availability and destination.

Specifications

Range	ClimaSys
Product name	ClimaSys CV
Product or component type	Fan
Range compatibility	Spacial, Thalassa
Type of filter	G2
Flow rate	Free flow rate with standard filter: 85 m3/h at 50 Hz, Free flow rate with standard filter: 98 m3/h at 60 Hz
[Us] rated supply voltage	175...253 V
Input voltage	230 V 50/60 Hz
Certification	CE, EAC, EMC directive 89/336 EEC
Additional information	Must not be connected to a power conversion module, inverter or UPS power supply
Absorbed power	15 W 50 Hz, 17 W 60 Hz
[In] rated current	0.121 A 50 Hz, 0.097 A 60 Hz
Noise level < at	46…49 dB
Bearing type	Ball
Height	External: 170 mm
Width	External: 150 mm
Depth	External : 62 mm
Cut-out dimensions	125 x 125 mm
Net weight	0.860 kg
Material	Outlet grille: injected thermoplastic (PC), Motor support: injected thermoplastic (ASA PC)
Colour	Outlet grille: smoked black (RAL 9005), Motor support: black (RAL 9005)
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-40…70 °C
Maximum pressure	50 Pa flow rate 0 m³/h
Connections - terminals	Faston connector
IP degree of protection	IP54
Device composition	1 axial motor, 1 external protective transparent smoked grille: front, 1 smart filter with dust sensor, 1 fan sensor ready to be mounted: rear of outlet grille, 1 cable gland, 1 cut-out template
Condition of use	Filter must be cleaned and replaced regularly, Flow rates depends on the work point, see ProClima software, Overfrequent filter replacement should be avoided, Surrounding environment must be relatively clean, Outside temperature must be 5 °C lower than inside temperature
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.600 cm
Package 1 Width	17.400 cm
Package 1 Length	18.600 cm
Package 1 Weight	860.000 g
Unit Type of Package 2	CAR
Number of Units in Package 2	6
Package 2 Height	27.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	7.486 kg
Warranty (in months)	18
