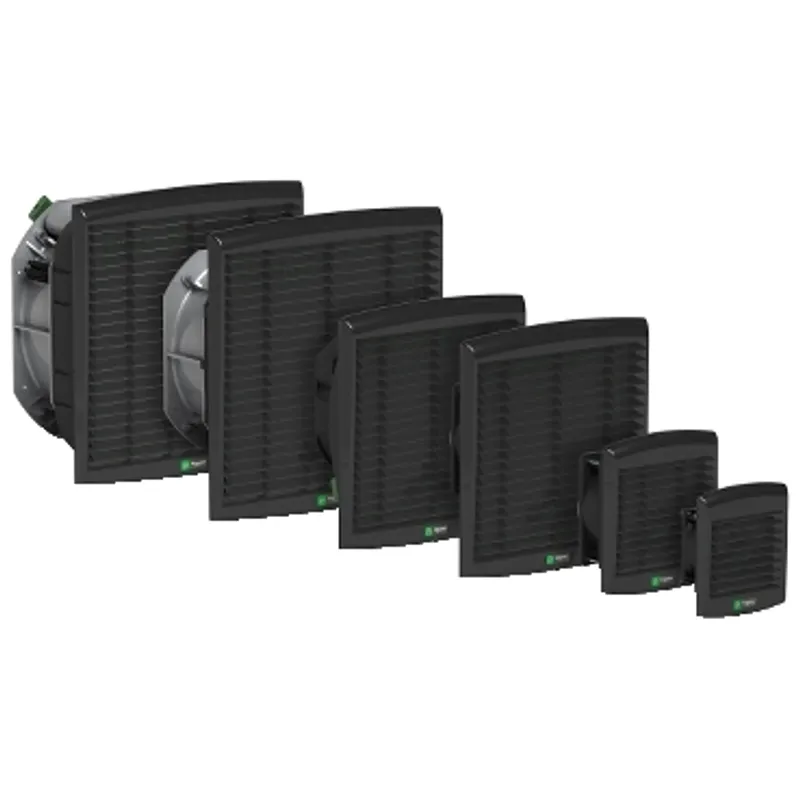

ClimaSys CV - CSVS SmartFan 850m3/h 400V IP54
MPN: NSYCVF850M400DG · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.5 kg |
Shipping & availability
When can NSYCVF850M400DG be shipped?
NSYCVF850M400DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF850M400DG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF850M400DG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF850M400DG, subject to availability and destination.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Range compatibility | Spacial |
| Type of filter | G2 |
| Flow rate | Free flow rate with standard filter: 803 m3/h at 50 Hz, Free flow rate with standard filter: 931 m3/h at 60 Hz |
| [Us] rated supply voltage | 396...466 V |
| Input voltage | 400 V 50/60 Hz |
| Certification | CE, EAC, EMC directive 89/336 EEC |
| Absorbed power | 126 W 50 Hz, 126 W 60 Hz |
| [In] rated current | 0.226 A 50 Hz, 0.232 A 60 Hz |
| Noise level < at | 75…77 dB |
| Bearing type | Ball |
| Height | External: 336 mm |
| Width | External: 316 mm |
| Depth | External : 162 mm |
| Cut-out dimensions | 291 x 291 mm |
| Net weight | 4.500 kg |
| Material | Outlet grille: injected thermoplastic (PC), Motor support: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: smoked black (RAL 9005), Motor support: black (RAL 9005) |
| Ambient air temperature for operation | -15…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 170 Pa flow rate 0 m³/h |
| Connections - terminals | Terminal block |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 1 external protective transparent smoked grille: front, 1 smart filter with dust sensor, 1 fan sensor ready to be mounted: rear of outlet grille, 1 cable gland, 1 cut-out template |
| Condition of use | Filter must be cleaned and replaced regularly, Flow rates depends on the work point, see ProClima software, Overfrequent filter replacement should be avoided, Surrounding environment must be relatively clean, Outside temperature must be 5 °C lower than inside temperature |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.500 cm |
| Package 1 Width | 33.000 cm |
| Package 1 Length | 34.500 cm |
| Package 1 Weight | 4.518 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 45.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 13.554 kg |
| Warranty (in months) | 18 |
