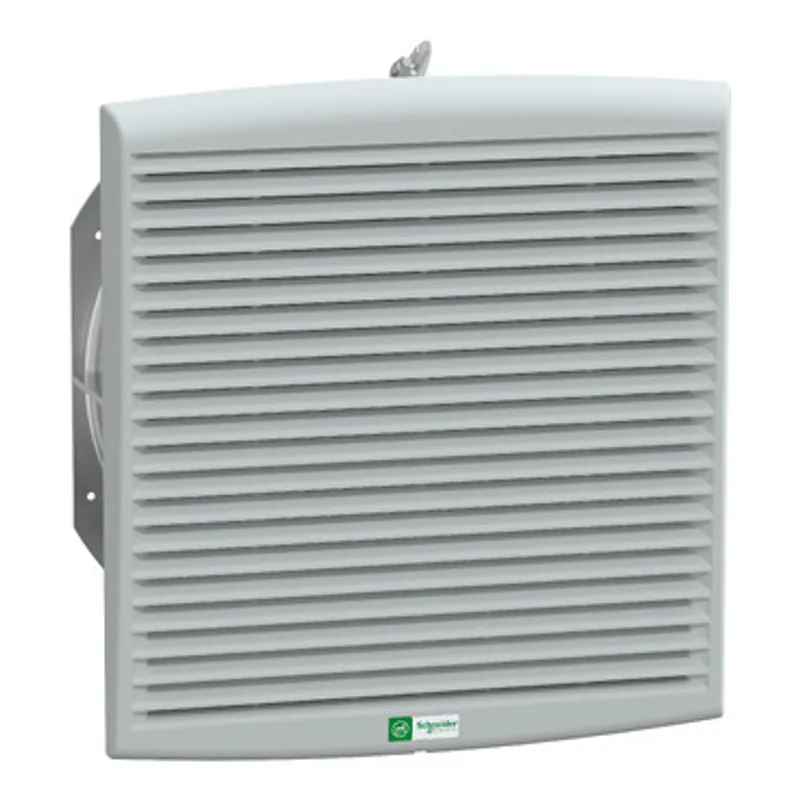

ClimaSys forced vent. IP54, 850m3/h, 115V, with outlet grille and filter G2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.1 kg |
Shipping & availability
When can NSYCVF850M115PF be shipped?
NSYCVF850M115PF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF850M115PF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF850M115PF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF850M115PF, subject to availability and destination.
This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 170 Pa It has a power range of 145 W 50 Hz and 182 W 60 Hz, and a free flow rate of 983 m3/h at 50 Hz and 944 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -15 to 60°C It has a terminal block and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 77-78 dB The cut-out dimensions of the fan are 291 x 291 mm This fan also comes with an anti-insect filter included Protection IP54.
Specifications
Specifications
| Lead time | Usually Ships within 4 Weeks |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 983 m3/h at 50 Hz, Free flow rate with standard filter: 944 m3/h at 60 Hz |
| [Us] rated supply voltage | 103...122 V |
| Input voltage | 115 V 50/60 Hz |
| Absorbed power | 145 W 50 Hz, 182 W 60 Hz |
| [In] rated current | 1.279 A 50 Hz, 1.6 A 60 Hz |
| Noise level < at | 77…78 dB |
| Bearing type | Ball |
| Height | External: 336 mm |
| Width | External: 316 mm |
| Depth | External : 162 mm |
| Cut-out dimensions | 291 x 291 mm |
| Net weight | 4.1 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -15…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 170 Pa flow rate 0 m³/h |
| Connections - terminals | Terminal block |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template |
| Condition of use | Filter must be cleaned and replaced regularly, Overfrequent filter replacement should be avoided, Outside temperature must be 5 °C lower than inside temperature, Flow rates depends on the work point, see ProClima software, Surrounding environment must be relatively clean |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.500 cm |
| Package 1 Width | 33.000 cm |
| Package 1 Length | 43.000 cm |
| Package 1 Weight | 4.608 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 96.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 124.000 kg |
| Warranty (in months) | 18 |
