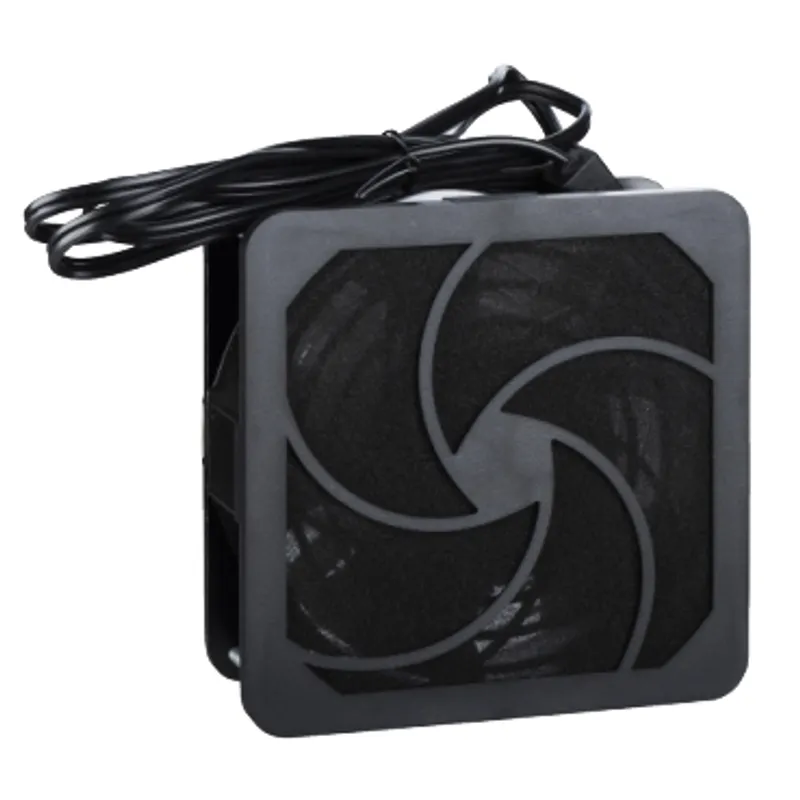

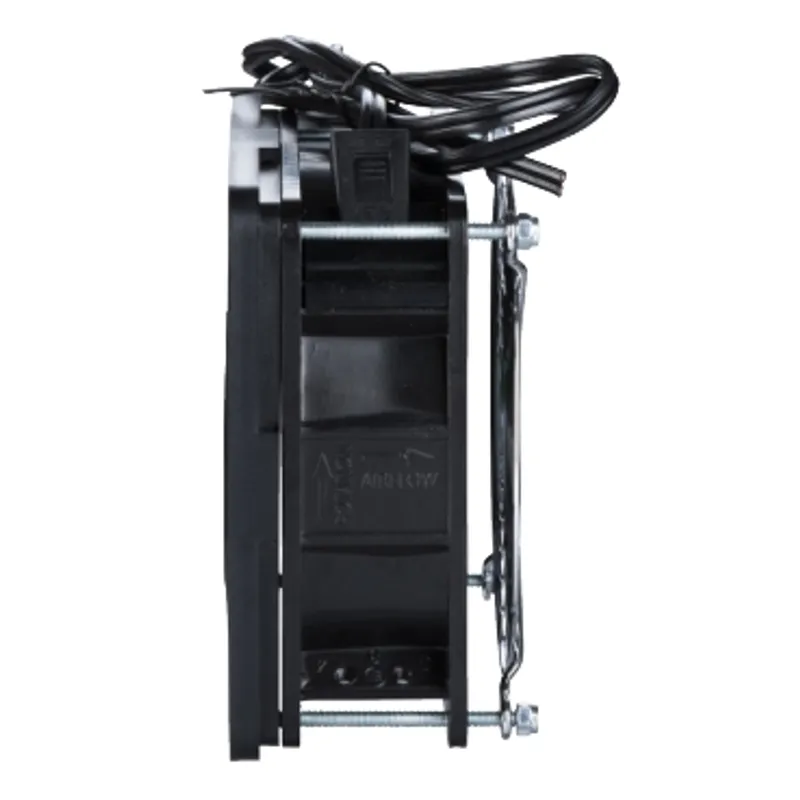

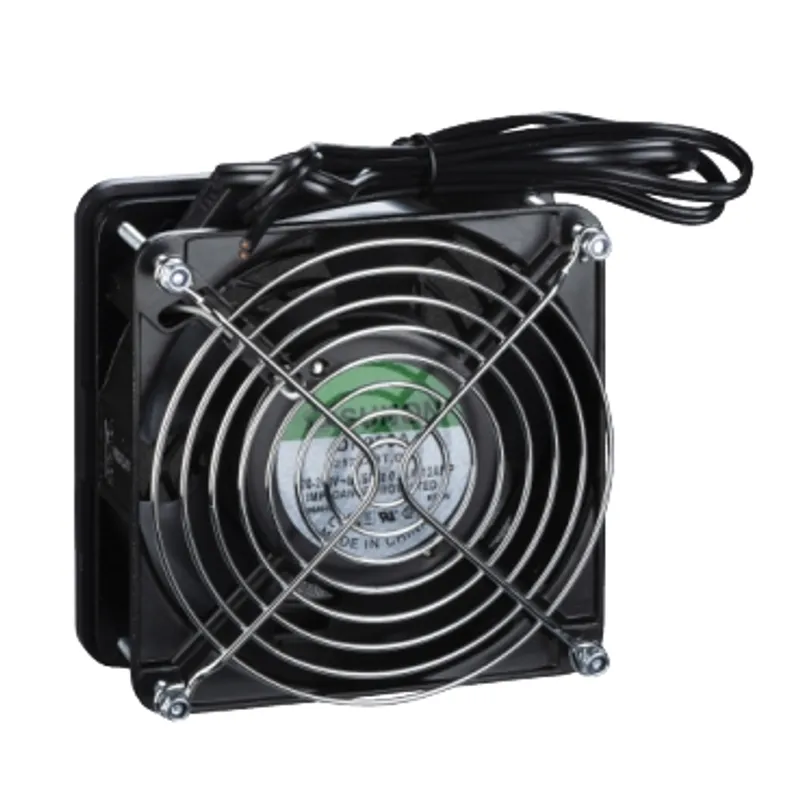

Climasys forced vent. 65 m3/hour, 230V, with outlet grille plastic and filter
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 714 kg |
Shipping & availability
When can NSYCVF65M230PF be shipped?
NSYCVF65M230PF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF65M230PF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF65M230PF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF65M230PF, subject to availability and destination.
This product is a fan that is designed to provide reliable and efficient cooling It is made of ABS (acrylonitrile butadiene-styrene) and is available in black color The fan has a standard ventilation filter and a cut-out dimension of Ø 108 mm It has an IP20 degree of protection and an input voltage of 230 V 50/60 Hz It has a free flow rate of 170 m3/h without filter or grille, and a free flow rate of 65 m3/h with standard filter at 50 Hz It comes with a filter made of polyurethane foam, an outlet grille, and two protective grilles on the front and rear surfaces Cut-out dimensions 108 mm.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate without filter or grille: 170 m3/h, Free flow rate with standard filter: 65 m3/h at 50 Hz |
| Input voltage | 230 V 50/60 Hz |
| Height | External: 124 mm |
| Width | External: 124 mm |
| Depth | External : 55 mm |
| Cut-out dimensions | Ø 108 mm |
| Material | Outlet grille: ABS (acrylonitrile butadiene-styrene), Filter: polyurethane foam |
| Colour | Outlet grille: black, Filter: black |
| IP degree of protection | IP20 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 714.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 30.000 cm |
| Package 2 Weight | 7.576 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 150 |
| Package 3 Height | 53.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 125.550 kg |
| Warranty (in months) | 18 |
