Available on request

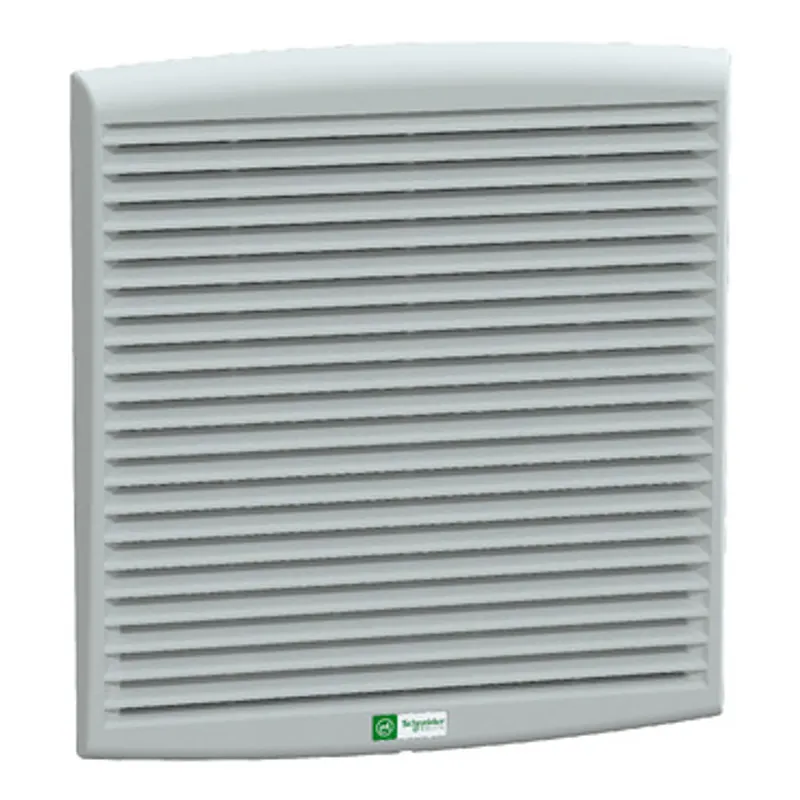

ClimaSys forced vent. IP54, 560m3/h, 115V, with outlet grille and filter G2
MPN: NSYCVF560M115PF · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.2 kg |
Shipping & availability
When can NSYCVF560M115PF be shipped?
NSYCVF560M115PF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF560M115PF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF560M115PF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF560M115PF, subject to availability and destination.
Specifications
Specifications
| Lead time | Usually Ships within 4 Weeks |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 562 m3/h at 50 Hz, Free flow rate with standard filter: 586 m3/h at 60 Hz |
| [Us] rated supply voltage | 103...122 V |
| Input voltage | 115 V 50/60 Hz |
| Certification | CSA |
| Absorbed power | 65 W 50 Hz, 83 W 60 Hz |
| [In] rated current | 0.6 A 50 Hz, 0.72 A 60 Hz |
| Noise level < at | 59 dB |
| Bearing type | Ball |
| Height | External: 336 mm |
| Width | External: 316 mm |
| Depth | External : 161 mm |
| Cut-out dimensions | 291 x 291 mm |
| Net weight | 3.2 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -15…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 140 Pa flow rate 0 m³/h |
| Connections - terminals | Terminal block |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template |
| Condition of use | Outside temperature must be 5 °C lower than inside temperature, Overfrequent filter replacement should be avoided, Flow rates depends on the work point, see ProClima software, Filter must be cleaned and replaced regularly, Surrounding environment must be relatively clean |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.000 cm |
| Package 1 Width | 32.000 cm |
| Package 1 Length | 34.000 cm |
| Package 1 Weight | 3.800 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 107.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 103.200 kg |
| Warranty (in months) | 18 |
