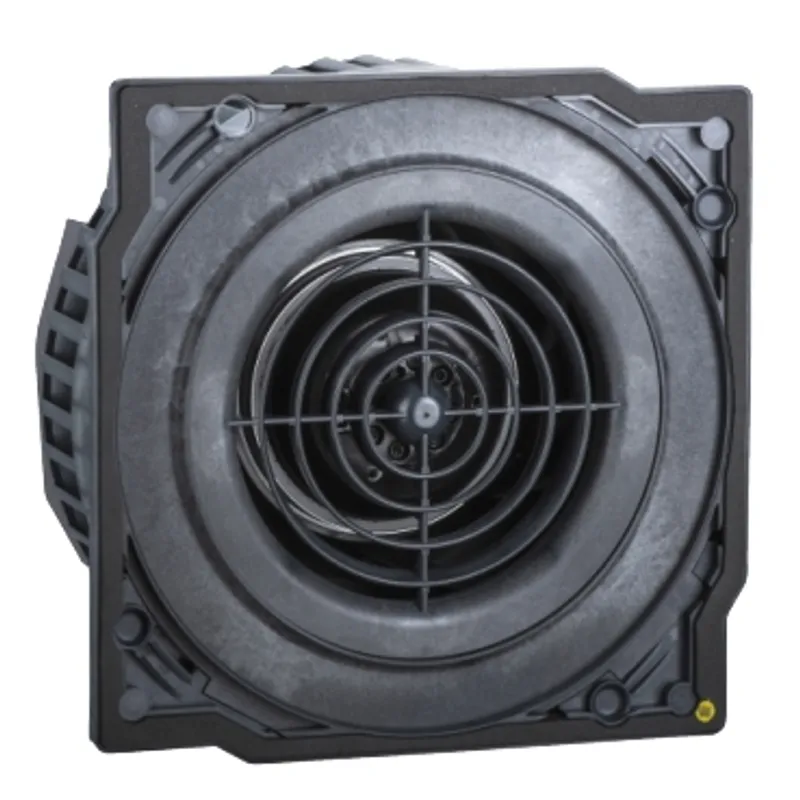

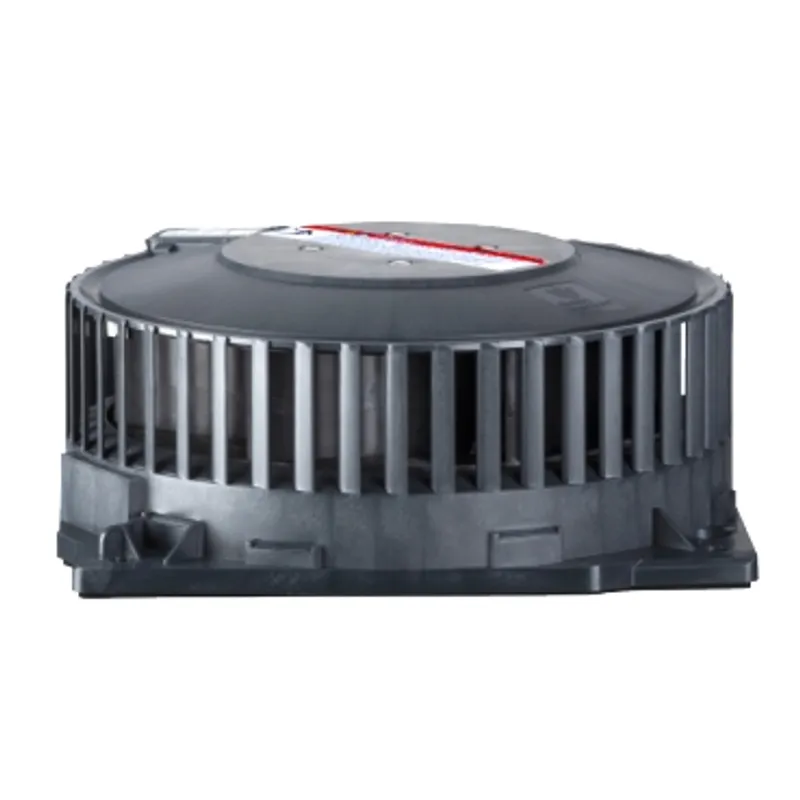

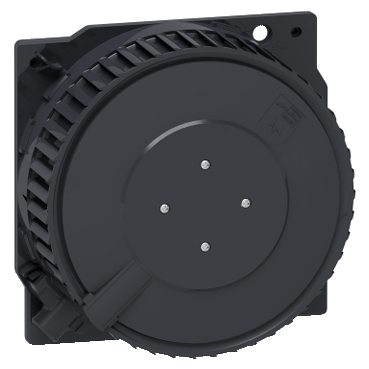

ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.7 kg |
Shipping & availability
When can NSYCVF550M230FB be shipped?
NSYCVF550M230FB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF550M230FB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF550M230FB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF550M230FB, subject to availability and destination.
ClimaSys outdoor heavy duty 72,88W fanbox without grille and filter ensures effective temperature control inside PHD, S3HD and SFHD enclosures The fan performs free flow rate of 550 m3/h at 50 Hz and 550 m3/h at 60 Hz Motor mounted on ball bearing Equipped with spring clamp terminal The external width is 223mm, height is 223mm and depth is 90mm The accessory is made up of 1 fanbox and 4 screws The color is dark grey (RAL 7016) Ingress protection rating is IP44 (IP55 for grid) Input voltage is 230 V AC 50/60 Hz Rated current is 0,3-0,4A 50 Hz
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fanbox without grille and filter |
| Application | Outdoor heavy duty |
| Range compatibility | Thalassa PHD, Spacial S3HD, Spacial SFHD |
| Flow rate | Free flow rate: 550 m3/h at 50 Hz, 550 m3/h at 60 Hz |
| [Us] rated supply voltage | 230 V AC +/- 10 % |
| Input voltage | 230 V AC 50/60 Hz |
| Certification | CE, UL conforming to UL 508 A, CSA conforming to CSA C22.2, Ecodesign directive 2009/125/EC |
| Absorbed power | 72...88 W |
| [In] rated current | 0.3…0.4 A 50 Hz |
| Noise level < at | 60 dB |
| Bearing type | Ball |
| Height | External: 223 mm |
| Width | External: 223 mm |
| Depth | External : 90 mm |
| Net weight | 1.7 kg |
| Colour | Dark grey (RAL 7016) |
| Ambient air temperature for operation | -40…65 °C |
| Ambient air temperature for storage | -40…80 °C |
| Maximum pressure | 350 Pa flow rate 0 m³/h |
| Connections - terminals | Spring clamp terminal |
| IP degree of protection | IP55 grid:, IP44 |
| Device composition | 1 fanbox, 4 screw |
| Condition of use | Flow rates depends on the work point, see ProClima software, Overfrequent filter replacement should be avoided, Outside temperature must be 5 °C lower than inside temperature, Filter must be cleaned and replaced regularly, Surrounding environment must be relatively clean |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.000 cm |
| Package 1 Width | 26.500 cm |
| Package 1 Length | 29.000 cm |
| Package 1 Weight | 2.444 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 109.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 134.500 kg |
| Warranty (in months) | 18 |
