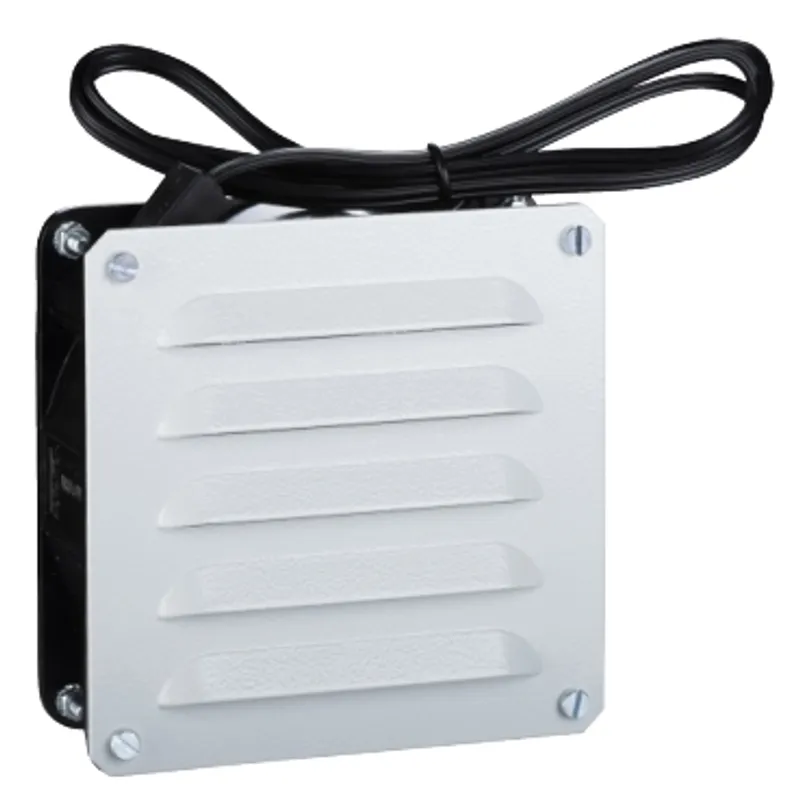

Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.04 kg |
Shipping & availability
When can NSYCVF54M230MM2 be shipped?
NSYCVF54M230MM2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF54M230MM2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF54M230MM2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF54M230MM2, subject to availability and destination.

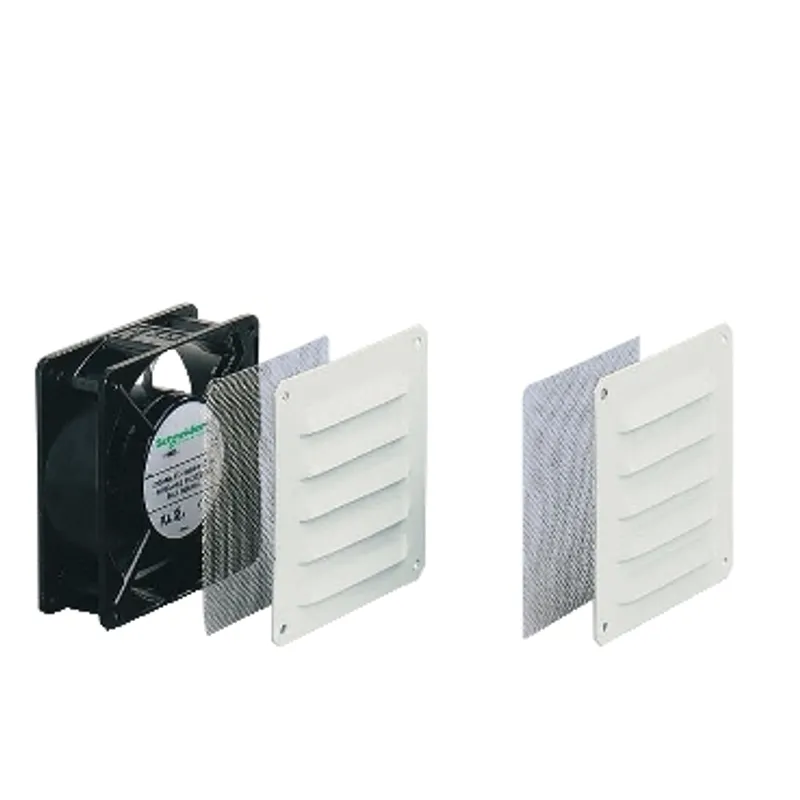

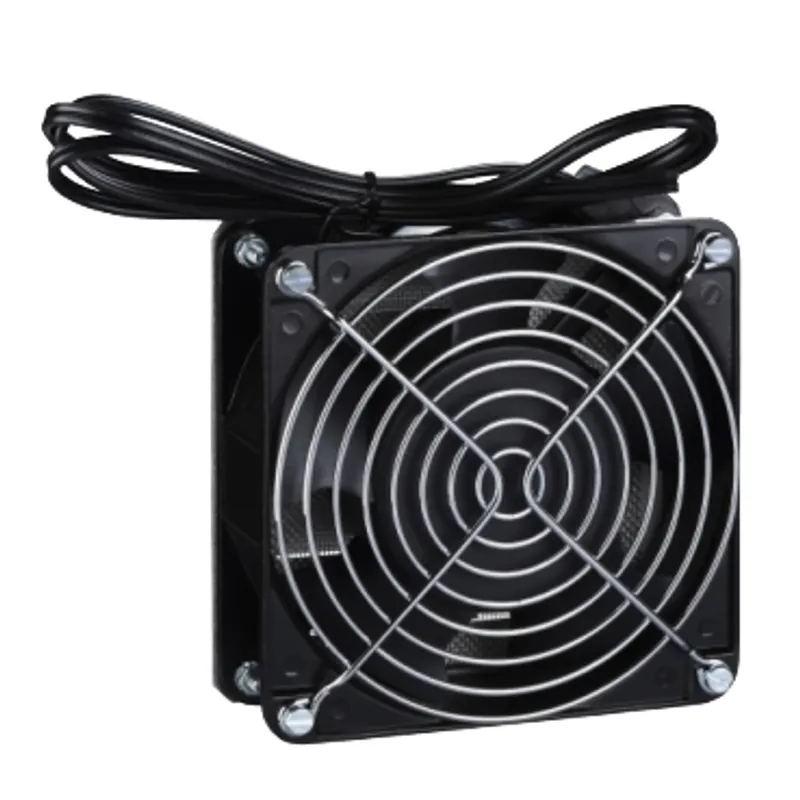

This product is a fan designed to provide reliable and efficient cooling It is made of steel for the outlet grille and stainless steel 304L for the filter It has an IP33 degree of protection and a power cord for input voltage of 230 V 50/60 Hz The fan has a free flow rate of 170 m3/h without filter or grille, and an overall flow rate of 54 m3/h at 50 Hz It comes with two anti-insect filters and two metal louvres It is available in grey (RAL 7035) color and has a cut-out dimension of 96 x 96 mm This fan also comes with an anti-insect filter included Power cable included. 2 protective grilles on the front and rear surfaces. Protection IP33.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Anti-insect |
| Flow rate | Free flow rate without filter or grille: 170 m3/h, Overall flow rate: 54 m3/h at 50 Hz |
| Input voltage | 230 V 50/60 Hz |
| Height | External: 120 mm |
| Width | External: 120 mm |
| Depth | External : 38 mm |
| Cut-out dimensions | 96 x 96 mm |
| Material | Outlet grille: steel, Filter: stainless steel 304L |
| Colour | Outlet grille: grey (RAL 7035) |
| IP degree of protection | IP33 |
| Device composition | 1 axial motor, 1 power cord, 2 anti-insect filter, 2 metal louvre |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.000 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 1.035 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.930 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 80.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 350.900 kg |
| Warranty (in months) | 18 |
