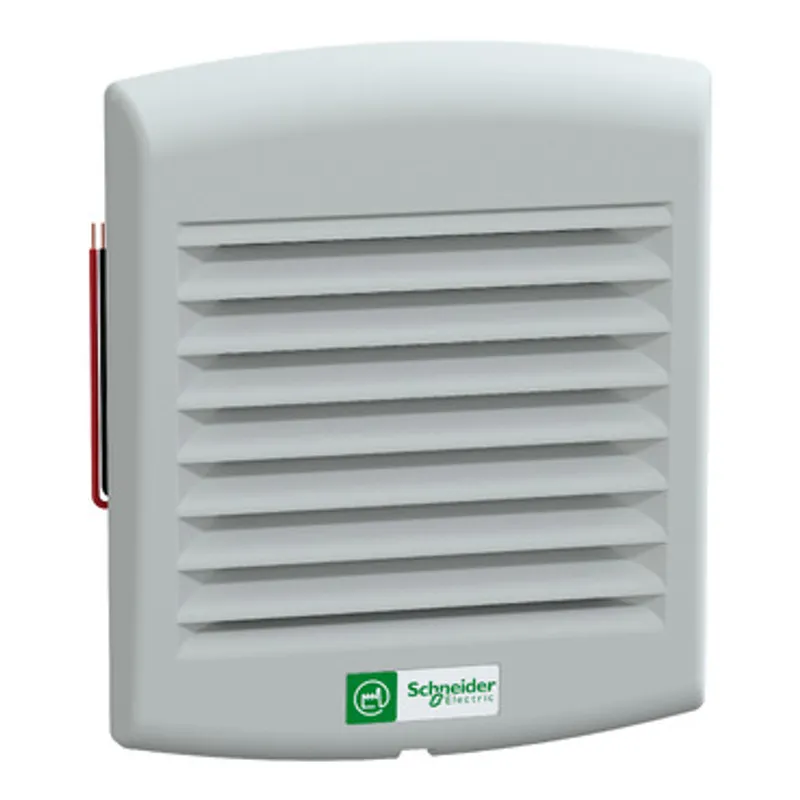

ClimaSys forced vent. IP54, 58m3/h, 24V DC, with outlet grille and filter G2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.23 kg |
Shipping & availability
When can NSYCVF38M24DPF be shipped?
NSYCVF38M24DPF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF38M24DPF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF38M24DPF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF38M24DPF, subject to availability and destination.
This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 29 Pa It has a power range of 3,6 W and a free flow rate of 58 m3/h It can be used in ambient air temperatures ranging from -10 to 70°C It has a power cable and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 40-41 dB The cut-out dimensions of the fan are 92 x 92 mm This fan also comes with an anti-insect filter included Protection IP54.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 58 m3/h |
| [Us] rated supply voltage | 10...27.6 V |
| Input voltage | 24 V DC |
| Absorbed power | 3.6 W |
| [In] rated current | 0.18 A |
| Noise level < at | 40…41 dB |
| Bearing type | Ball |
| Height | External: 137 mm |
| Width | External: 117 mm |
| Depth | External : 49 mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 0.23 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -10…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 29 Pa flow rate 0 m³/h |
| Connections - terminals | Cable |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template |
| Condition of use | Flow rates depends on the work point, see ProClima software, Filter must be cleaned and replaced regularly, Overfrequent filter replacement should be avoided, Surrounding environment must be relatively clean, Outside temperature must be 5 °C lower than inside temperature |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 14.500 cm |
| Package 1 Weight | 280.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 28.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 12.190 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 66.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 85.000 kg |
| Warranty (in months) | 18 |
