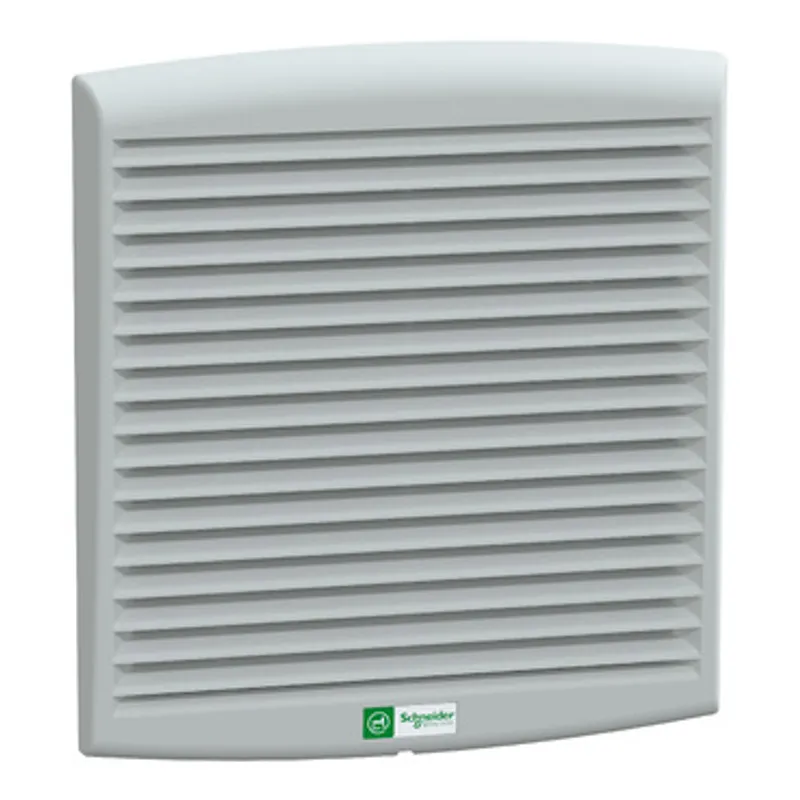

ClimaSys forced vent. IP54, 262m3/h, 24V DC, with outlet grille and filter G2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.1 kg |
Shipping & availability
When can NSYCVF300M24DPF be shipped?
NSYCVF300M24DPF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF300M24DPF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF300M24DPF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF300M24DPF, subject to availability and destination.
This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 158 Pa It has a power range of 13 W and a free flow rate of 262 m3/h It can be used in ambient air temperatures ranging from -10 to 70°C It has a power cable and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 55-56 dB The cut-out dimensions of the fan are 223 x 223 mm This fan also comes with an anti-insect filter included Protection IP54.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 262 m3/h |
| [Us] rated supply voltage | 12...30 V |
| Input voltage | 24 V DC |
| Certification | CSA |
| Absorbed power | 13 W |
| [In] rated current | 0.53 A |
| Noise level < at | 53…57 dB |
| Bearing type | Ball |
| Height | External: 268 mm |
| Width | External: 248 mm |
| Depth | External : 103.4 mm |
| Cut-out dimensions | 223 x 223 mm |
| Net weight | 1.1 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -10…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 158 Pa flow rate 0 m³/h |
| Connections - terminals | Cable |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template, 1 power cord |
| Condition of use | Overfrequent filter replacement should be avoided, Outside temperature must be 5 °C lower than inside temperature, Flow rates depends on the work point, see ProClima software, Filter must be cleaned and replaced regularly, Surrounding environment must be relatively clean |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.500 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 27.500 cm |
| Package 1 Weight | 1.360 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 28.000 cm |
| Package 2 Width | 41.000 cm |
| Package 2 Length | 59.000 cm |
| Package 2 Weight | 6.460 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 125.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 114.000 kg |
| Warranty (in months) | 18 |
