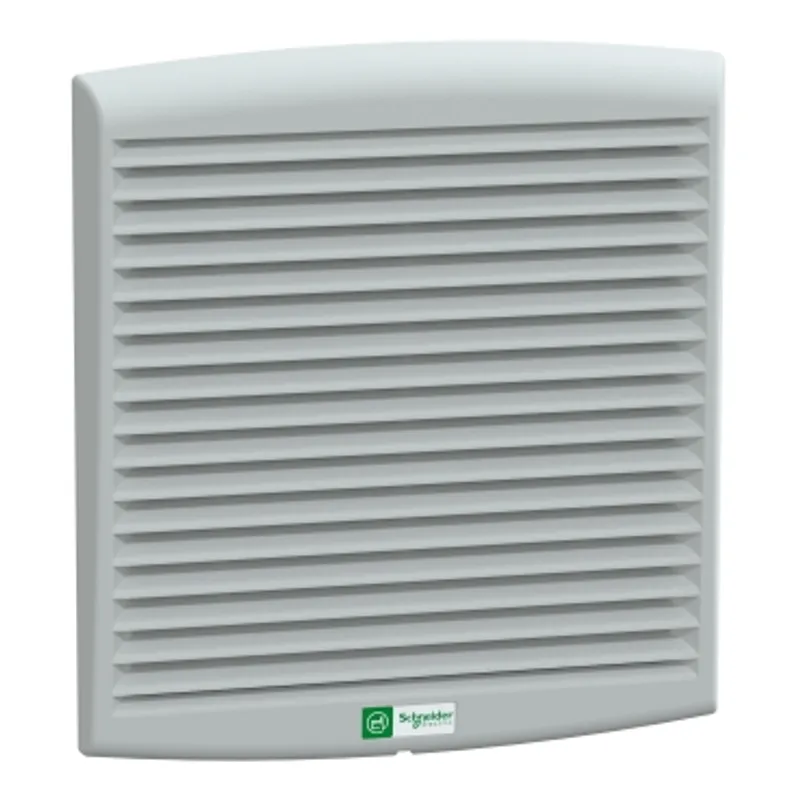

ClimaSys forced vent. IP54, 300m3/h, 230V, with outlet grille and filter G2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.3 kg |
Shipping & availability
When can NSYCVF300M230PF be shipped?
NSYCVF300M230PF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF300M230PF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF300M230PF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF300M230PF, subject to availability and destination.
This product is a forced air ventilation fan that is designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 158 Pa It has a power range of 36 W 50 Hz and 37 W 60 Hz, and a free flow rate of 300 m3/h at 50 Hz and 350 m3/h at 60 Hz It also comes with an anti-insect filter included It can be used in ambient air temperatures ranging from -10 to 70°C It has a power cord and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 55-56 dB The cut-out dimensions of the fan are 223 x 223 mm Protection IP54.
Specifications
Specifications
| Lead time | Usually Ships within 4 Weeks |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 300 m3/h at 50 Hz, Free flow rate with standard filter: 350 m3/h at 60 Hz |
| [Us] rated supply voltage | 145...253 V |
| Input voltage | 230 V 50/60 Hz |
| Certification | CSA |
| Absorbed power | 36 W 50 Hz, 37 W 60 Hz |
| [In] rated current | 0.16 A 60 Hz, 0.17 A 50 Hz |
| Noise level < at | 53…57 dB |
| Bearing type | Ball |
| Height | External: 268 mm |
| Width | External: 248 mm |
| Depth | External : 116 mm |
| Cut-out dimensions | 223 x 223 mm |
| Net weight | 1.3 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -10…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 158 Pa flow rate 0 m³/h |
| Connections - terminals | Faston connector |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template, 1 power cord |
| Condition of use | Surrounding environment must be relatively clean, Filter must be cleaned and replaced regularly, Outside temperature must be 5 °C lower than inside temperature, Overfrequent filter replacement should be avoided, Flow rates depends on the work point, see ProClima software |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.500 cm |
| Package 1 Width | 25.500 cm |
| Package 1 Length | 27.000 cm |
| Package 1 Weight | 1.642 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 28.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 7.476 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 122.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 135.000 kg |
| Warranty (in months) | 18 |
