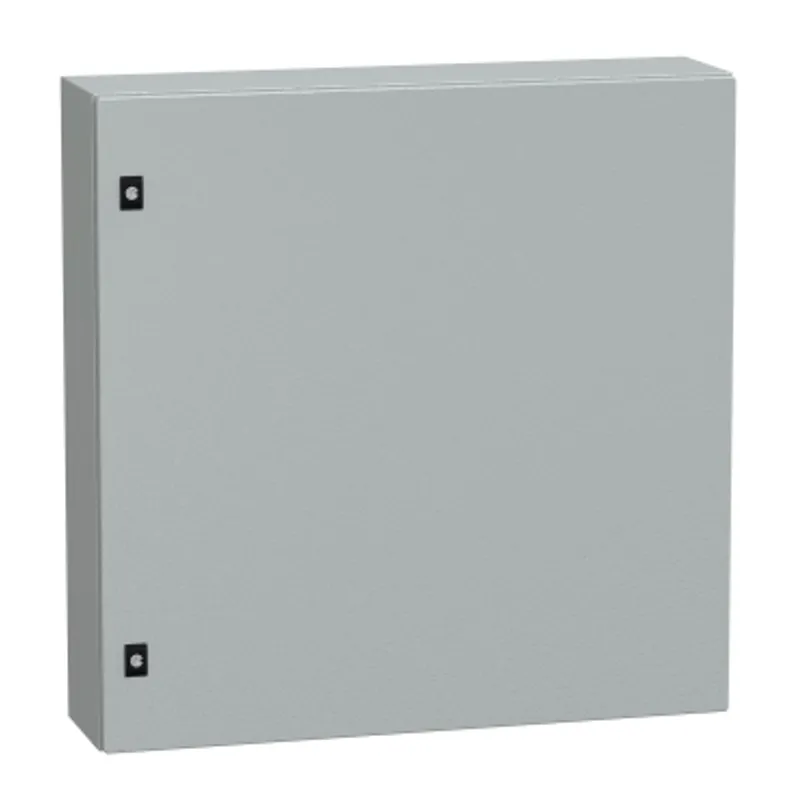

PanelSeT CRN plain door with mount.plate. H800xW800xD200 IP66 IK10 RAL7035..
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 33 kg |
Shipping & availability
When can NSYCRN88200P be shipped?
NSYCRN88200P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN88200P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN88200P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN88200P, subject to availability and destination.
Spacial CRN is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments It is certified by UL, cUL, and DNV-GL and has an IK10 (IEC62262) rating and an IP66 (IEC60529) rating, making it highly resistant to dust and water This enclosure has a nominal height, width, and depth of 800mm, 800mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door with a three-point lock and a 3mm double-bar insert, a mounting plate, and two cable gland plates at the bottom It is possible to change the opening side of the door (reversible) The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 33kg This variant has sides made from a single folded section and a back welded with double profile forming a protected sealed area The accessibility for operation is from the front This compact enclosure is c.UL certified.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 200 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door with lock, 1 mounting plate, 2 cable gland plate: bottom |
| Door type | Plain |
| Mounting plate description | Plain |
| body type | Sides made from a single folded section, Back welded with double profile forming a protected sealed area |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 33 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.000 cm |
| Package 1 Width | 81.000 cm |
| Package 1 Length | 82.500 cm |
| Package 1 Weight | 33.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 178.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 339.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
