PanelSeT CRN tspt door w/o mount.plate. H600xW400xD250 IP66 IK08 RAL7035..
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 10.92 kg |
Shipping & availability
When can NSYCRN64250T be shipped?
NSYCRN64250T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN64250T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN64250T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN64250T, subject to availability and destination.

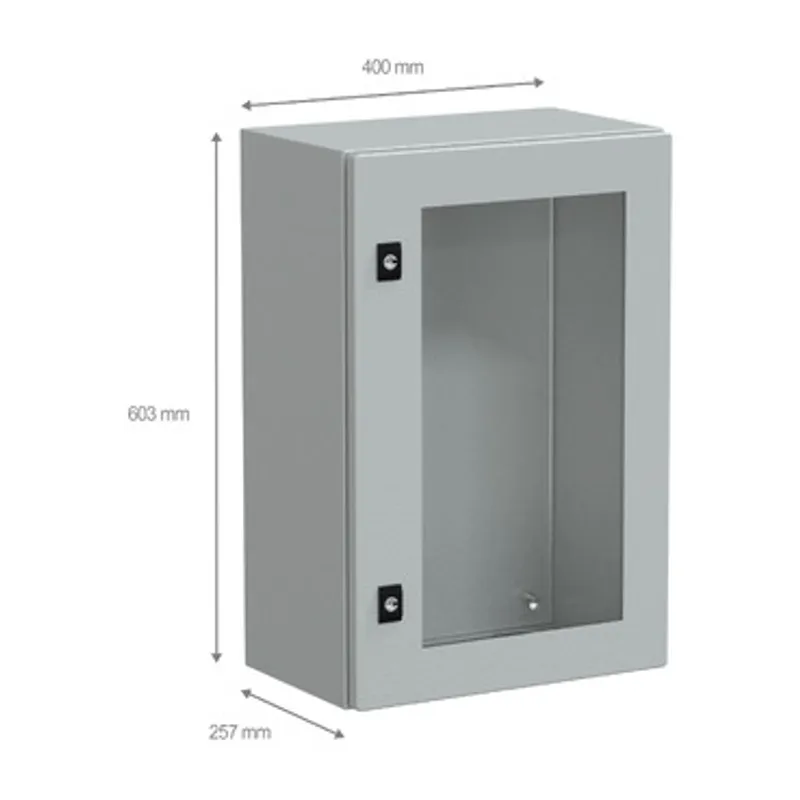

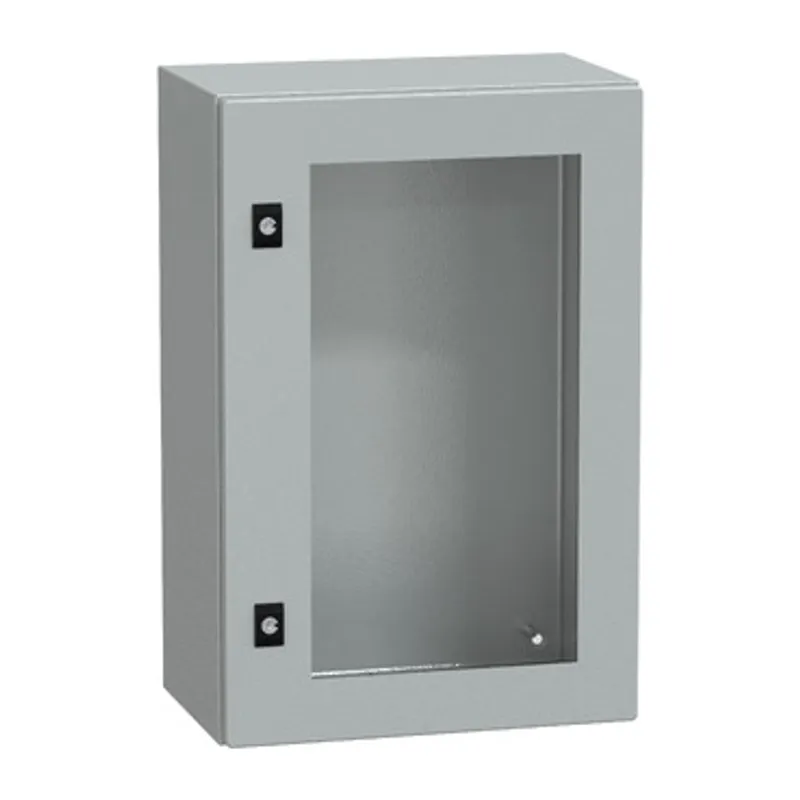

Spacial CRN is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments This enclosure has a nominal height, width, and depth of 600mm, 400mm, and 250mm, respectively The body is made of steel, while the door is made of steel and security glass The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a glazed door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 10,92kg
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 250 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| body type | Sides made from a single folded section, Back welded with double profile forming a protected sealed area |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 10.92 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.000 cm |
| Package 1 Width | 40.500 cm |
| Package 1 Length | 61.500 cm |
| Package 1 Weight | 11.010 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 202.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 312.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestPanelSeT CRN plain door with mount.plate. H600xW400xD200 IP66 IK10 RAL7035..
Available on requestPanelSeT CRN tspt door w/o mount.plate. H600xW400xD200 IP66 IK08 RAL7035..
Available on requestPanelSeT CRN plain door w/o mount.plate. H600xW400xD250 IP66 IK10 RAL7035..
Available on requestPanelSeT CRN plain door with mount.plate. H600xW400xD250 IP66 IK10 RAL7035..

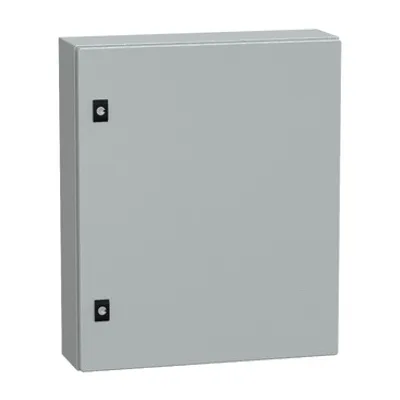

Available on requestPanelSeT CRN plain door w/o mount.plate. H600xW500xD150 IP66 IK10 RAL7035..
