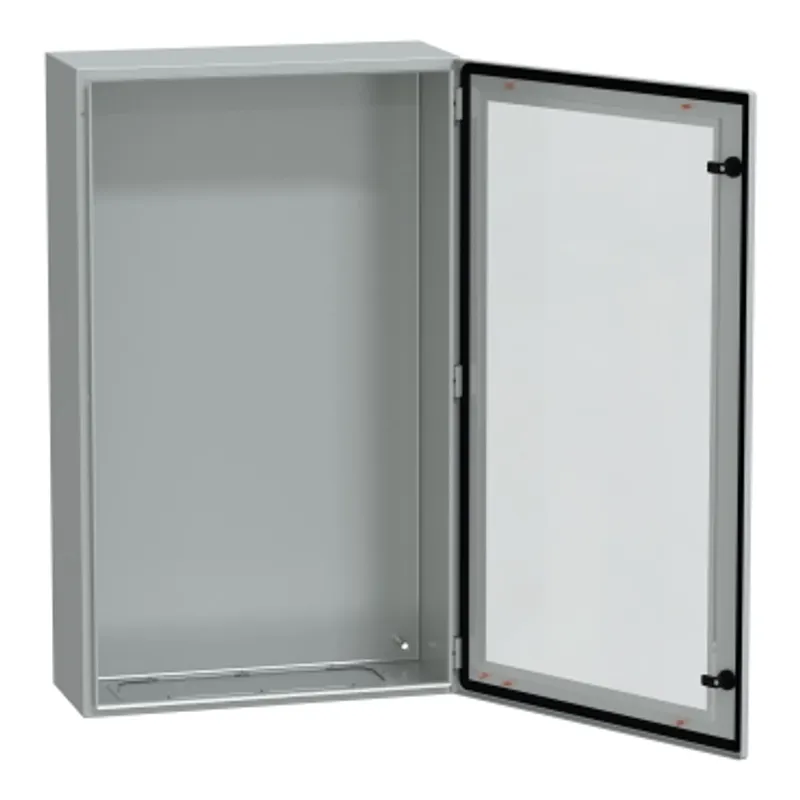

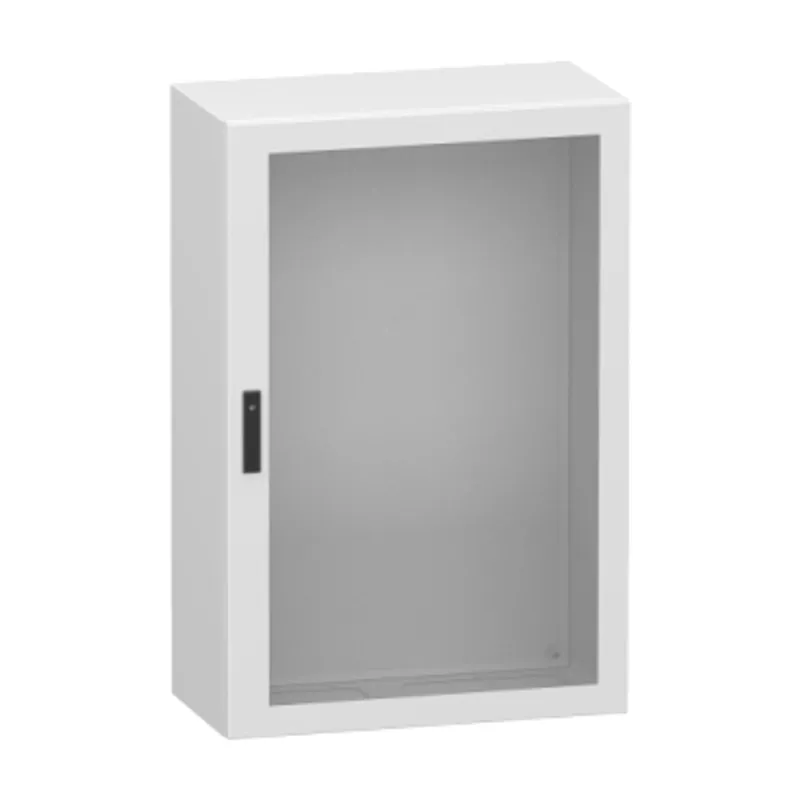

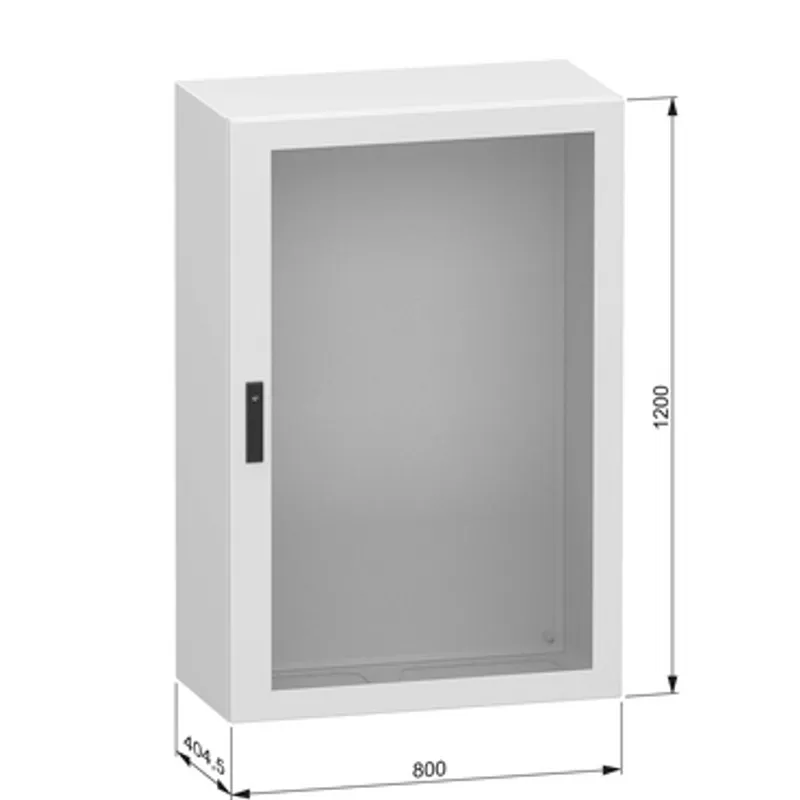

Glazed steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK08, RAL7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 46.5 kg |
Shipping & availability
When can NSYCRN128400T be shipped?
NSYCRN128400T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN128400T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN128400T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN128400T, subject to availability and destination.
Schneider Electric Glazed steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK08, RAL7035, manufacturer part number NSYCRN128400T. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1200 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 400 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 2 cable gland plate: bottom |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 5 mm double-bar |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL |
| Net weight | 46.5 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 133 cm |
| Package 1 Width | 84.5 cm |
| Package 1 Length | 49 cm |
| Package 1 Weight | 51.1 kg |
| Coverage | Core product |
| Warranty | 18 months |
More Schneider Electric parts

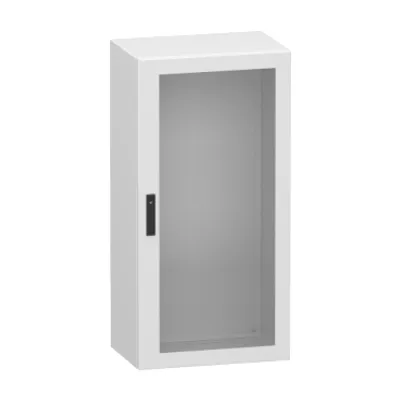

Available on requestGlazed steel door, PanelSeT CRN, without mounting plate, 1200x600x400mm, IP66, IK08, RAL7035
Available on requestPlain steel door, PanelSeT CRN, without mounting plate, 1200x800x300mm, IP66, IK10, RAL7035

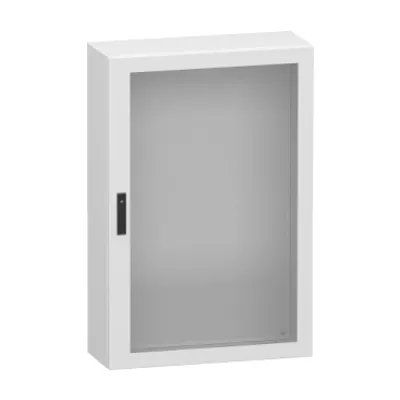

Available on requestGlazed steel door, PanelSeT CRN, without mounting plate, 1200x800x300mm, IP66, IK08, RAL7035

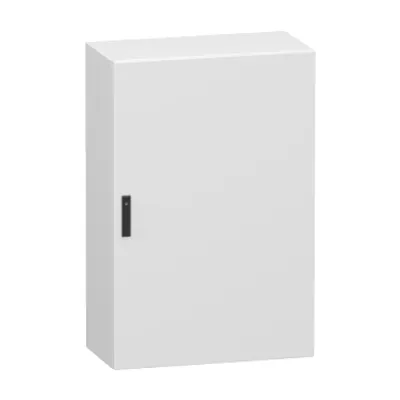

Available on requestPlain steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK10, RAL7035

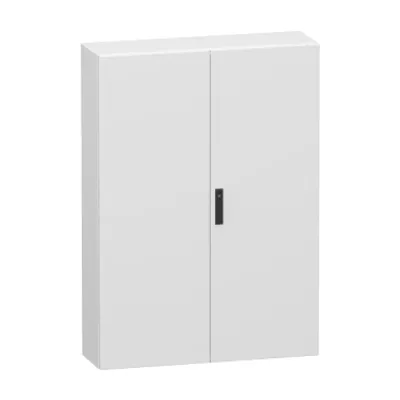

Available on requestDouble plain steel door, PanelSeT CRN, without mounting plate, 1400x1000x300mm, IP55, IK10, RAL7035

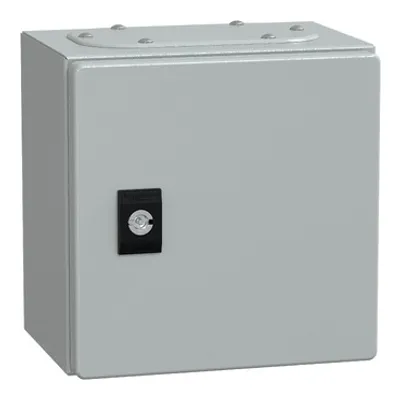

Available on requestPanelSeT CRN plain door w/o mount.plate. H200xW200xD150 IP66 IK10 RAL7035..

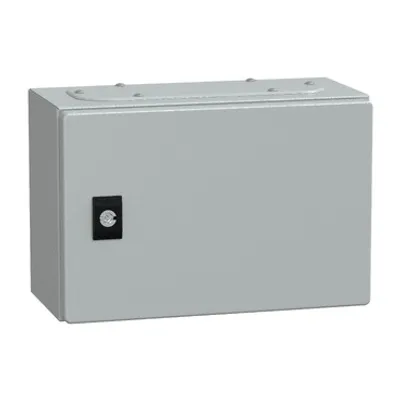

Available on requestPanelSeT CRN plain door w/o mount.plate. H250xW300xD150 IP66 IK10 RAL7035..

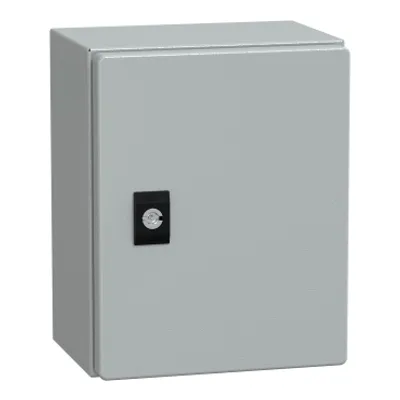

Available on requestPanelSeT CRN plain door w/o mount.plate. H250xW200xD150 IP66 IK10 RAL7035..
