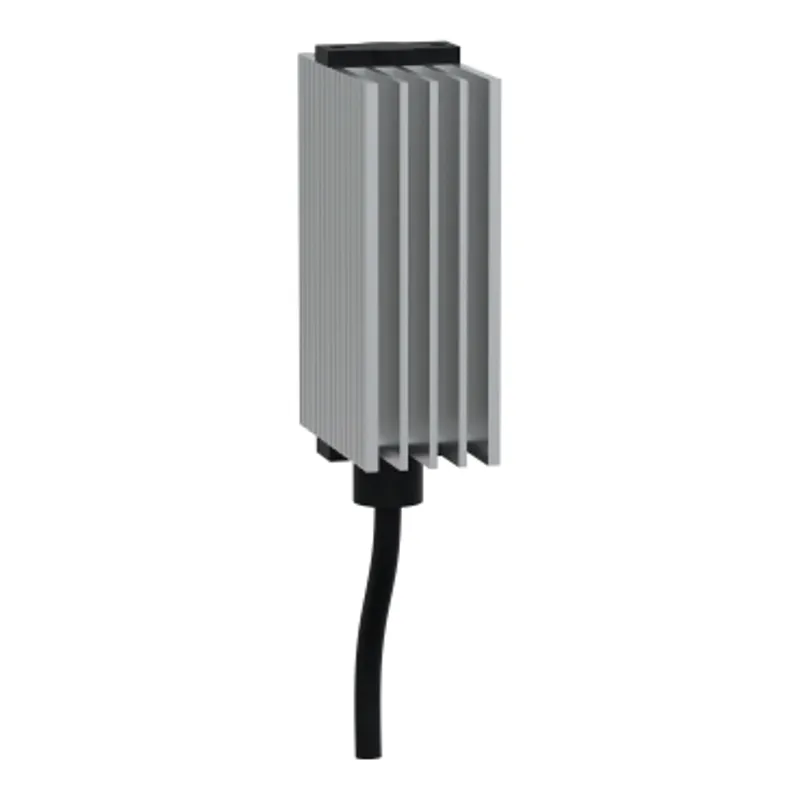

ClimaSys PTC heating resistance 20W, 12-24V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CR |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 172 kg |
Shipping & availability
When can NSYCR20WU1 be shipped?
NSYCR20WU1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR20WU1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR20WU1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR20WU1, subject to availability and destination.
Resistance heater 20W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product dimension (WxHxD) is 38 x 98 x 75mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The cable 2 x 0,75 mm² 300mm length is used for electrical connection
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 20 W |
| Input voltage | 12...24 V DC |
| Electrical connection | Cable 2 x 0.75 mm² length: 300 mm |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Condition of use | Air sealed enclosure, Heaters must be installed with a thermal controller, Electrical protection is needed |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 8.200 cm |
| Package 1 Length | 12.800 cm |
| Package 1 Weight | 172.000 g |
| Warranty | 18 months |
