Available on request

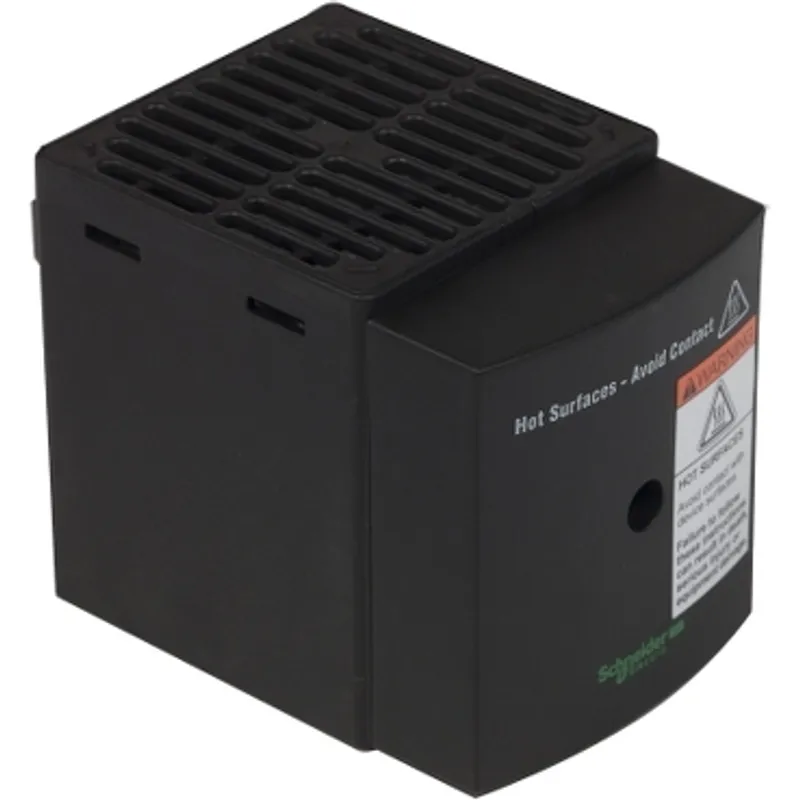

ClimaSys PTC heating resistance 177W 230V with ventilator insulate
MPN: NSYCR170W230VVC · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CR |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 356 kg |
Shipping & availability
When can NSYCR170W230VVC be shipped?
NSYCR170W230VVC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR170W230VVC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR170W230VVC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR170W230VVC, subject to availability and destination.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater with fan |
| Power range | 177 W |
| Input voltage | 230 V AC 50/60 Hz |
| Electrical connection | 2 screw terminals 2.5 mm² |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
| Product certifications | VDE, UL |
| Material | Body: extruded aluminium, Cover: plastic |
| Height | External: 75 mm |
| Width | External: 65 mm |
| Depth | External : 90 mm |
| Condition of use | Electrical protection is needed, Heaters must be installed with a thermal controller, Air sealed enclosure |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 356.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 60.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 23.000 cm |
| Package 2 Weight | 8.900 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 250 |
| Package 3 Height | 40.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 101.000 kg |
| Warranty | 18 months |
