ClimaSys PTC heating resistance 100W,270-420V insulate
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CR |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 494 kg |
Shipping & availability
When can NSYCR100WU3C be shipped?
NSYCR100WU3C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR100WU3C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR100WU3C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR100WU3C, subject to availability and destination.

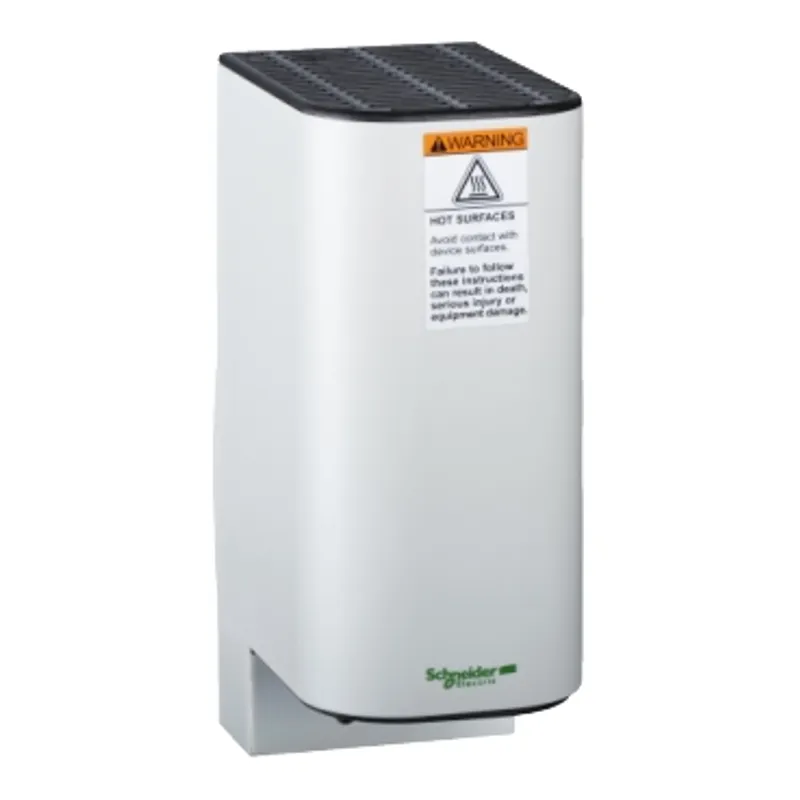

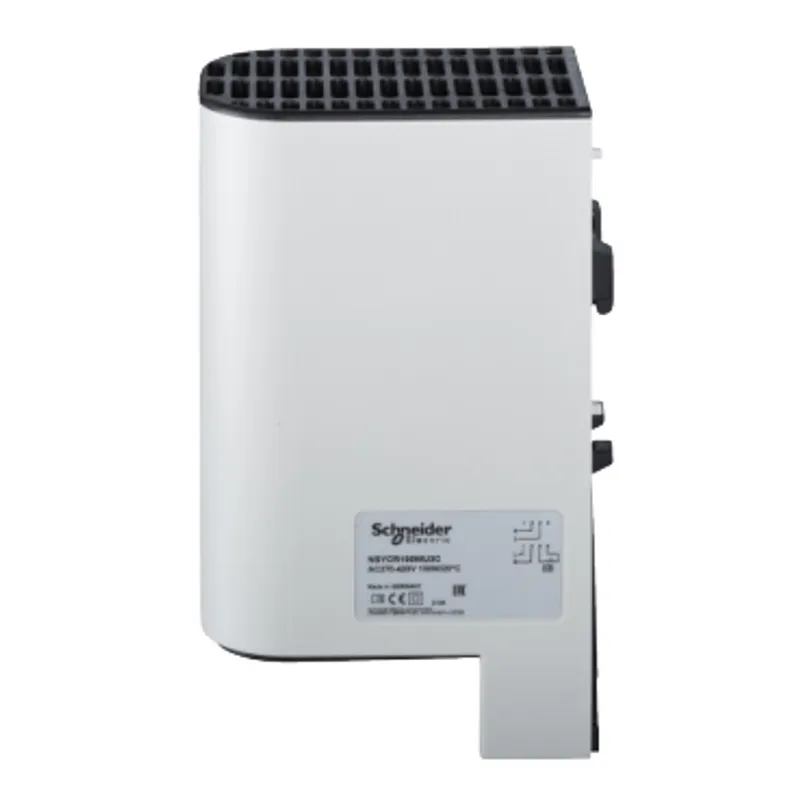

Resistance heater 100W, 270,420 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 60mm, height is 150mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 100 W |
| Input voltage | 270...420 V AC/DC 50/60 Hz |

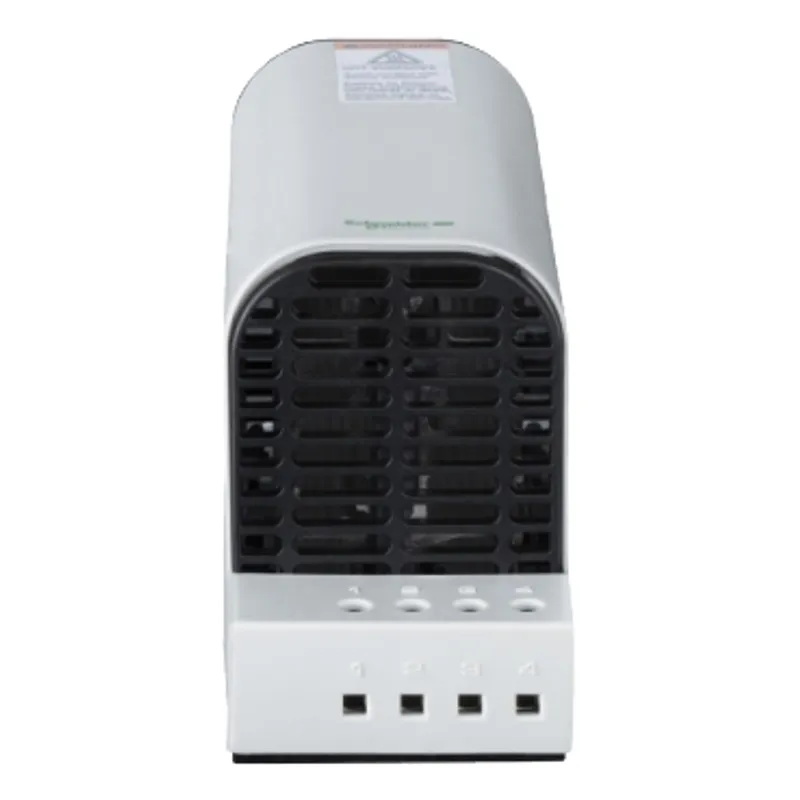

| Electrical connection | 4 screw terminals 2.5 mm² |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
| Product certifications | VDE, UL |
| Material | Body: extruded aluminium, Cover: plastic |
| Height | External: 150 mm |
| Width | External: 60 mm |
| Depth | External : 90 mm |
| Condition of use | Heaters must be installed with a thermal controller, Electrical protection is needed, Air sealed enclosure |

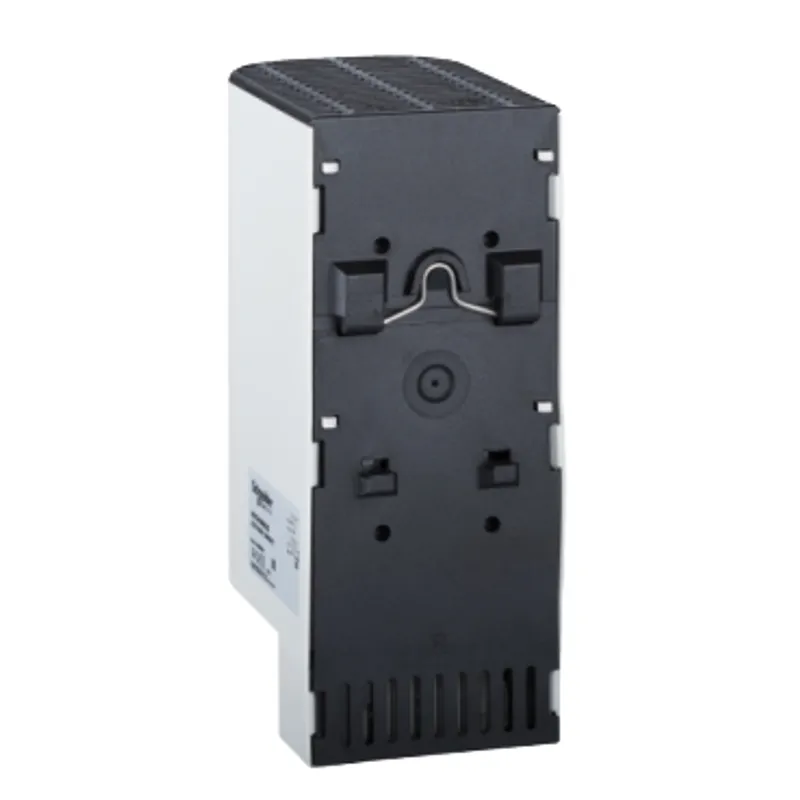

| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 494.000 g |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 115.000 kg |
| Warranty | 18 months |
