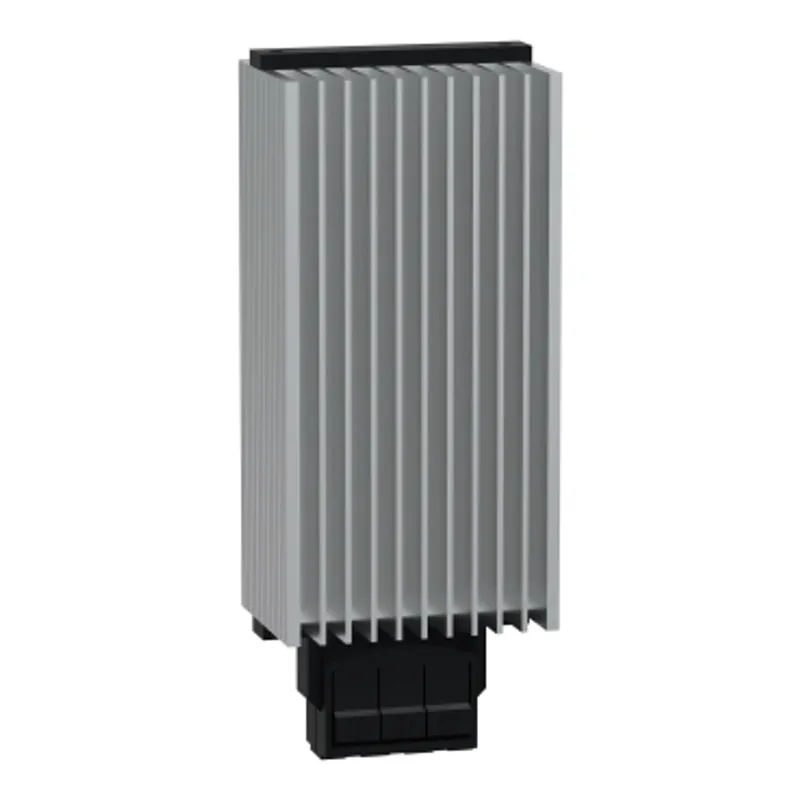

ClimaSys PTC heating resistance 100W 110-250V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CR |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 570 kg |
Shipping & availability
When can NSYCR100WU2 be shipped?
NSYCR100WU2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR100WU2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR100WU2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR100WU2, subject to availability and destination.
Resistance heater 90W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product width is 85mm, height is 200mm and depth is 65mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Lead time | Usually Ships within 4 Weeks |
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Range compatibility | Prisma P, Prisma G |
| Power range | 90 W |
| Input voltage | 110...250 V AC 50/60 Hz |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Height | 200 mm |
| Width | 85 mm |
| Depth | 65 mm |
| Condition of use | Heaters must be installed with a thermal controller, Air sealed enclosure, Electrical protection is needed |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 20.500 cm |
| Package 1 Weight | 570.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 16.000 cm |
| Package 2 Width | 34.000 cm |
| Package 2 Length | 43.000 cm |
| Package 2 Weight | 9.120 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 480 |
| Package 3 Height | 120.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 285.000 kg |
| Warranty | 18 months |
