Available on request

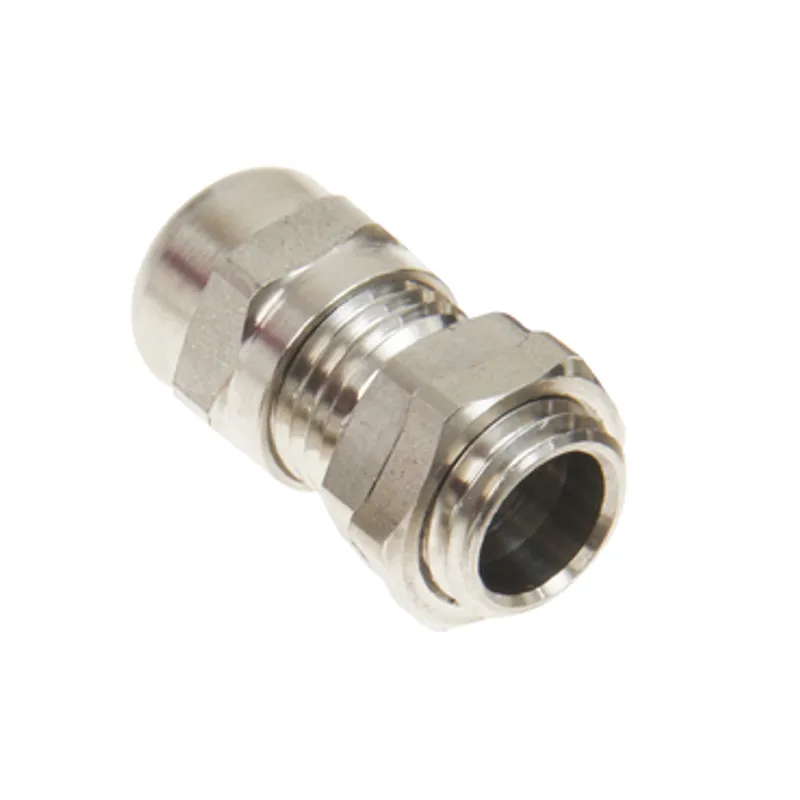

Set of cable gland + nut stainless steel M16 AISI304L, IP68, UL approved
MPN: NSYCGX16 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.02 kg |
Shipping & availability
When can NSYCGX16 be shipped?
NSYCGX16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCGX16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCGX16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCGX16, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3X |
| Mounting location | Enclosure bottom, Enclosure top |
| Cable entry | Cable gland M16 |
| Device composition | 1 cable gland, 1 lock nut, 1 seal |
| Quantity per set | Set of 5 |
| Material | Seal: CR (chloroprene), Body: stainless steel AISI 304L |
| Colour | Grey |
| Fixing mode | Screwed, By nut |
| Height | 30 mm |
| Net weight | 0.019 kg |
| Product certifications | VDE |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20…100 °C permanent, -40…150 °C intermittent |
| IP degree of protection | IP68 conforming to IEC 60529 5 bar, 30 min |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 2.000 cm |
| Package 1 Length | 3.000 cm |
| Package 1 Weight | 23.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 11.000 cm |
| Package 2 Width | 28.500 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.682 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 2400 |
| Package 3 Height | 40.700 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 79.500 kg |
| Warranty | 18 months |
