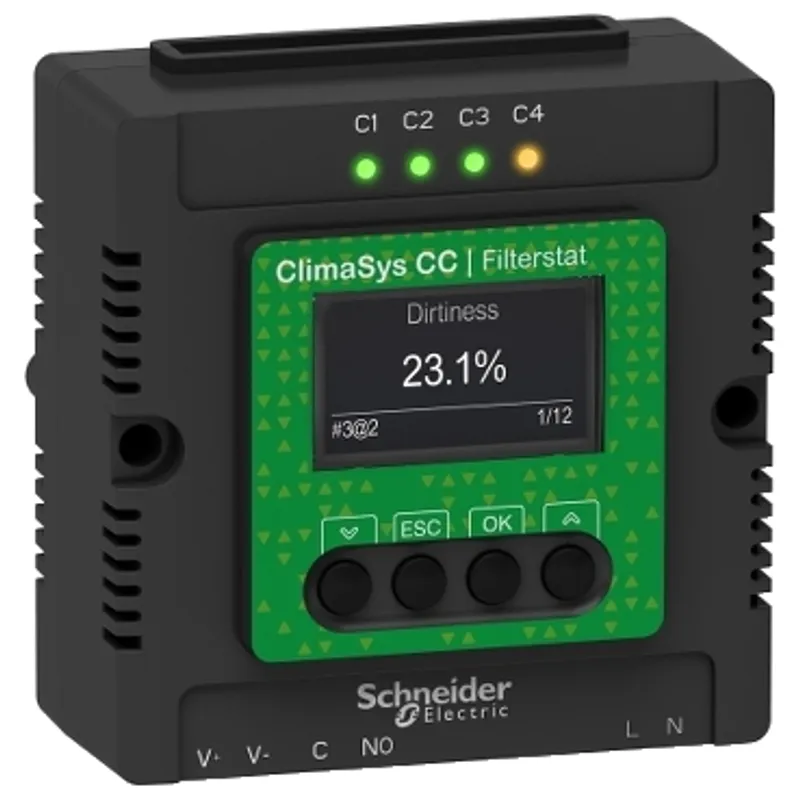

ClimaSys CC - Filterstat Controller 30V
MPN: NSYCCOFST30V · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 206 kg |
Shipping & availability
When can NSYCCOFST30V be shipped?
NSYCCOFST30V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCCOFST30V in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCCOFST30V and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCCOFST30V, subject to availability and destination.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Controller |
| Range compatibility | Spacial, PanelSeT |
| Device application | To monitor ventilation and filtering reliability by controlling dust/fan sensors, To view alarms and key value statistics of each sensor(fans and installed grids), To change settings according to sensor type |
| Device connection | Dust sensor, Fan sensor, Hub |
| Communication interface | Modbus between sensor and controller |
| Rated voltage | 20…28 V AC 50/60 Hz, 19…30 V DC |
| Display type | OLED screen |
| Display resolution | 128 x 64 pixels |
| Type of alarms | Overtemperature, Dust filter alarm, Fan lack of energy, Fan rpm slow, Fan flaps blocked, Over-temperature alarm, Lifetime over, Δt deviation, Remote device broken |
| Number of port | 4 port(s) for input signal |
| Input voltage | 15.5 V DC 150 mA |
| Control button type | 4 push-button |
| Local signalling | Channel status (busy with communication): 4 green/orange LEDs by blinking, Channel status (problem with the channel when connector is plugged): without light indicator |
| Integrated connection type | 1 relay 5 A (potential free digital output alarm indication |
| Analogue output range | 0...10 V reporting the worst filter status level on joined panels |
| Mounting support | 35 mm DIN rail, Cross rails, Enclosure door |
| Quantity per set | 1 |
| Information displayed | Filter state - 0 % filter clean/100 % filter fully obstructed (for dust sensor), Air temperature - in Celsius/Fahrenheit (for dust sensor), Remaining time to replace filter - in day (for dust sensor), Total time that filter has been changed (for dust sensor), Days since the last renew of the filter (for dust sensor), Configuration of the RGB LEDs (for dust sensor), Number of alarm activated by sensor (for dust sensor), Temperature registration - minimum and maximum (for dust sensor), Connected device identification (for dust sensor), Fan speed - in RPM (for fan sensor), Current consumption - in mA (for fan sensor), Air temperature - in Celsius/Fahrenheit (for fan sensor), Used lifetime - in hour (for fan sensor), Remaining time to replace filter - in day (for fan sensor), Energy consumed - in kWh (for fan sensor), RPM alarm setting - in RPM (for fan sensor), Temperature alarm setting - in Celsius/Fahrenheit (for fan sensor), Temperature registration - minimum and maximum (for fan sensor), Connected device identification (for fan sensor), Number of connected devices (for controller), Identification of devices connected to hub (for thermal hub) |
| Width | External: 80 mm |
| Height | External: 80 mm |
| Depth | External : 49.75 mm |
| Product certifications | CE, EAC |
| Directives | 89/336/EEC - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 206.000 g |
| Warranty | 18 months |
