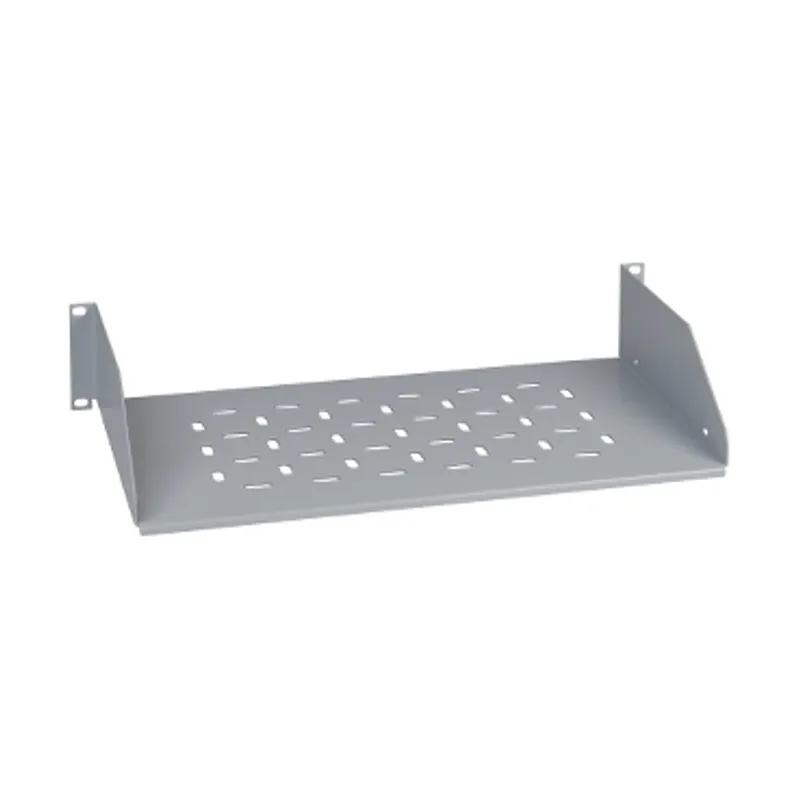

19" fixed shelf 2U on 2 uprights D250 with permissive load 20Kg
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.95 kg |
Shipping & availability
When can NSYBF2U25P be shipped?
NSYBF2U25P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBF2U25P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBF2U25P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBF2U25P, subject to availability and destination.
Fixed shelf 19" 2U for using with Actassi VDS and Actassi VDA Actassi enclosures Compatible with Spacial SF-S, SF-E, VDM, PLA enclosures Fixing to 19" rack, front or rear by 19" fixing element Can be used for multi-purpose and electronic applications
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | Fixed shelf |
| Accessory / separate part type | Fixed perforated shelf |
| Device application | Multi-purpose, Electronic application |
| Colour | Grey (RAL 7035) |
| Range compatibility | Actassi VDS, Actassi VDA |
| Material | Sheet steel |
| Surface finish | Epoxy-polyester powder |
| Mounting support | 19" rack, front or rear |
| Product compatibility | PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
| Fixing mode | By 19" fixing element: 19" uprights of rack |
| Number of rack unit | 2U |
| Permanent permissible load | 20 kg |
| thickness | 5 mm |
| Number of units 19" | 2 |
| Height | 88.9 mm |
| Width | 465 mm |
| Depth | 250 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 25.500 cm |
| Package 1 Length | 51.000 cm |
| Package 1 Weight | 1.952 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 94.000 cm |
| Package 2 Width | 102.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 131.600 kg |
| Warranty | 18 months |
