Setting support 500 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SF |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.15 kg |
Shipping & availability
When can NSYAS500 be shipped?
NSYAS500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAS500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAS500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAS500, subject to availability and destination.

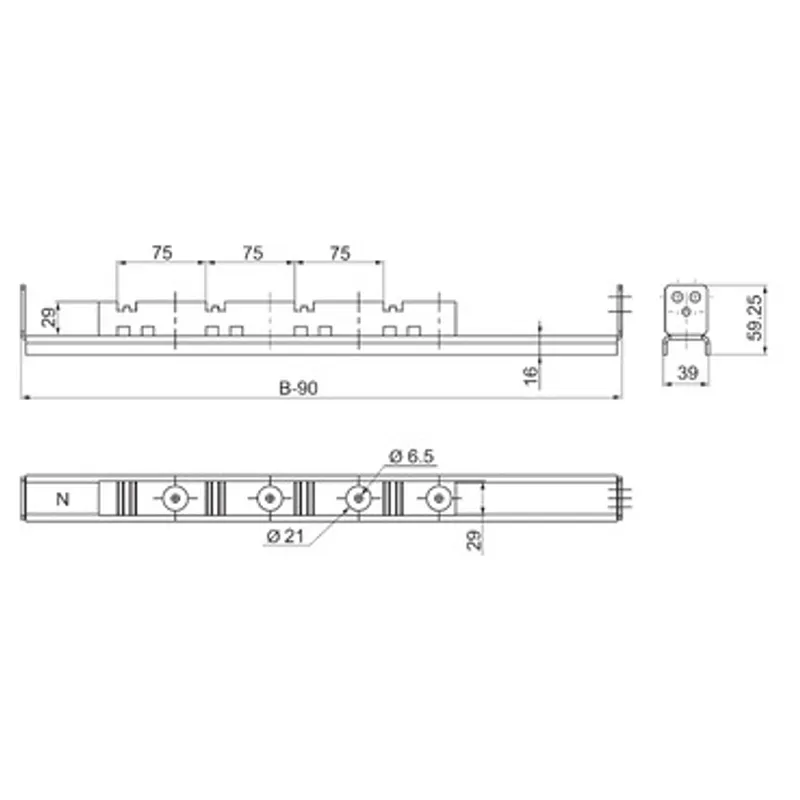

Bar support used for Prisma and multi-purpose application in Spacial SF, Linergy LGYE, Linergy BS, Spacial SFP and Prisma PH enclosures The bar support fixing centers width is 450mm and nominal width is 500mm The height is 66mm The depth is 39mm Busbar distance is 75mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Support accessory |
| Product or component type | Bar support |
| Anwendung | Prisma application, Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Bottom |
| Busbar position | Vertical |
| Range compatibility | PanelSeT PanelSeT SF, Linergy Linergy LGYE, Linergy Linergy BS, Prisma Prisma PH |
| Cubicle-device connection | Linergy LGYE lateral busbar, Linergy BS lateral busbar |

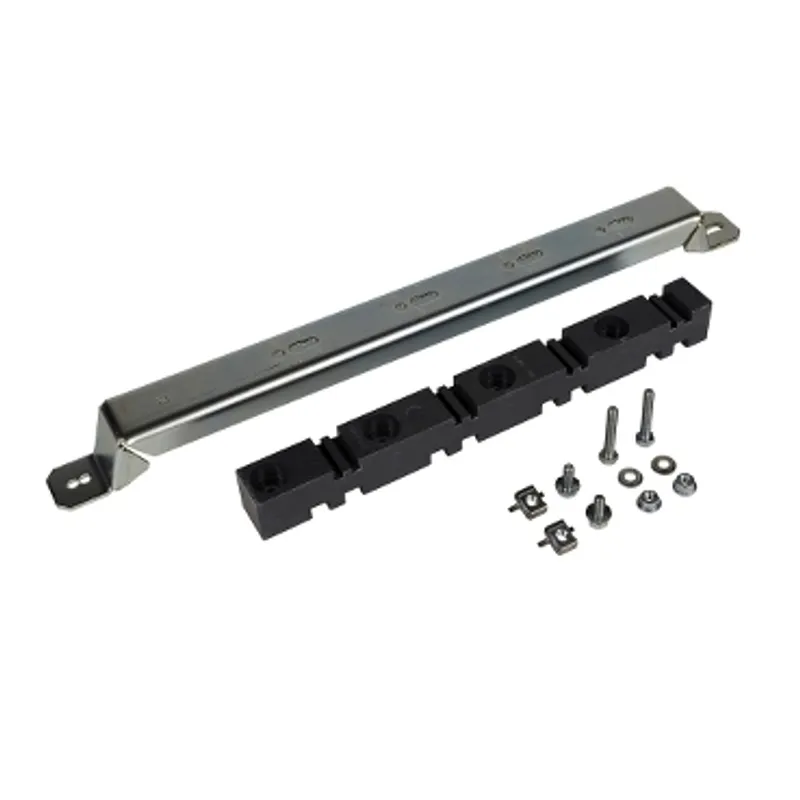

| Device composition | Fixing elements, 1 insulating bar support, 1 metal support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element - bottom frame of enclosure location |
| Height | 66 mm |
| Width | Fixing centers: 450 mm, Nominal: 500 mm |
| Depth | 39 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 1.148 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 22.960 kg |
| Coverage | Core product |
| Warranty | 18 months |
