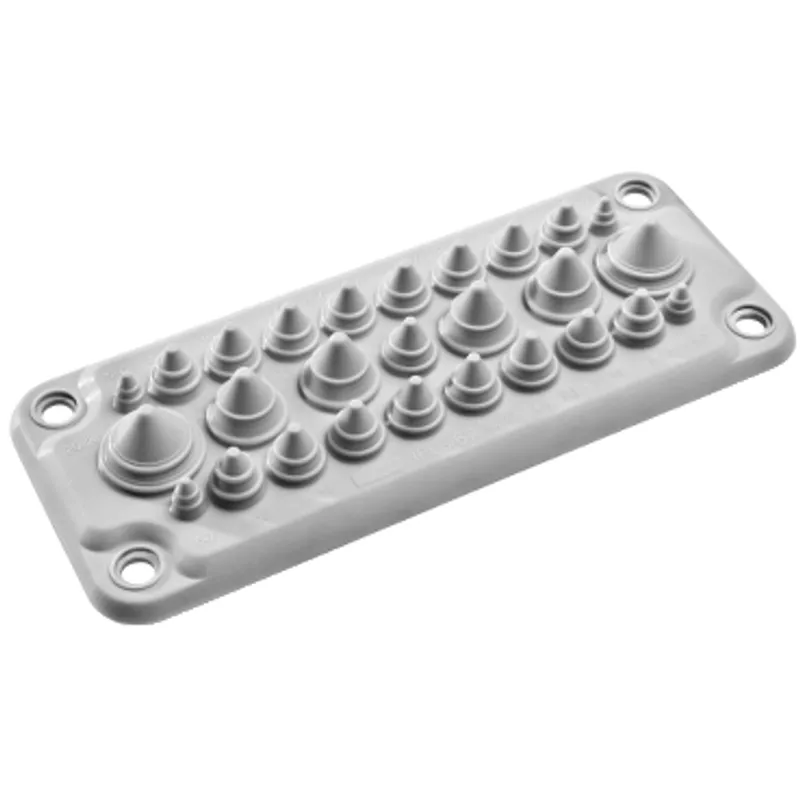

Cable entry membrane, PanelSeT, PanelSeT, type FL21 with 25 entrances IP66
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SF |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.32 kg |
Shipping & availability
When can NSYAECPFLT25 be shipped?
NSYAECPFLT25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAECPFLT25 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAECPFLT25 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAECPFLT25, subject to availability and destination.
Spacial - Cable entry membrane type FL21 with 27 entrances IP66 The product is made from grey TPE (thermoplastic elastomer) (RAL 7035) Fixed on cable gland plate The cable entry membrane has 25 cable entries The external width is 214mm and fixing center width is 194mm The height is 30mm The fixing center depth is 62mm and external depth is 88mm The kit is made up of 1 membrane and 1 fixing elements Ambient air temperature for operation -40-100 °C
Specifications
Specifications
| Lead time | Usually Ships within 4 Weeks |
| Range | PanelSeT |
| Product or component type | Cable entry membrane |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D compact enclosure, PanelSeT CRN compact enclosure, PanelSeT SF suitable enclosure |
| Device composition | 1 membrane, 1 fixing elements |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate |
| Material | TPE (thermoplastic elastomer) |
| Fixing mode | By fixing element |
| Total cable entry number | 25 |
| Cable entry number | 4 x 5…7 mm, 4 x 8…12 mm, 4 x 14…20 mm, 12 x 10…14 mm, 1 x 20…26 mm |
| Height | 30 mm |
| Width | External: 214 mm, Fixing center: 194 mm |
| Depth | Fixing center : 62 mm, External : 88 mm |
| Colour | Grey (RAL 7035) |
| Net weight | 0.32 kg |
| IP degree of protection | IP66 |
| Flame retardance | V0 conforming to UL 94 |
| Ambient air temperature for operation | -40…100 °C |
| Environmental characteristic | Oil resistant conforming to UL 157 FIMKO, UV resistant, Weatherproof, Fire resistance conforming to UL 94 V0 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 22.000 cm |
| Package 1 Weight | 302.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 30.000 cm |
| Package 2 Weight | 6.342 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 72.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 127.000 kg |
| Warranty | 18 months |
